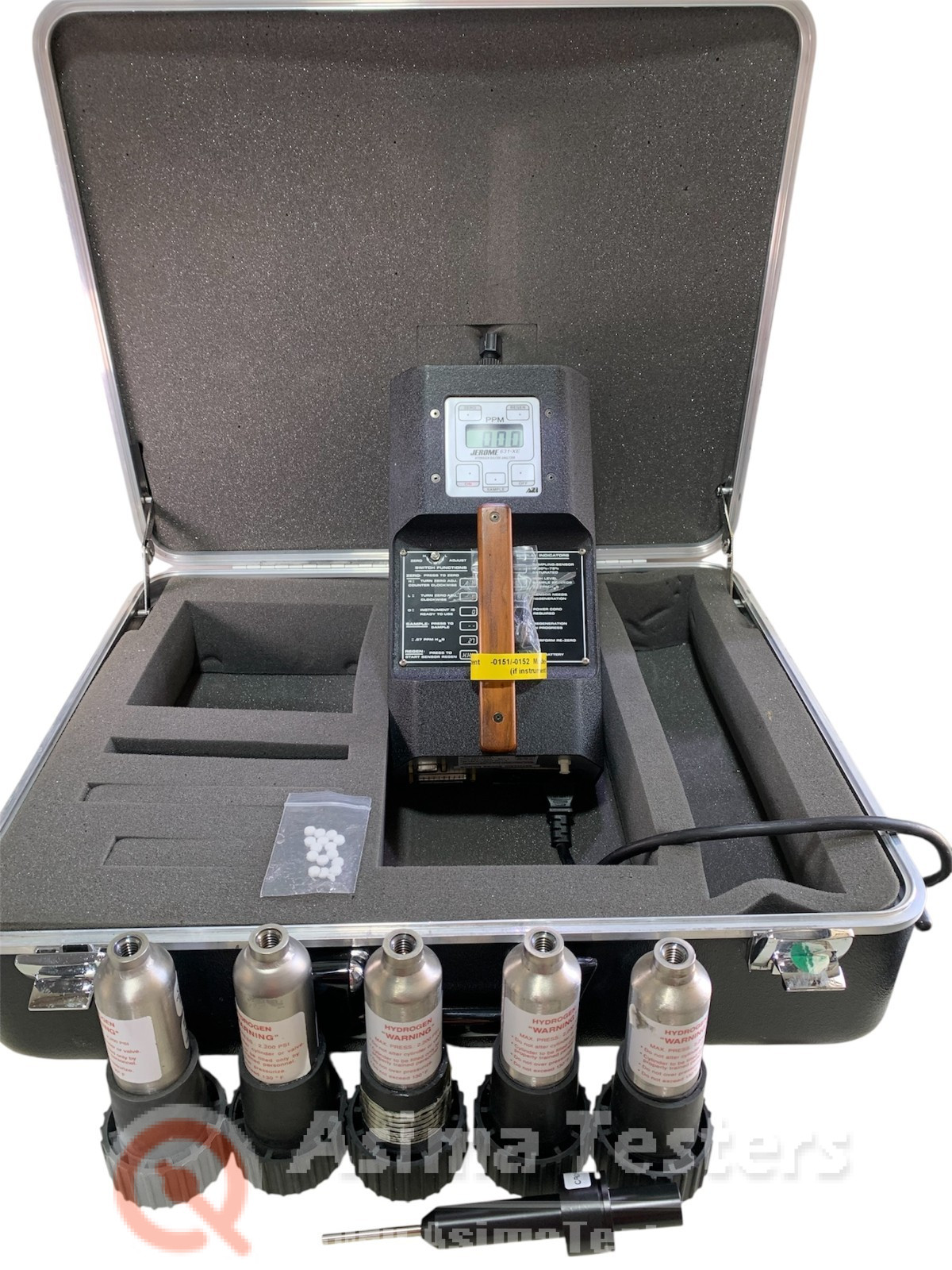

Jerome 631-Xe Hydrogen Sulfide Analyzer

Product Description

ON SALE Jerome 631-Xe Hydrogen Sulfide Analyzer Portable H₂S Detector. This unit used but GREAT condition not damage and excellent working.

Technical Specifications

• Detection Range : 0.003 ppm to 50 ppm
• Resolution : 0.001 ppm (range dependent)
• Accuracy : Range 0: ±0.003 ppm at 0.050 ppm; Range 1: ±0.03 ppm at 0.50 ppm; Range 2: ±0.3 ppm at 5.0 ppm; Range 3: ±2 ppm at 25 ppm
• Response Time : Survey Mode: 3-20 seconds; Sample Mode: 12-30 seconds
• Sensor Technology : Patented gold film sensor, selective to H₂S, eliminating interference from SO₂, CO₂, CO, and water vapors
• Flow Rate : 150 ± 10 mL/min
• Power Requirements :220-240 VAC, 50/60 Hz, 1A (for CE version) or 100-120 VAC, 50/60 Hz, 1A
• Battery : Rechargeable NiCad (approx. 6-hour life, 14-hour charge time)
• Operating Environment : 0°C to 40°C, non-condensing, non-explosive
• Dimensions (XE Model) : 14″ L x 7″ W x 7″ H (35 cm L x 18 cm W x 18 cm H)
• Weight (XE Model) : 8 lbs (3.5 kg)
• Output : RS-232 Serial Port and 4-20 mA analog passive current loop
• Certifications : CE Mark for the 220-240 VAC model only
