Used ABB CB-2000 ABB Capacitance meters For Sale

Product Description

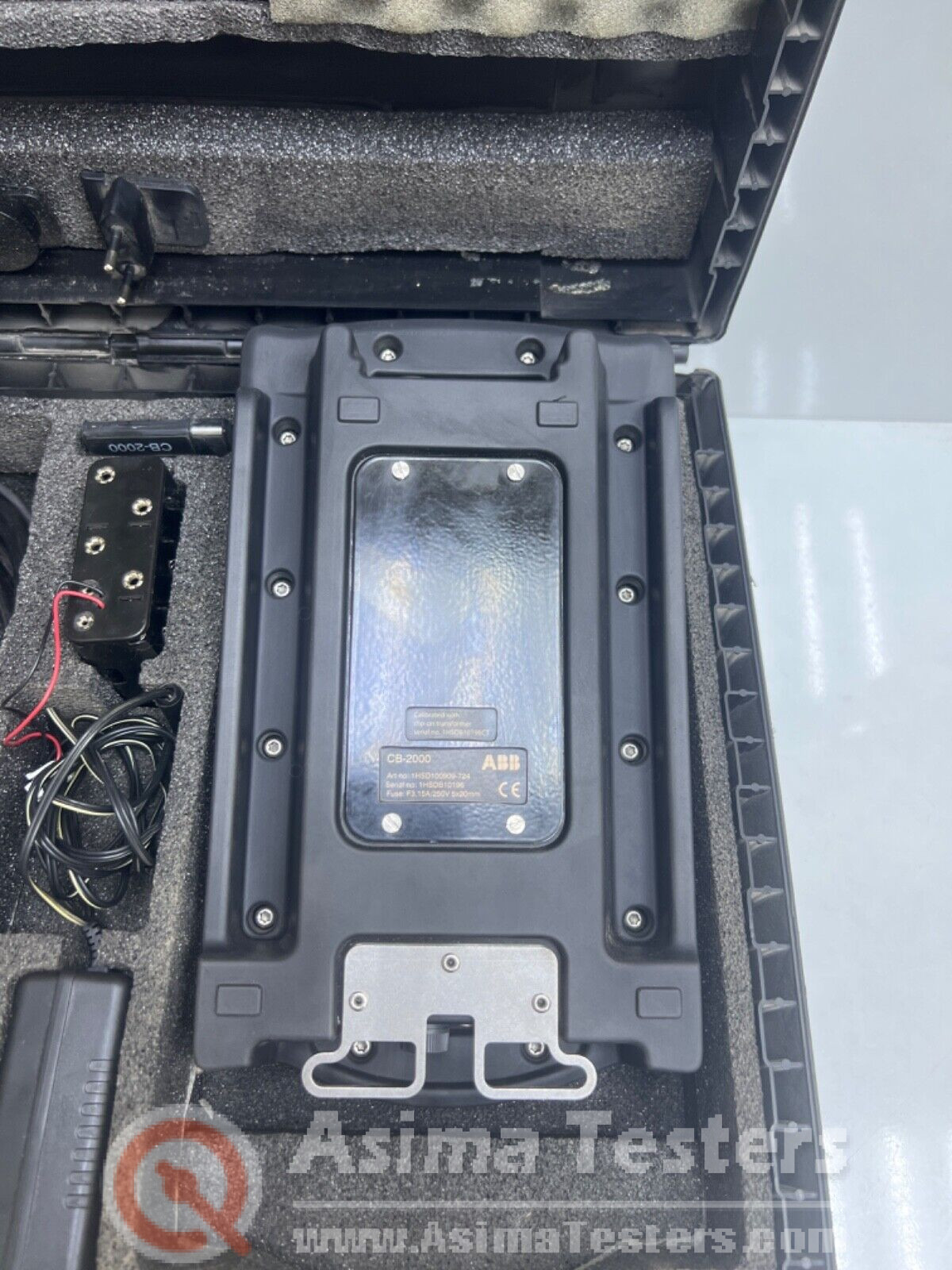

Used ABB CB-2000 ABB Portable Capacitance meters

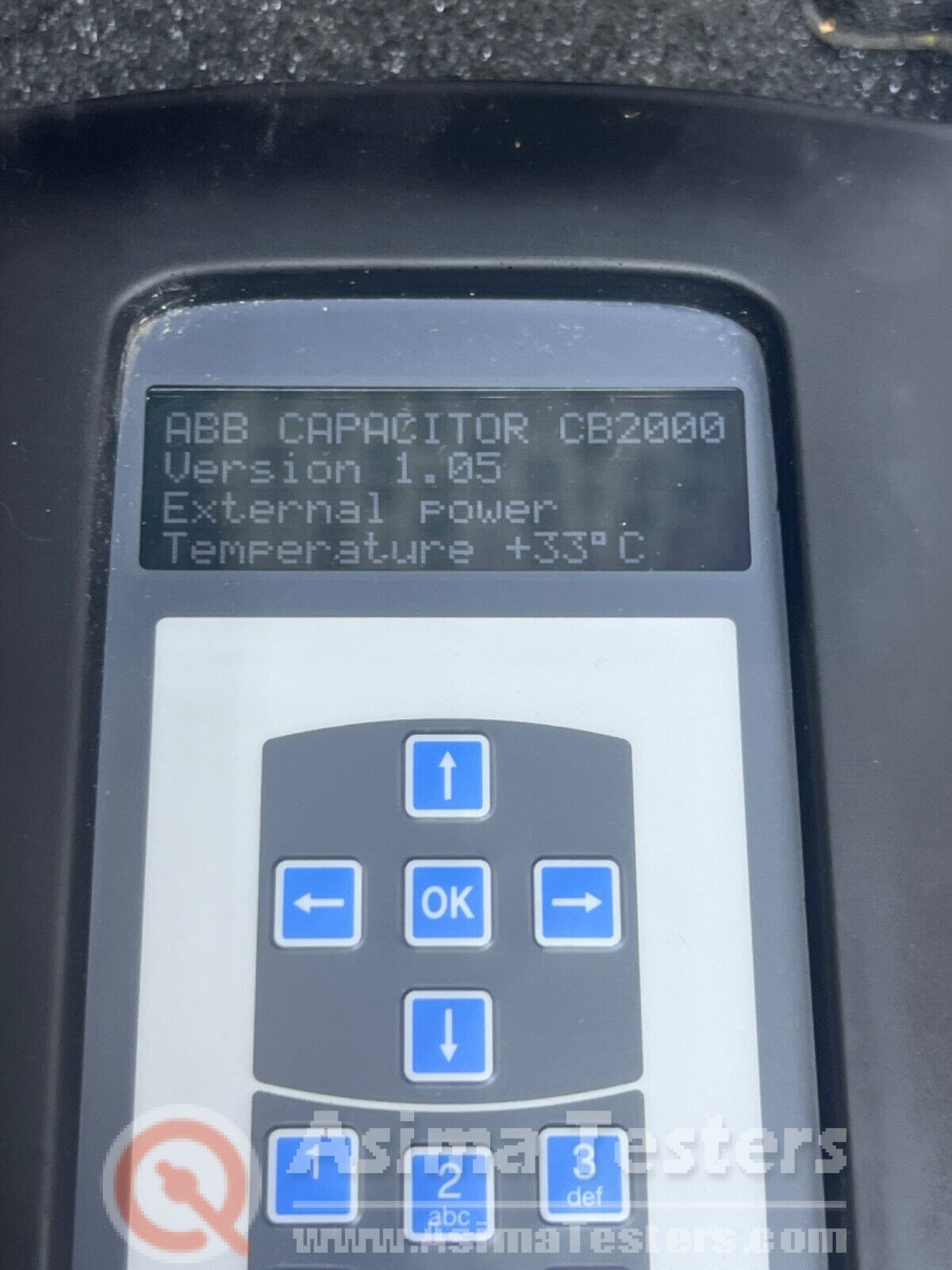

The CB-2000 is easy to operate, and the measured values are displayed clearly on the LCD screen, which can be seen in both bright and dark conditions. The CB-2000 allows for the quick and easy measurement of even large capacitor banks because it does not require any internal disconnections within the capacitor bank.

After the measurement readings have been acquired, they can be simply uploaded to a computer for storage and analysis via a USB cable. The values that are kept on the PC can be readily transferred back to the meter, so that they are available when new measurements are taken. The CB-2000 comes with the required software and drivers.

Why Hitachi Energy?

This measurement instrument, which is simple to use, was developed by Hitachi Energy as a consequence of their extensive knowledge with capacitor technology. It enables for the efficient testing and analysis of capacitors.

An important aspect of the routine upkeep of capacitor banks is measuring their capacitance. The CB-2000 makes it possible to rapidly and easily measure even huge capacitor banks, as there is no need to detach anything inside the capacitor bank.

Measurement data:

• Measuring range: 0 – 1000 μF
• Measurement accuracy: ± 1.0%
• Maximum load: 2000 μF
• Test voltage: 1.1 – 1.4 VAC pk – pk, 40 – 160 Hz
• Weight (CB-2000): 2.4 kg
• Operating time: More than 8 hours

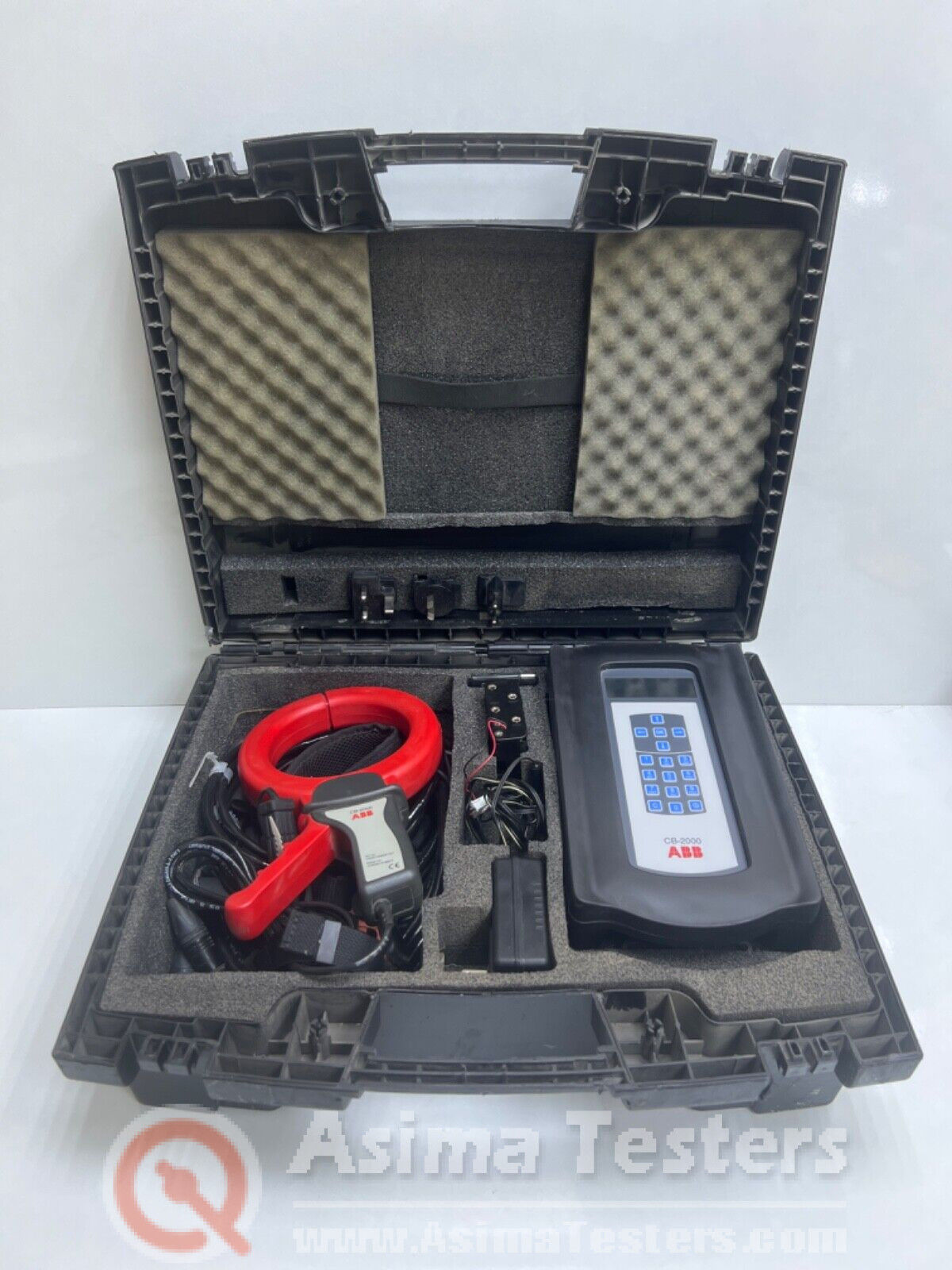

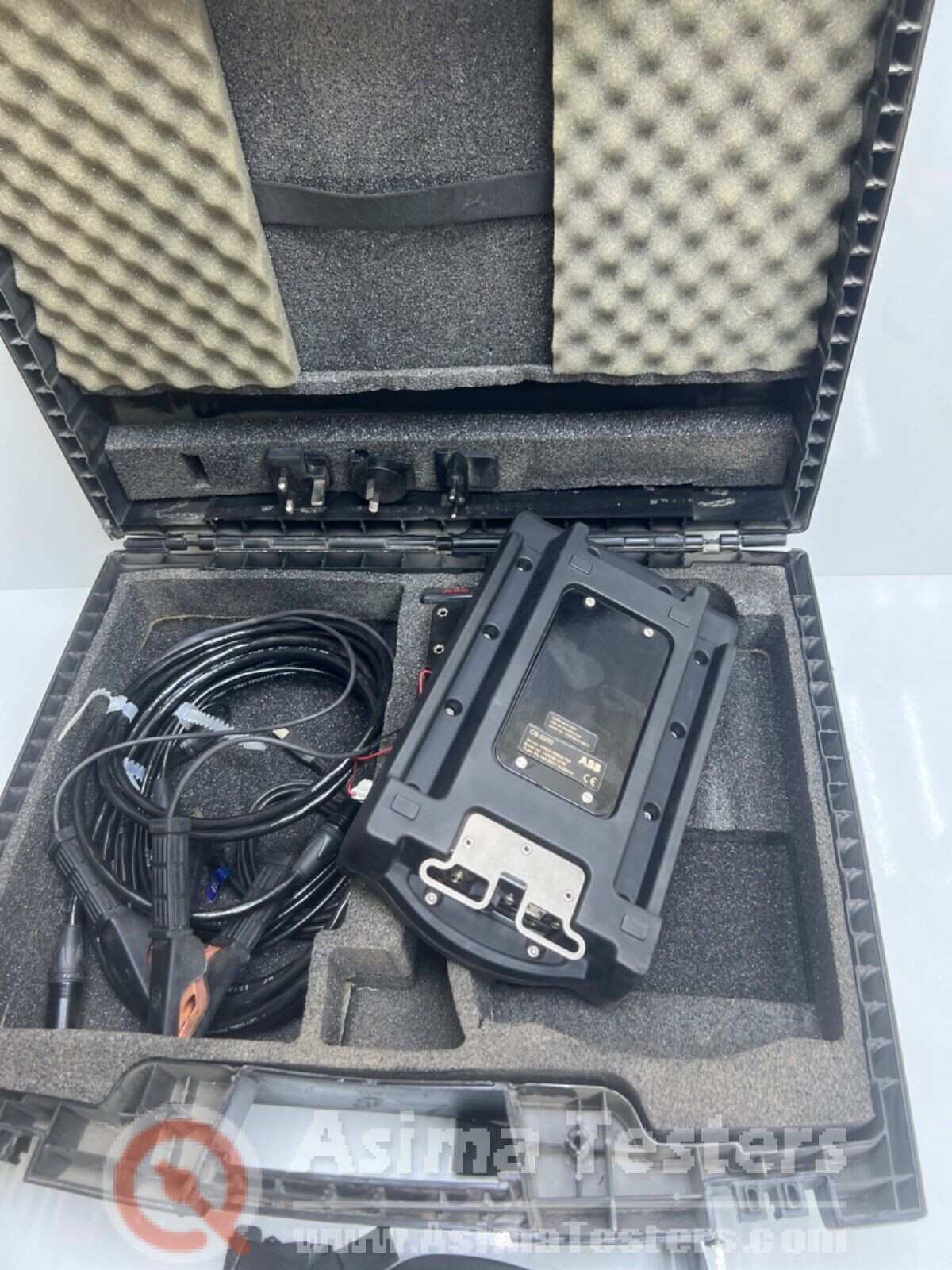

Included:

• Power adapter
• Rechargeable NiMH battery pack
• Clip-on transformer
• Voltage clips are all included
• Additional battery holder
• Software-equipped USB stick

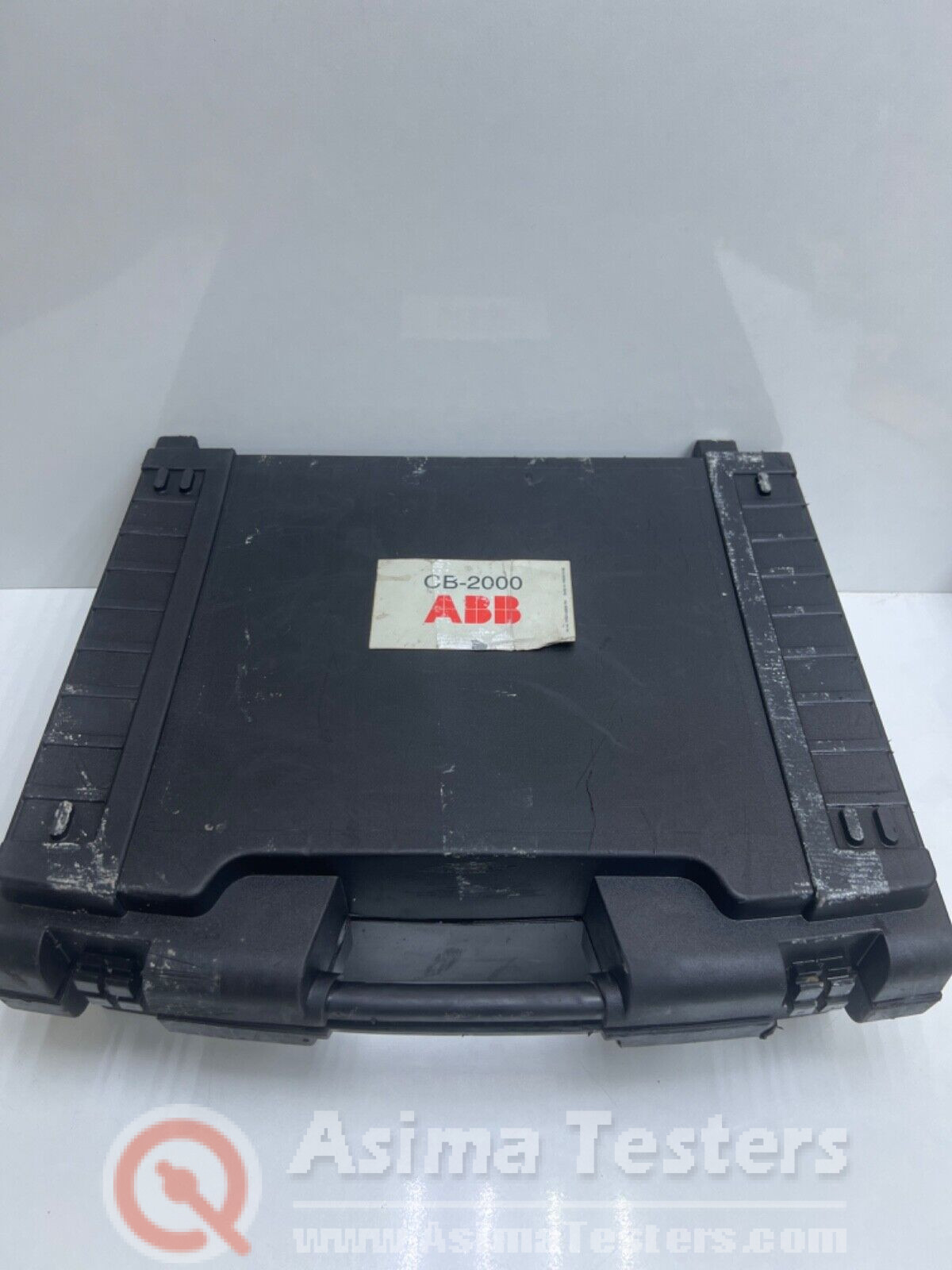

• Casing and hand
