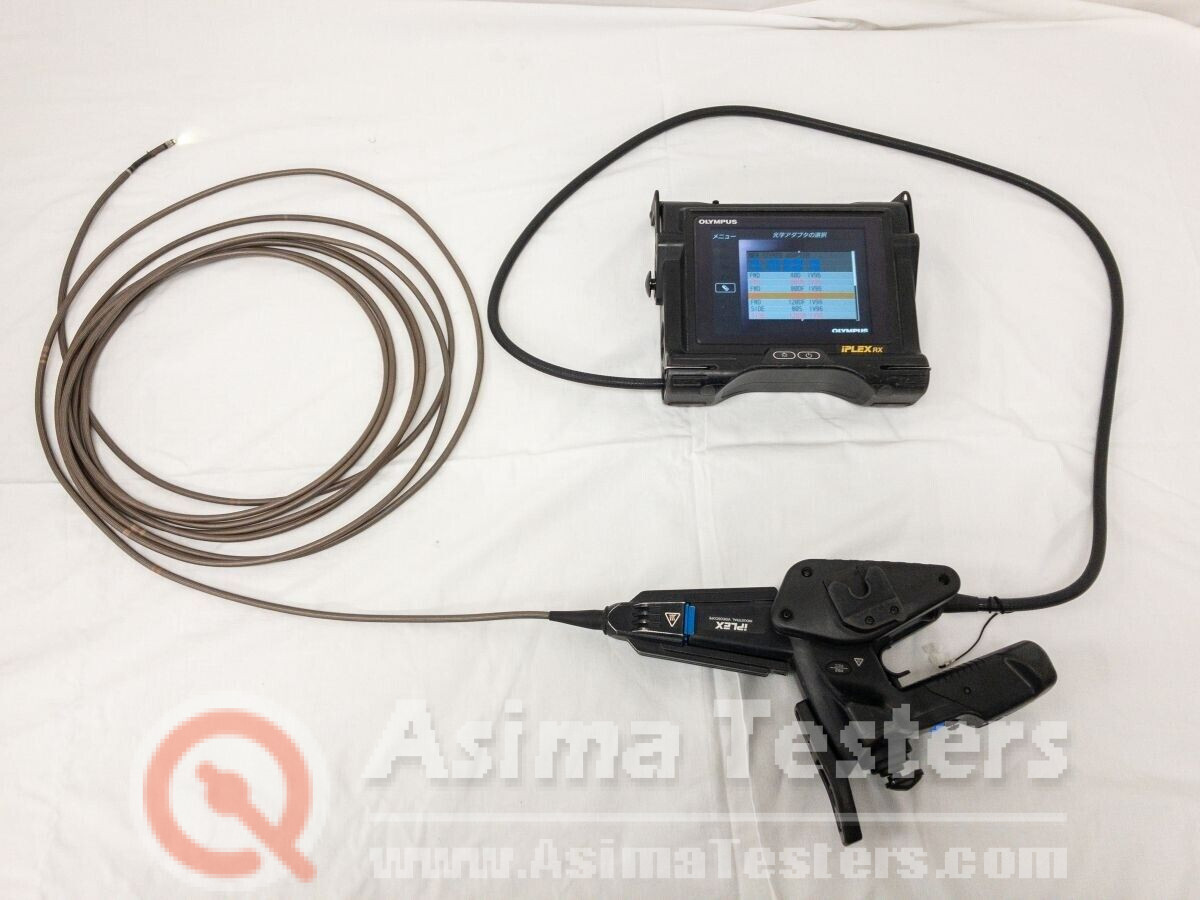

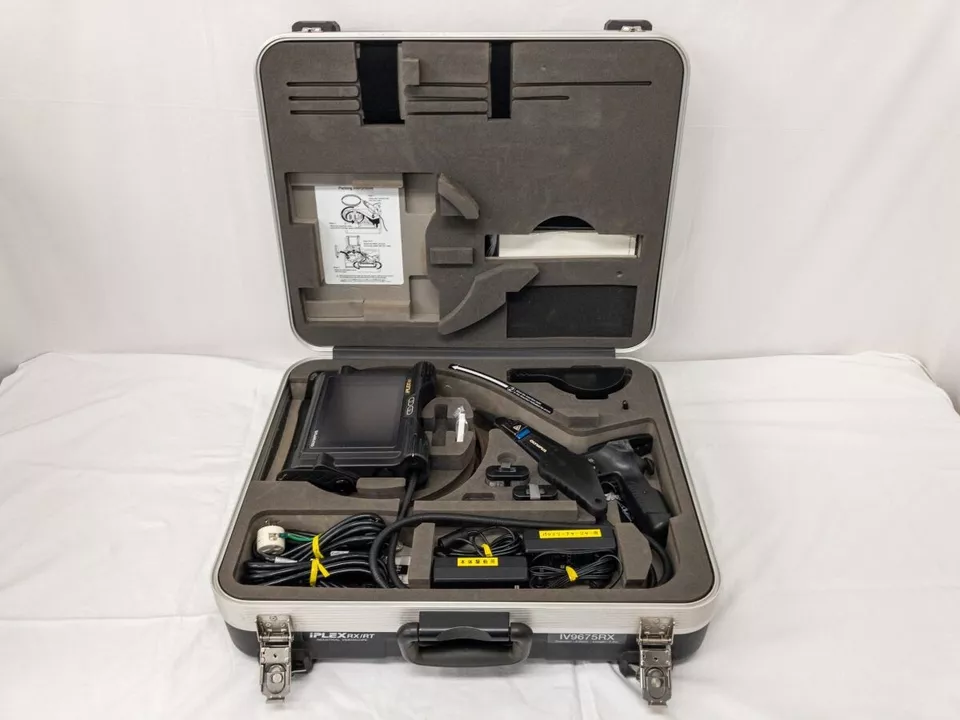

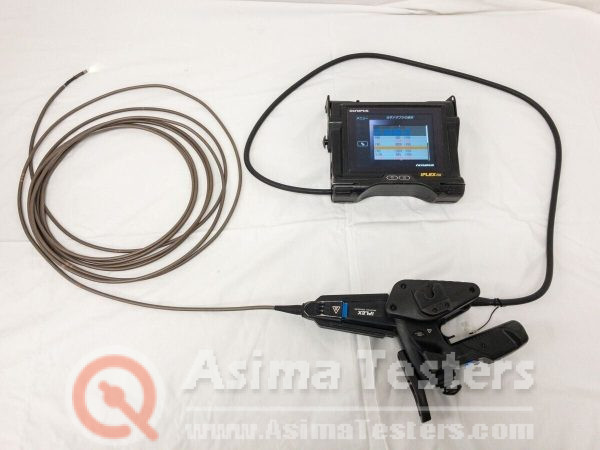

Olympus IPLEX RX IV9675RX Industrial Inspection VideoScope Borescope

Product Description

Olympus IPLEX RX IV9675RX Industrial Inspection VideoScope Borescope
The IPLEX RX is characterized by its user-friendliness, its small size, and its unrivaled image quality. These videoscopes are ideal for inspectors that require inspections that are precise and do not compromise on quality.

Rugged and Durable

• Heavy-duty system that complies with MIL-STD and IP55
• An insertion tube with high toughness that may withstand crushing and wear
• An insertion tube with a temperature alarm that can tolerate temperatures of up to 212°F and 100°C

Advanced Functionality

• Better Stereo Measurement* for impartial examinations
• Effective inspection work is made possible by the PDF display function*.
• All processes, from inspection to report preparation, can be streamlined with InHelp software.

Quick and Easy Operation
The lightweight phone’s dedicated Quick Access keys make it easy to access the most commonly used features, such as picture editing, recording, and scope articulation. The menu setting of the IPLEX RX has been simplified for ease of use and speed.

User‐friendly Menu Icons
All of the menus on the IPLEX RX are displayed using clearly understood icons. An inspector can easily identify the menus and handle the necessary function or configuration in a short amount of time.

• Scope diameter φ6.0mm,Scope length 7.5m
• Extremely resilient tungsten braid

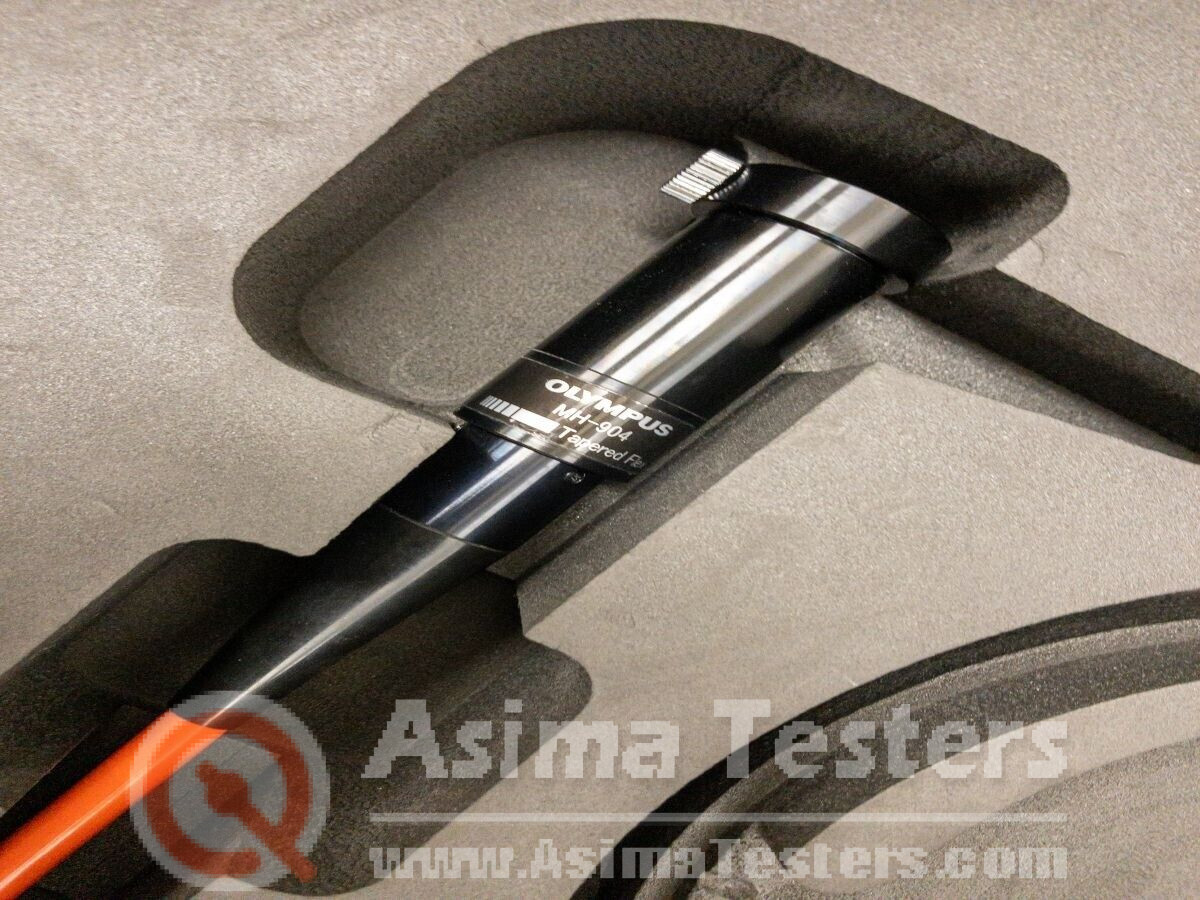

• The tapered Flex tube’s articulation angle is 100° up/down/right/left, and its flexibility gradually increases toward the distal end.
• Depth of field 19 to ∞mm
• 6.5 in. daylight-view LCD
• USB connector: Type A connector, according to Version 2.0 specifications
• Video output standard:VGA

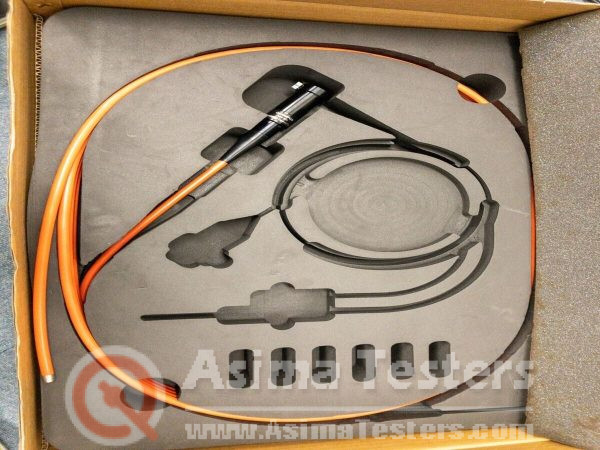

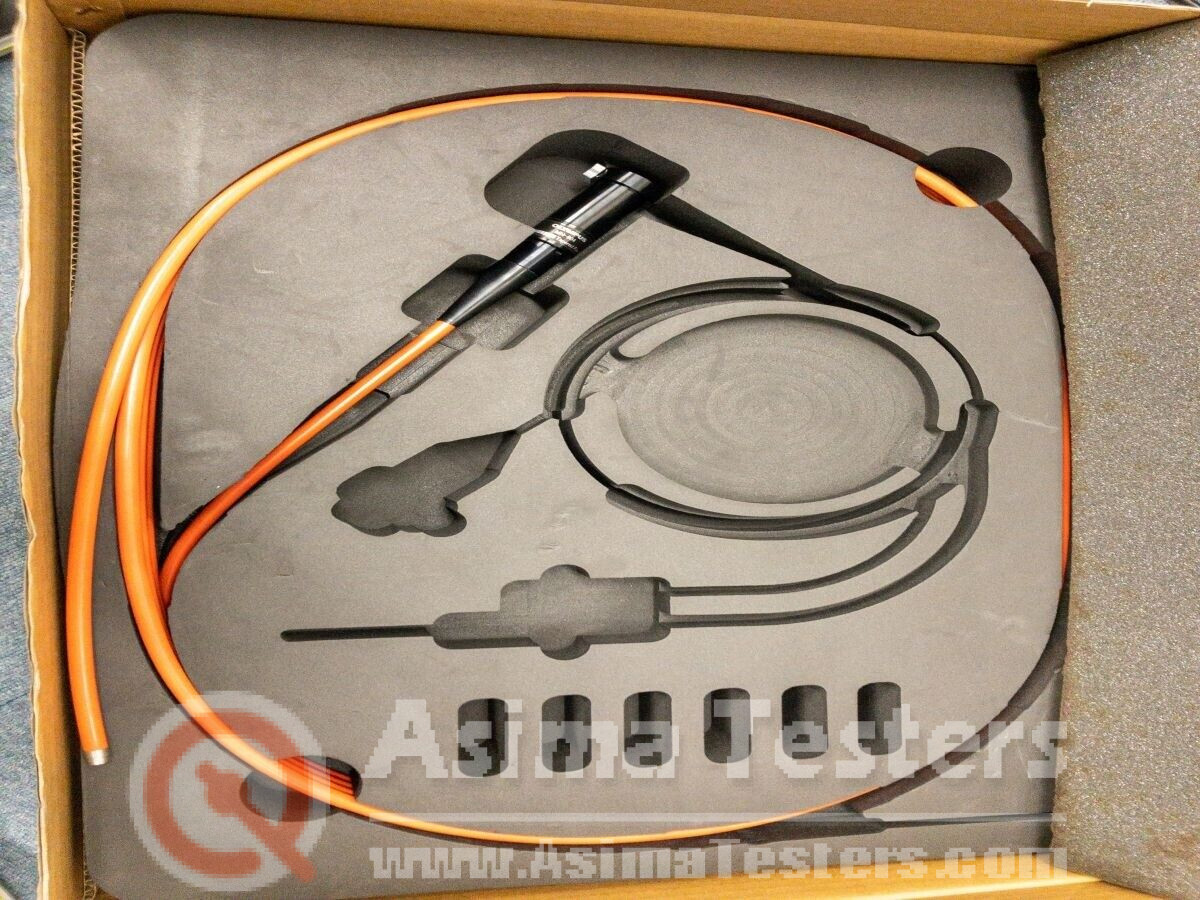

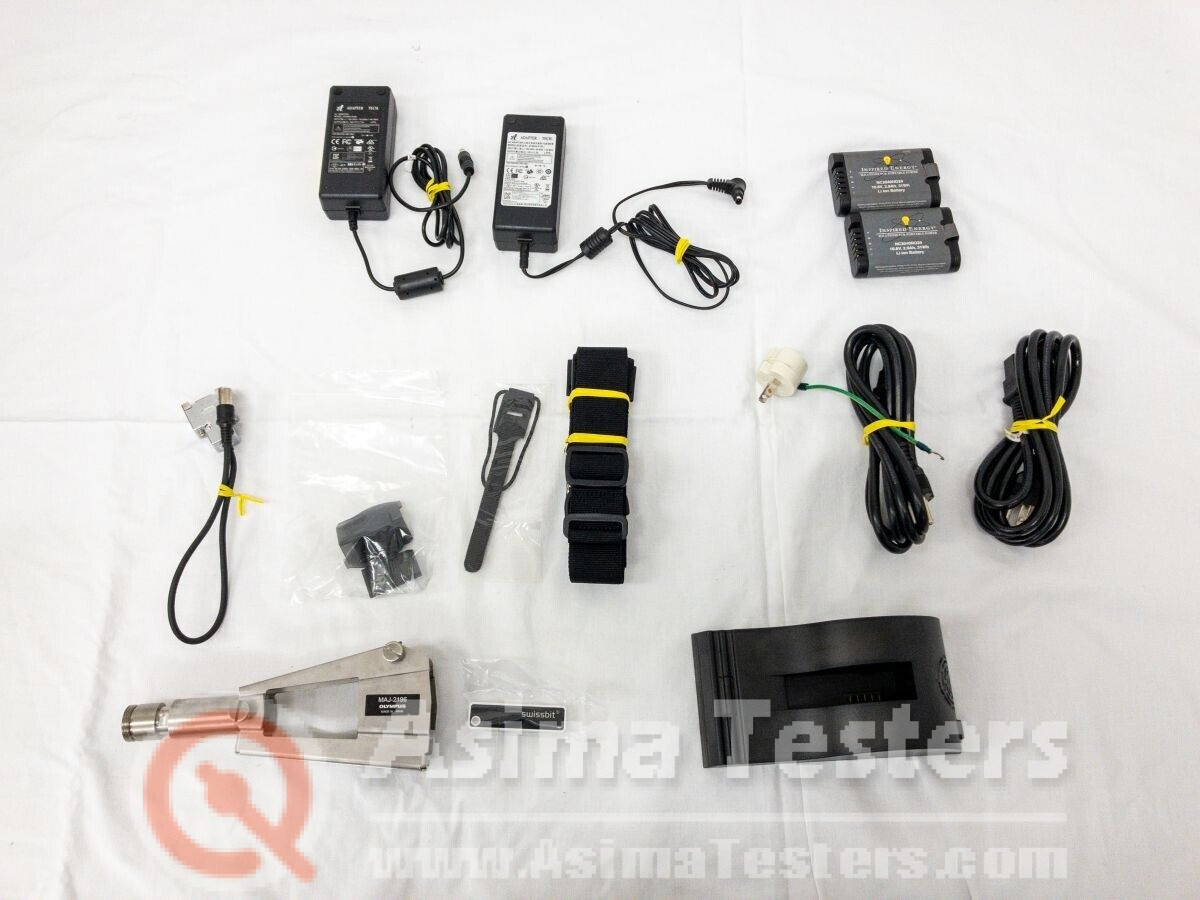

The following are included: 100S-IV76 AT220D-IV76, NF-IV96 AT120S, FF-IV96 AT120S, NF-IV96 AT100D, AT120D and 60-Days Warranty.
