Olympus EPOCH 650 Ultrasonic Flaw Detector – ALL SOFTWARE OPTIONS FULLY LOADED

Product Description

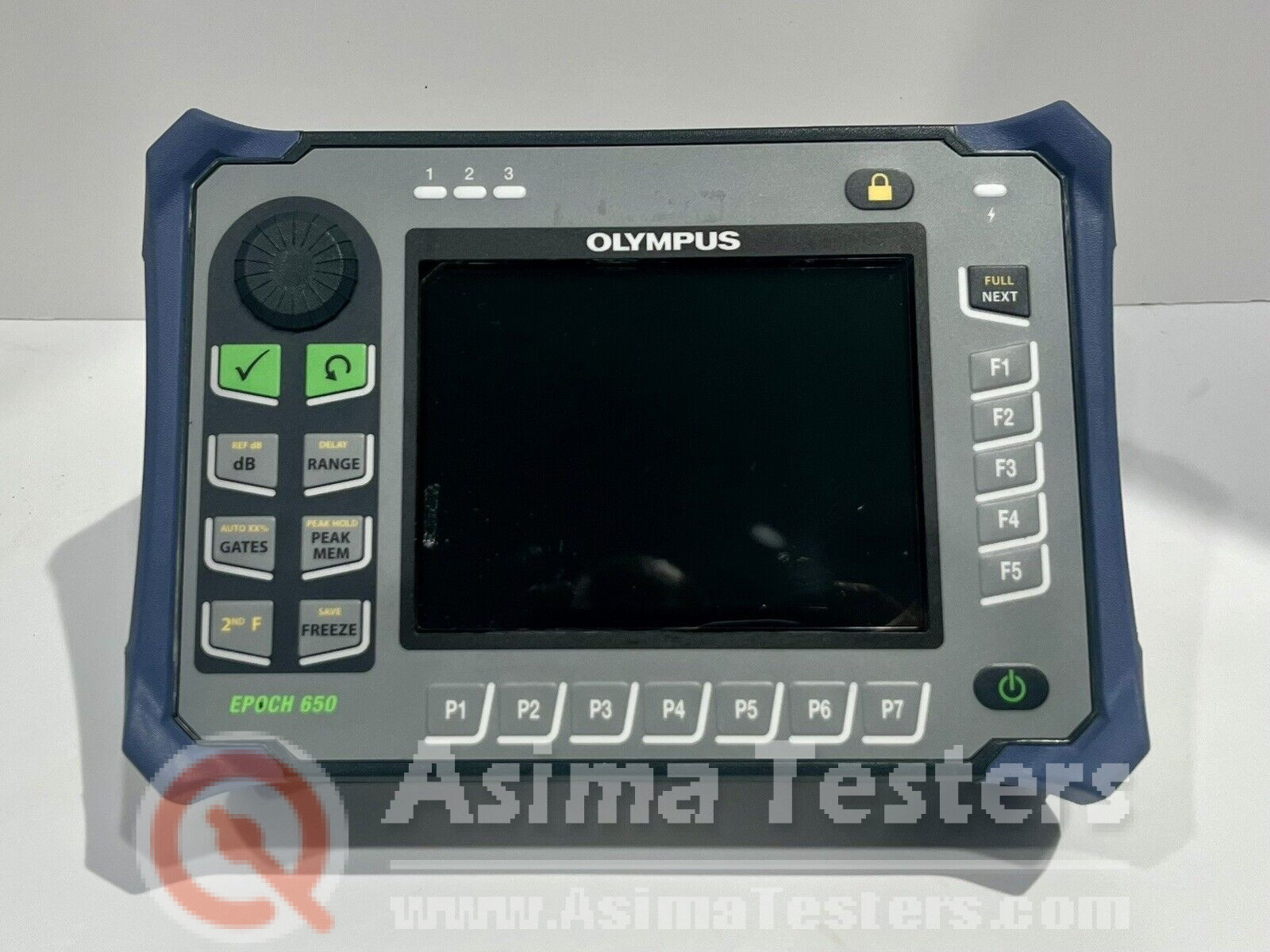

Olympus EPOCH 650 Ultrasonic Flaw Detector
The EPOCH 650 is designed for use in nearly any test environment, from laboratory testing to extreme outdoor and hazardous conditions. The EPOCH 650 is designed for IP protection in rotary knob (IP66) or navigation pad (IP67) configurations and is tested to the highest environmental and reliability standards, meaning users can be confident in the performance and durability of the equipment in any test environment.

Key Features:

• Dual and single element transducer compatibility
• Wide thickness range: 0.08 mm (0.003 in.) to 635 mm (25 in.) depending on material and transducer selection
• Corrosion thickness gaging with dual element transducers
• THRU-COAT® and Echo-to-Echo measurements on painted and coated surfaces
• Internal Oxide/Scale software option
• Standard resolution of 0.01 mm or 0.001 in. for all transducers
• High Resolution software option of 0.001 mm or 0.0001 in. with single element transducers 2.25 MHz to 30 MHz
• Multilayer software option for measurements of up to four layers simultaneously
• High Penetration software option for attenuating materials such as fiberglass, rubber and thick casting
• Thickness, Velocity, and time-of-flight measurements
• Differential mode and Reduction Rate mode
• Time-based B-scan mode; 10,000 reviewable readings per scan
• Olympus High Dynamic Gain technology with digital filters
• V-Path Builder for custom V-path compensation
• Designed for EN15317

Gate: This optional third measurement gate enables real-time tracking of a variable interface echo in order to maintain consistent digital measurements.

Corrosion Module: Simplified corrosion mode enabling automatic ultrasonic setups based on transducer selection, Automatic Gain Control (AGC), thickness gage measurement algorithm, V-path correction, and transducer wear compensation using an automatic zero function (“Do Zero”). Also features color-coded grid view and encoded B-scan.

Template Storage: Enables on-screen comparison of a live waveform with a saved reference waveform. Saved templates can be dynamically toggled on and off with a single key press for fast waveform comparison. Excellent for spot-weld analysis and other applications.

Backwall Echo Attenuator (BEA): Attenuates the backwall of an inspected part using the screen region defined by Gate 2.

API 5UE: Allows defect sizing according to API Recommended Practice 5UE. Uses the Amplitude Distance Differential Technique (ADDT) to measure the size of potential defects during the prove-up process of OCTG pipe.

Waveform Averaging: This feature allows live A-scan averaging 2X, 4X, 8X, 16X, and 32X.

Includes:

• Transit Case
• AC Charger
• Power Cord

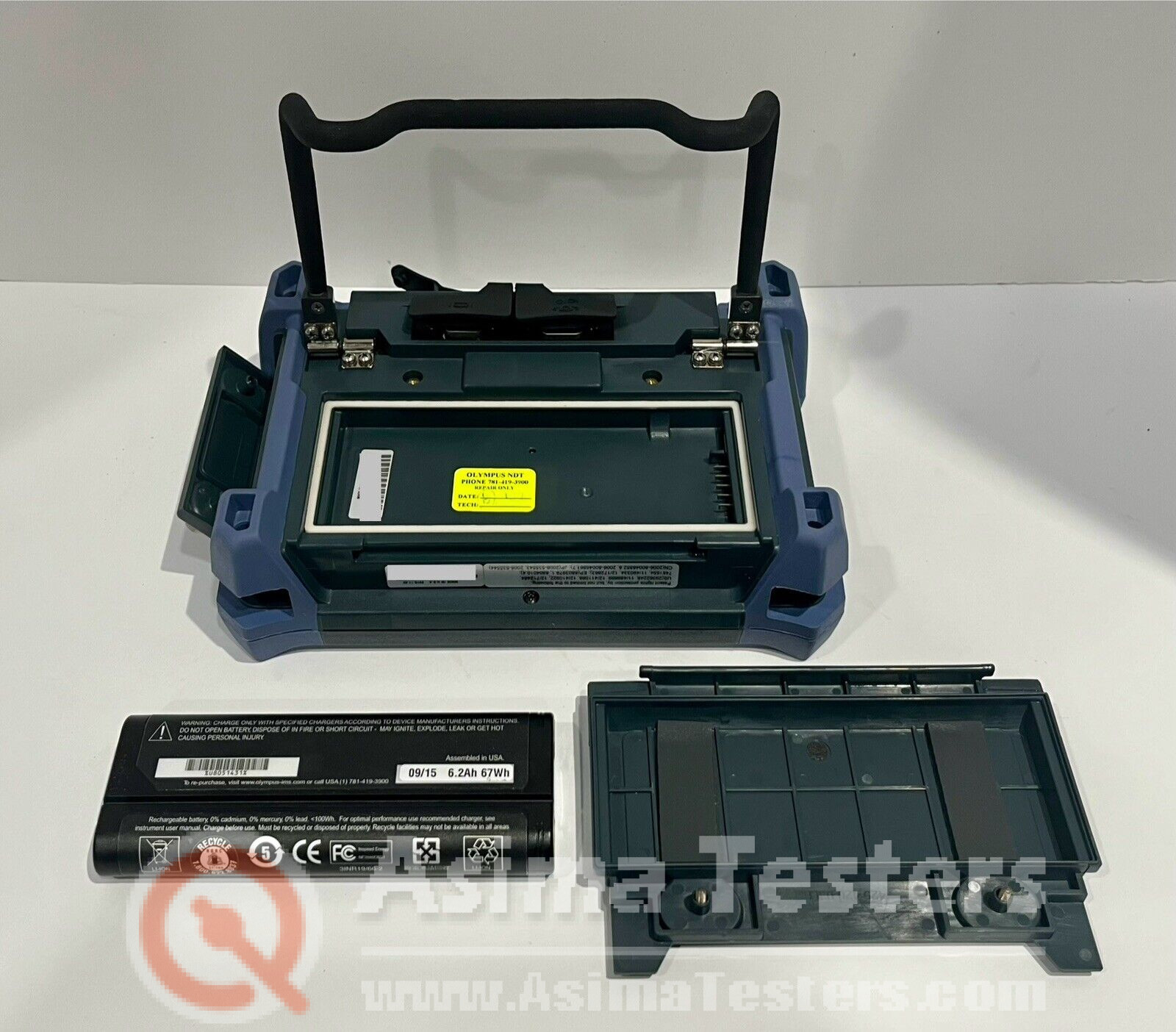

• Li-Ion Battery
• USB to Mini-USB Cable
• Printed Quickstart Guide
• User Manual & Quickstart on USB
• 32GB Micro SD Card & Adapter
• 4oz Bottle of Ultrasonic Couplant
