MTE PWS 2.3 GenX Three Phase Portable Electronic Meter Highest Precision Tester

Product Description

MTE PWS 2.3 GenX Three Phase Portable Electronic Meter Highest Precision Tester

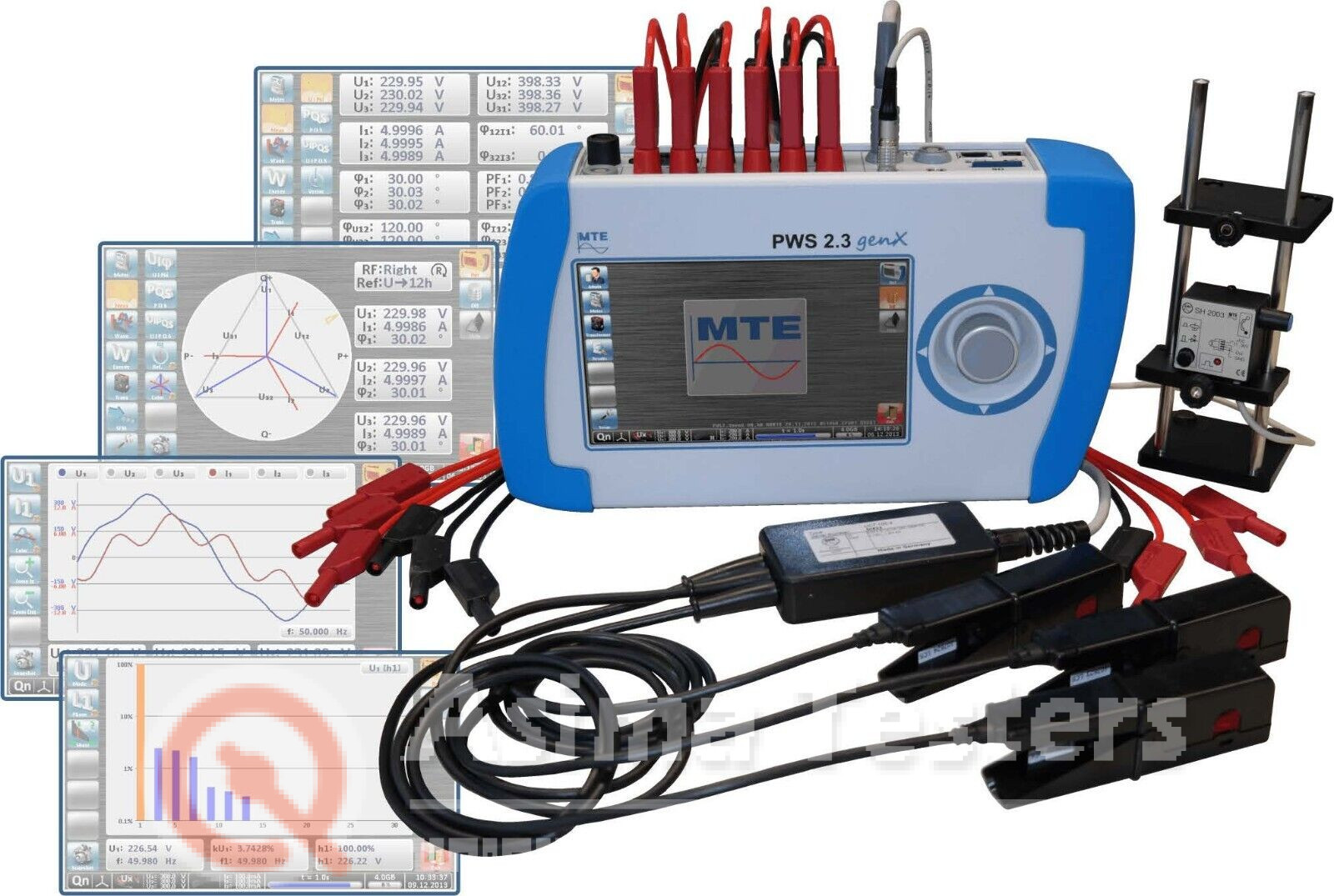

The PWS 2.3 genX Portable Working Standard is a three-phase portable electronic meter test unit of accuracy class 0.1%, used for testing single and three-phase electricity meters on site. The PWS 2.3 genX allows checking of all meter installation parameters and associated circuits. The unit can be used either with a direct connection in the range of 1 mA … 12 A, or by using a set of 3 active 120 A error compensated UCT clamp-on CT’s (included in the standard accessories set) in the range 10 mA …120 A. It is therefore possible to easily and accurately measure both CT and direct connected meters. The unit can be powered either from the measuring circuit or from an auxiliary single-phase supply.

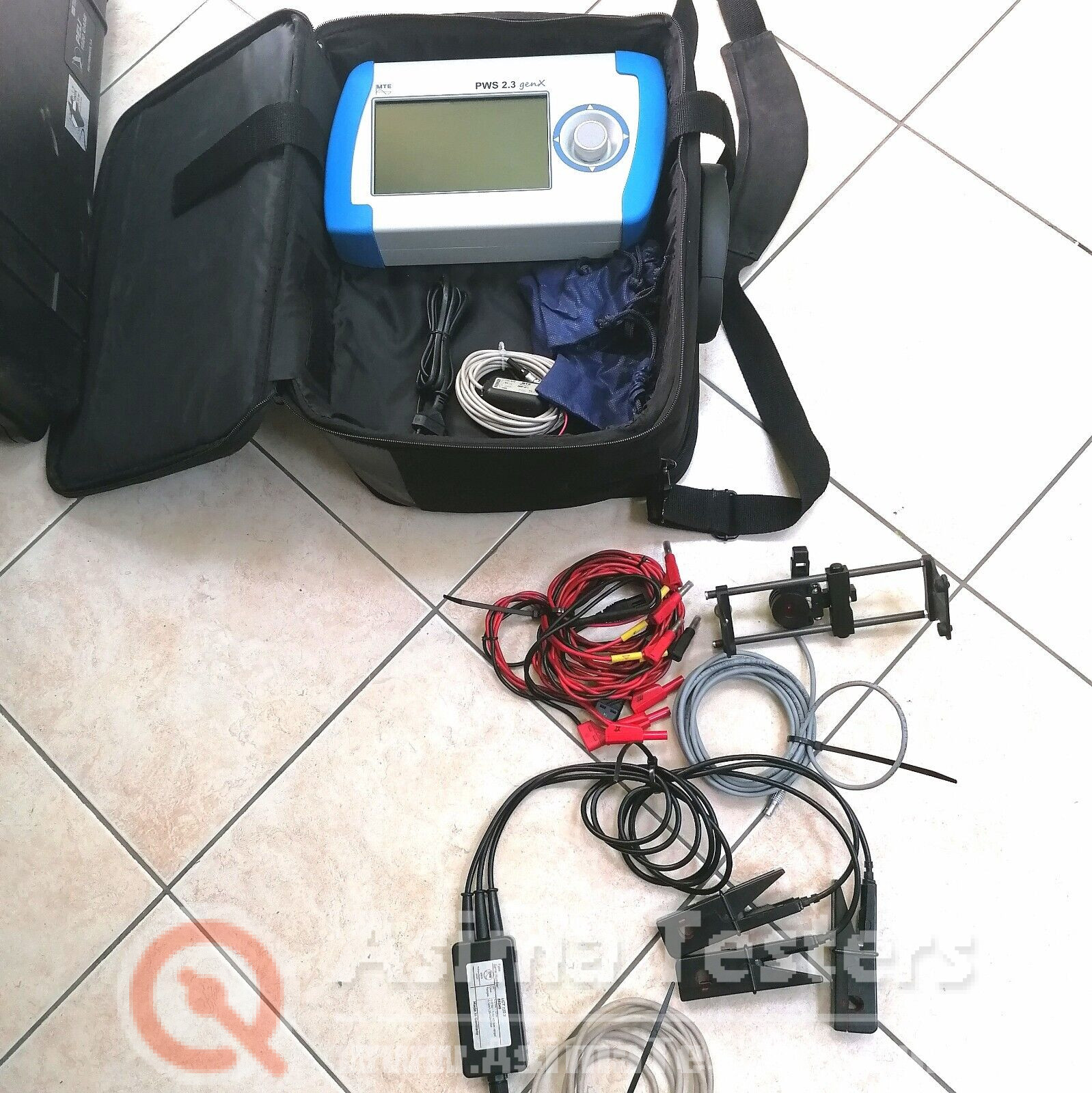

Package Includes:

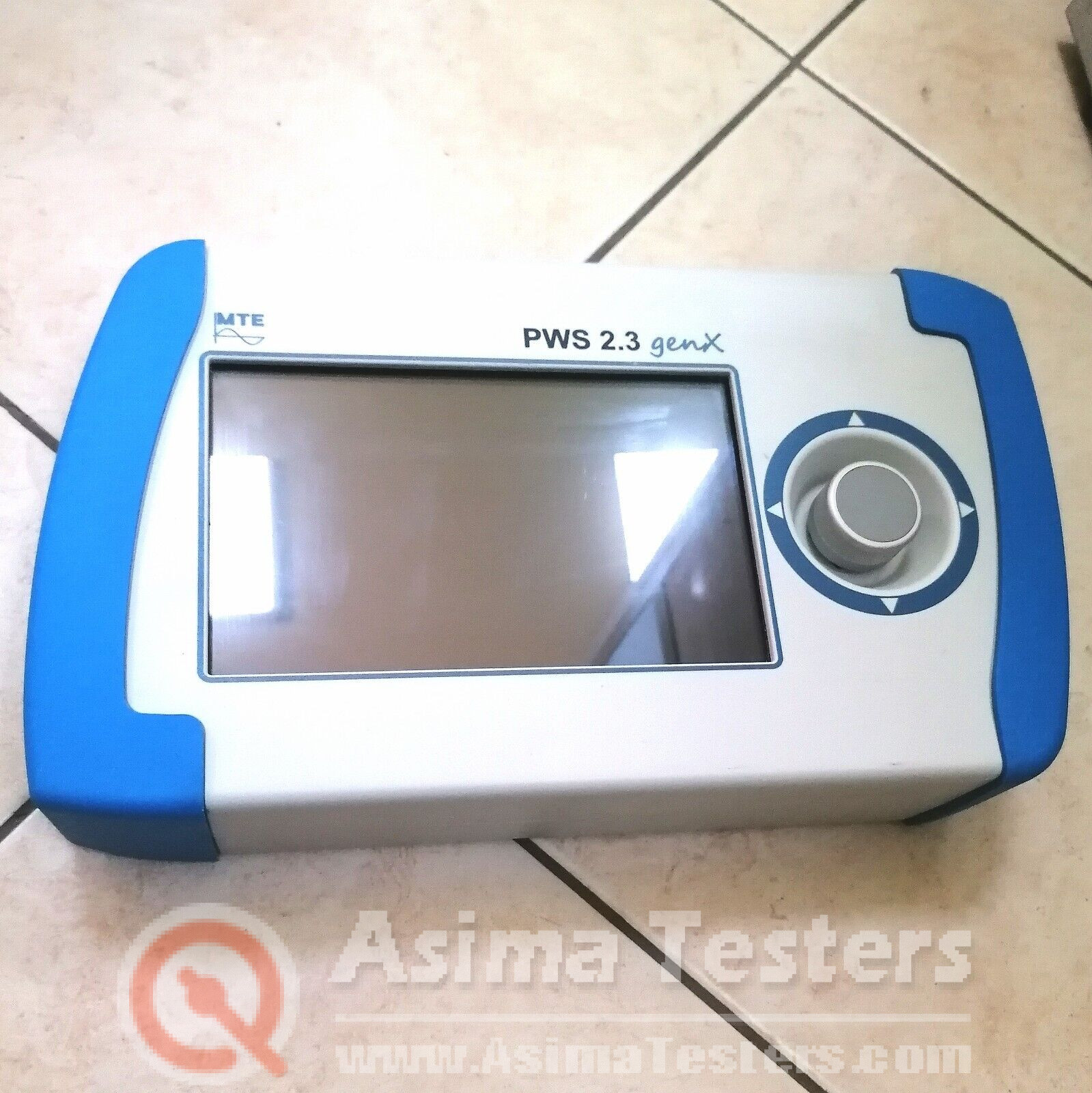

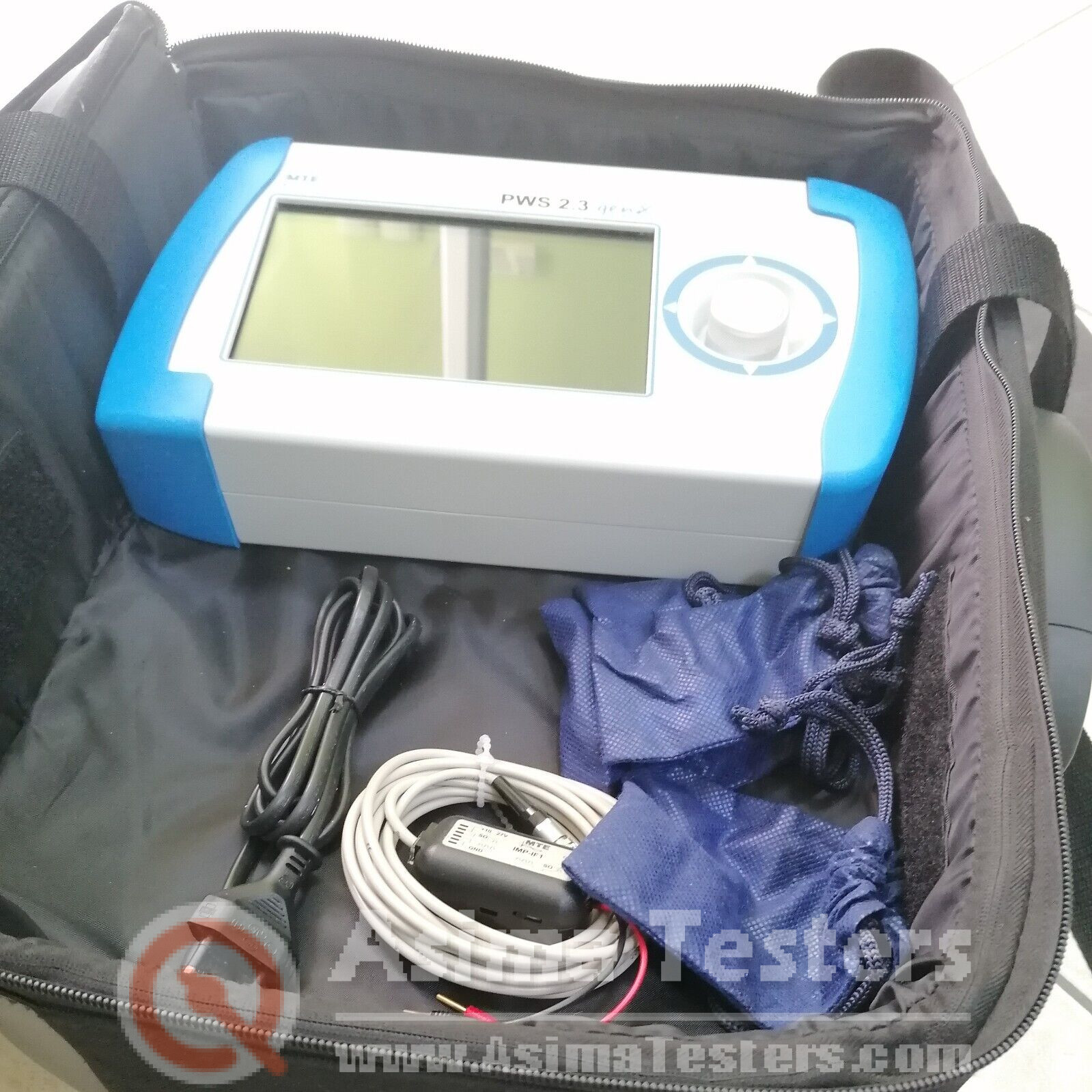

• PWS 2.3 GenX

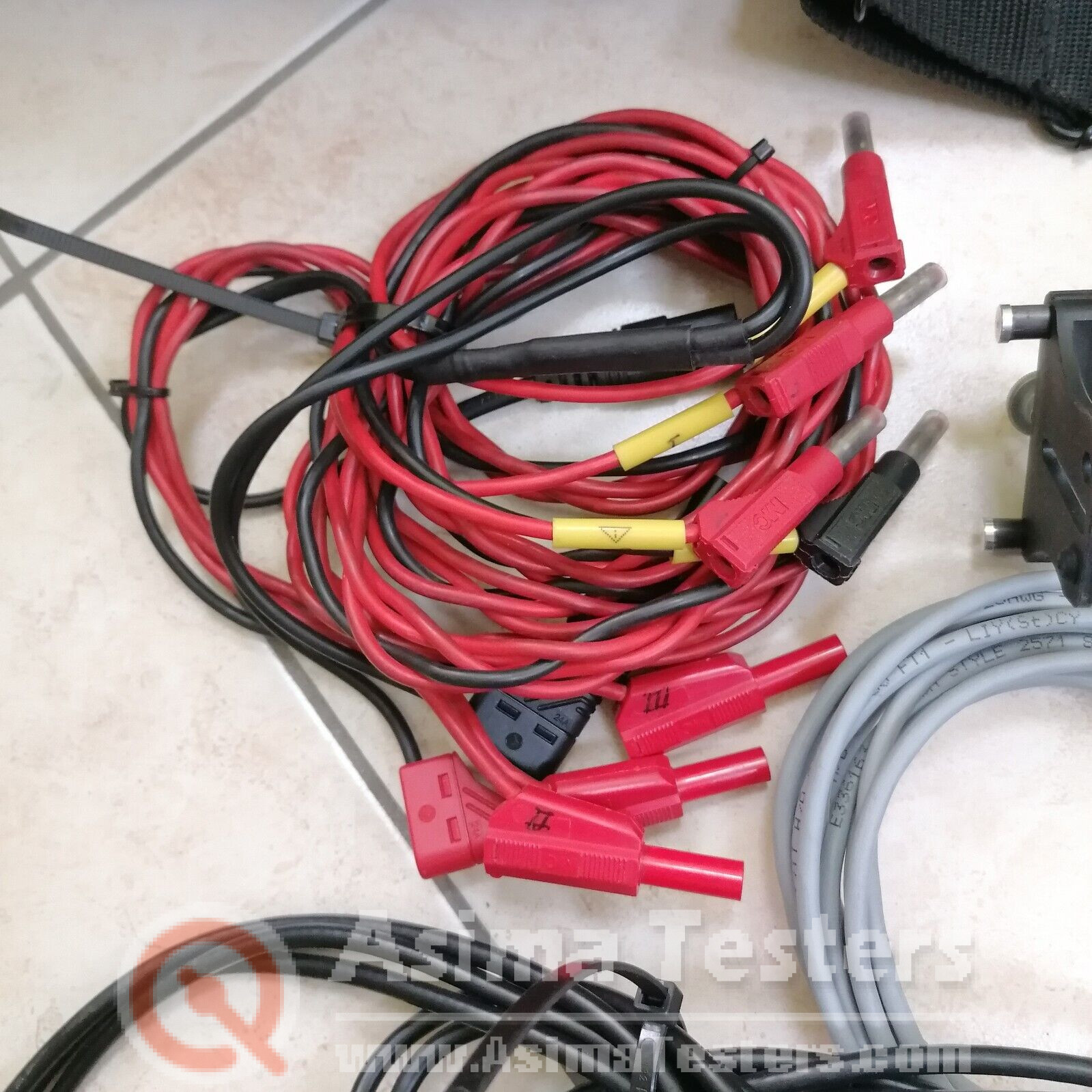

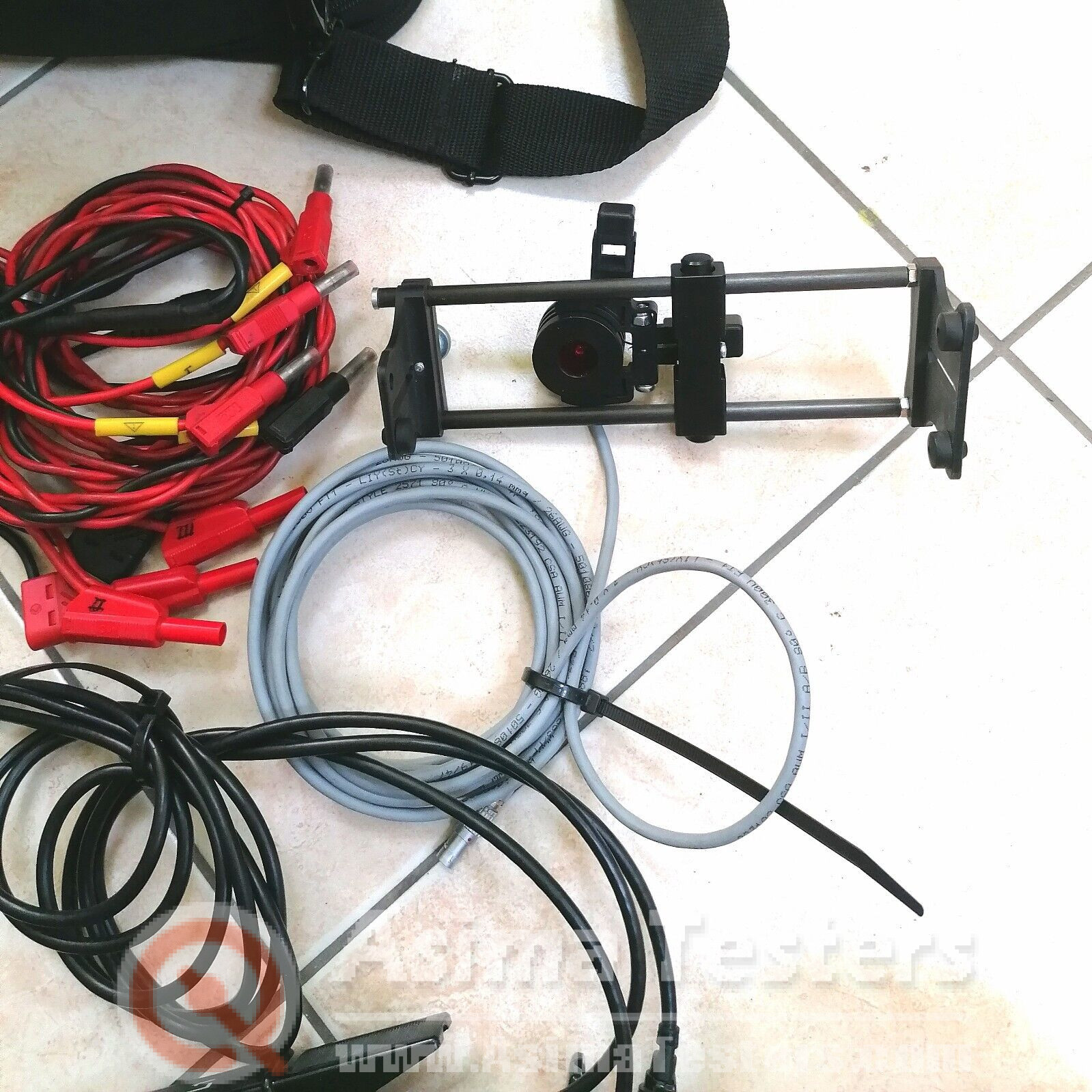

• 4 Voltage cables, 2.5 mm2, length 2.0 m
• 6 low current cables 2.5 mm2, length 2.0 m
• 1 Adapter set with crocodile clamps, connector sticks, banana socket adapters

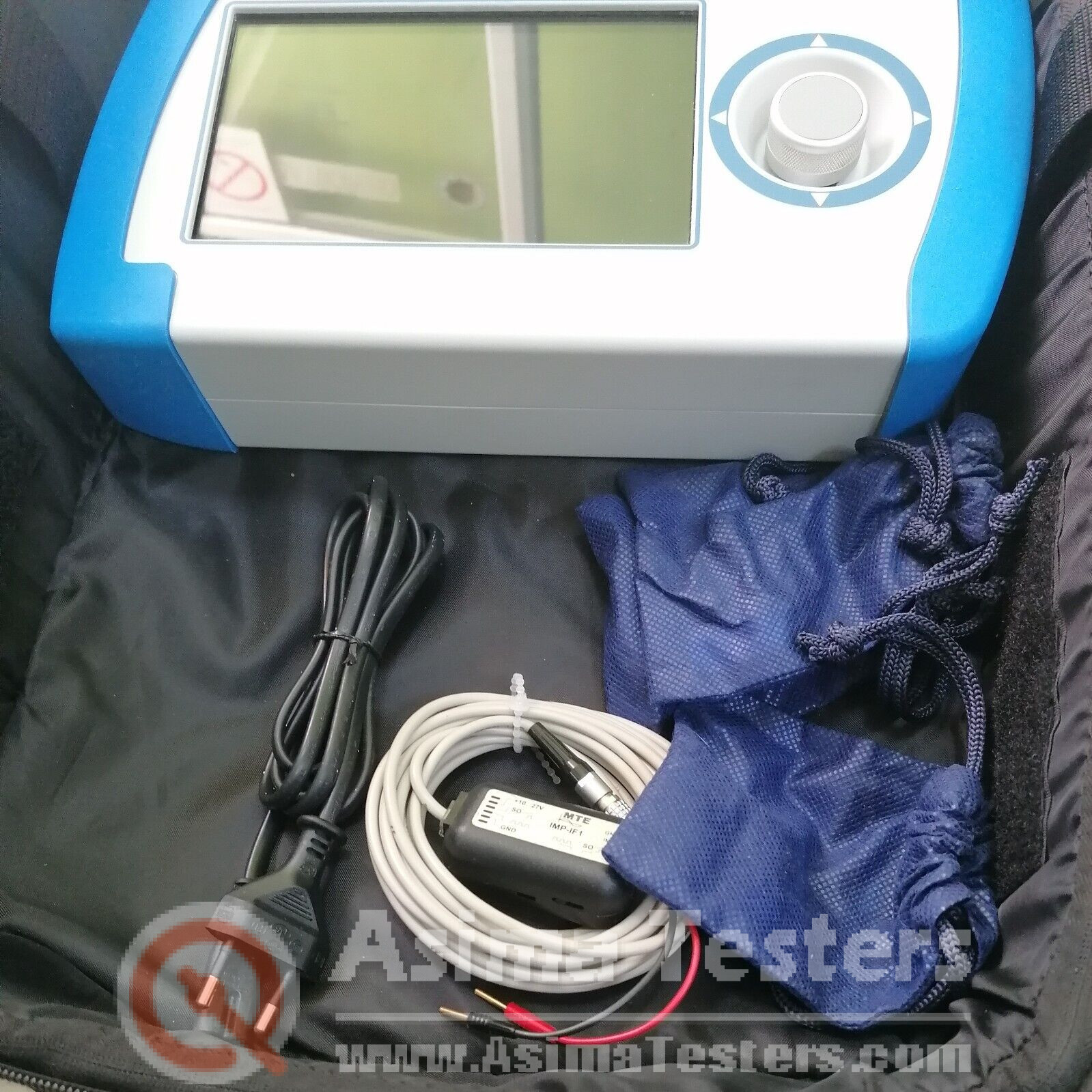

• 1 Mains cable

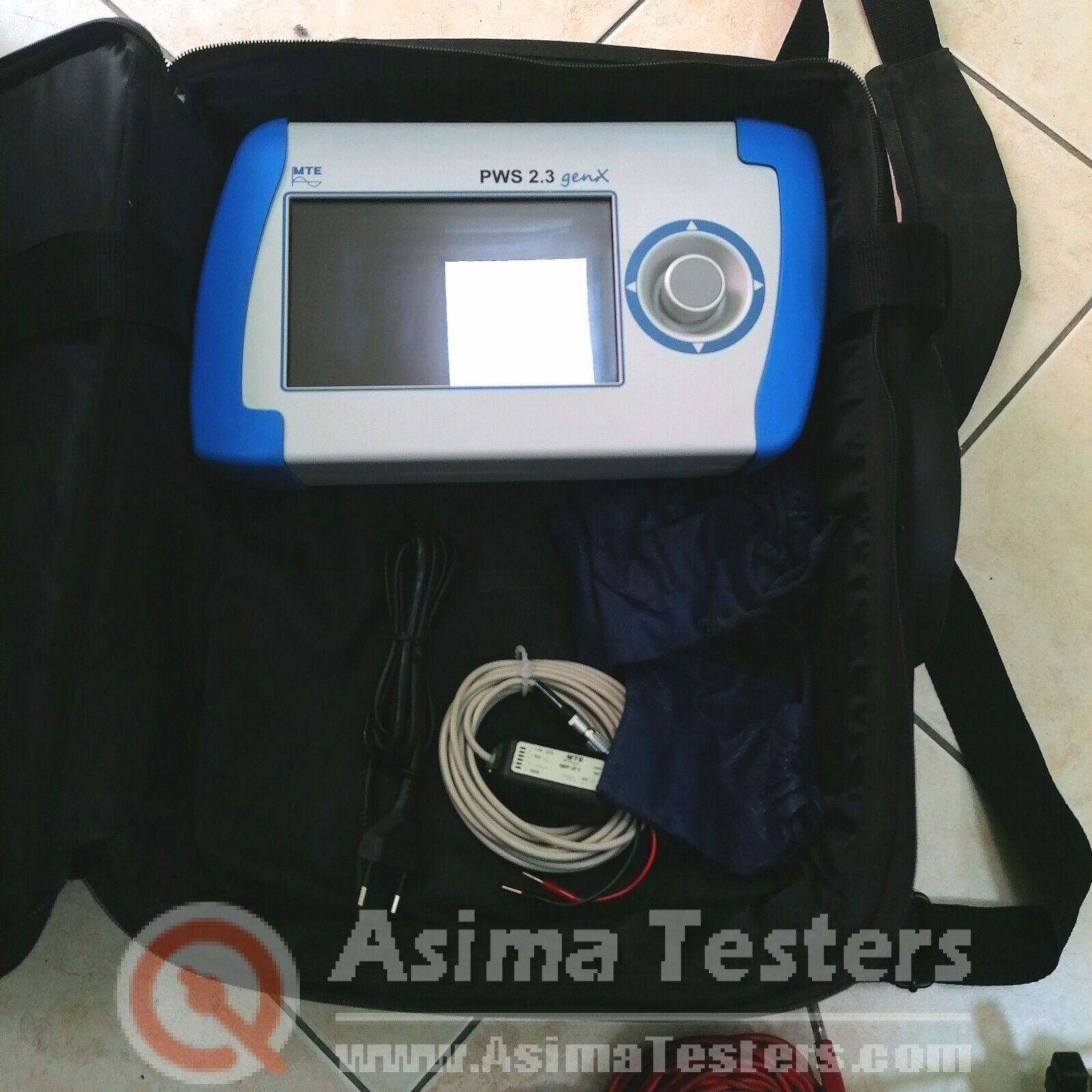

• 1 Carrying bag for accessories

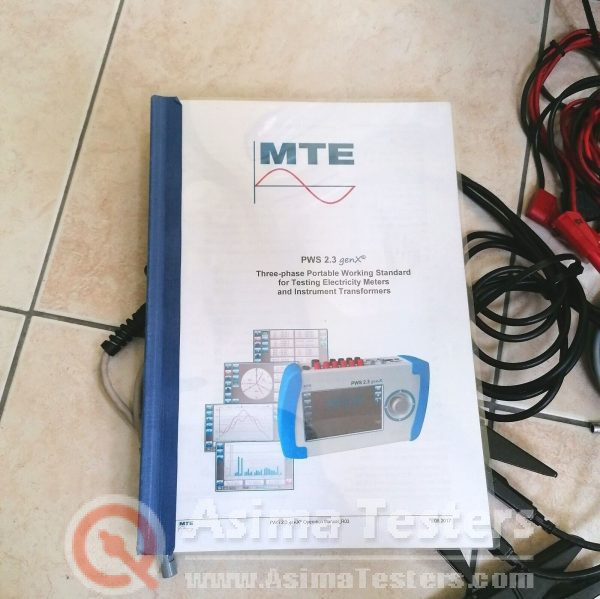

• 1 Operating manual and standard calibration report

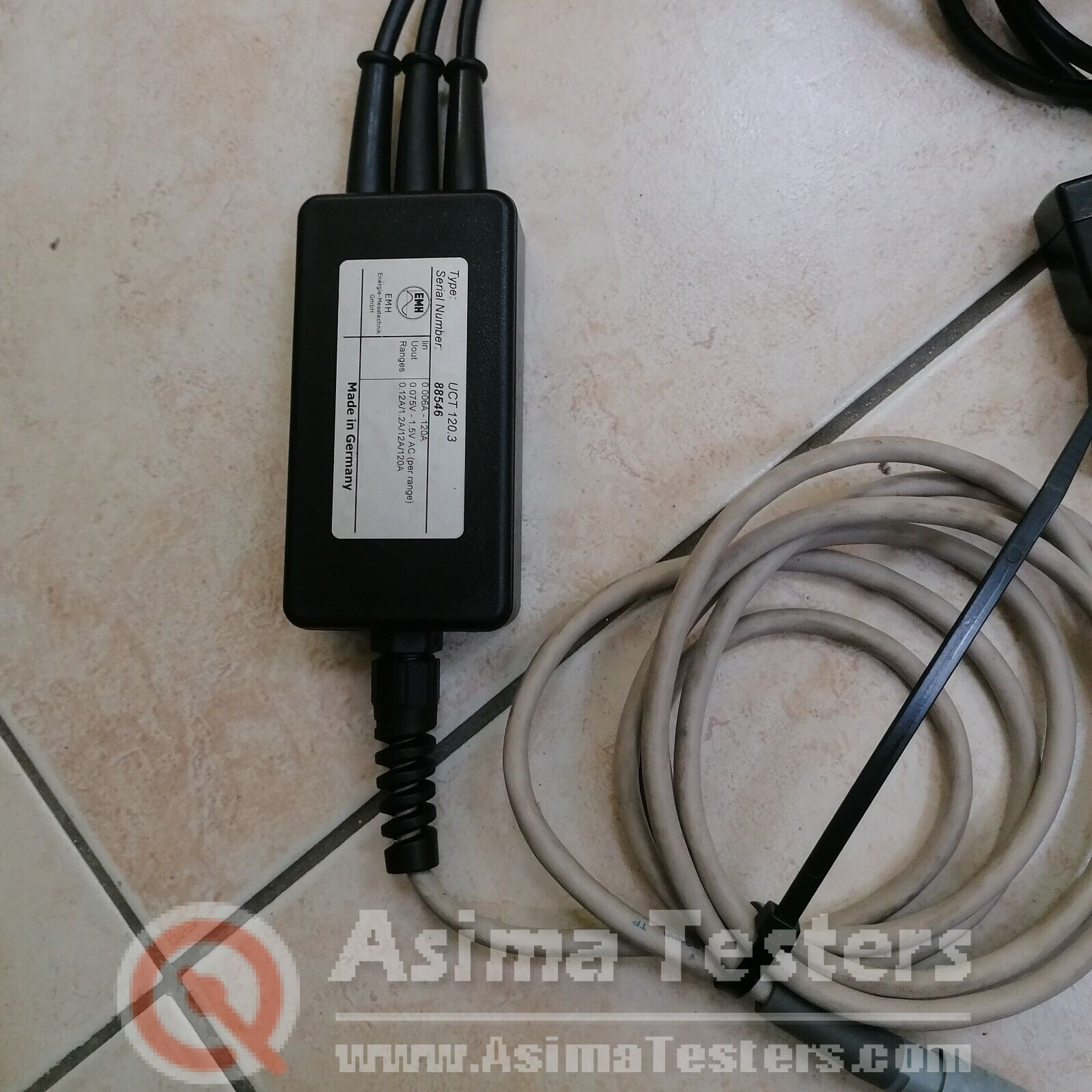

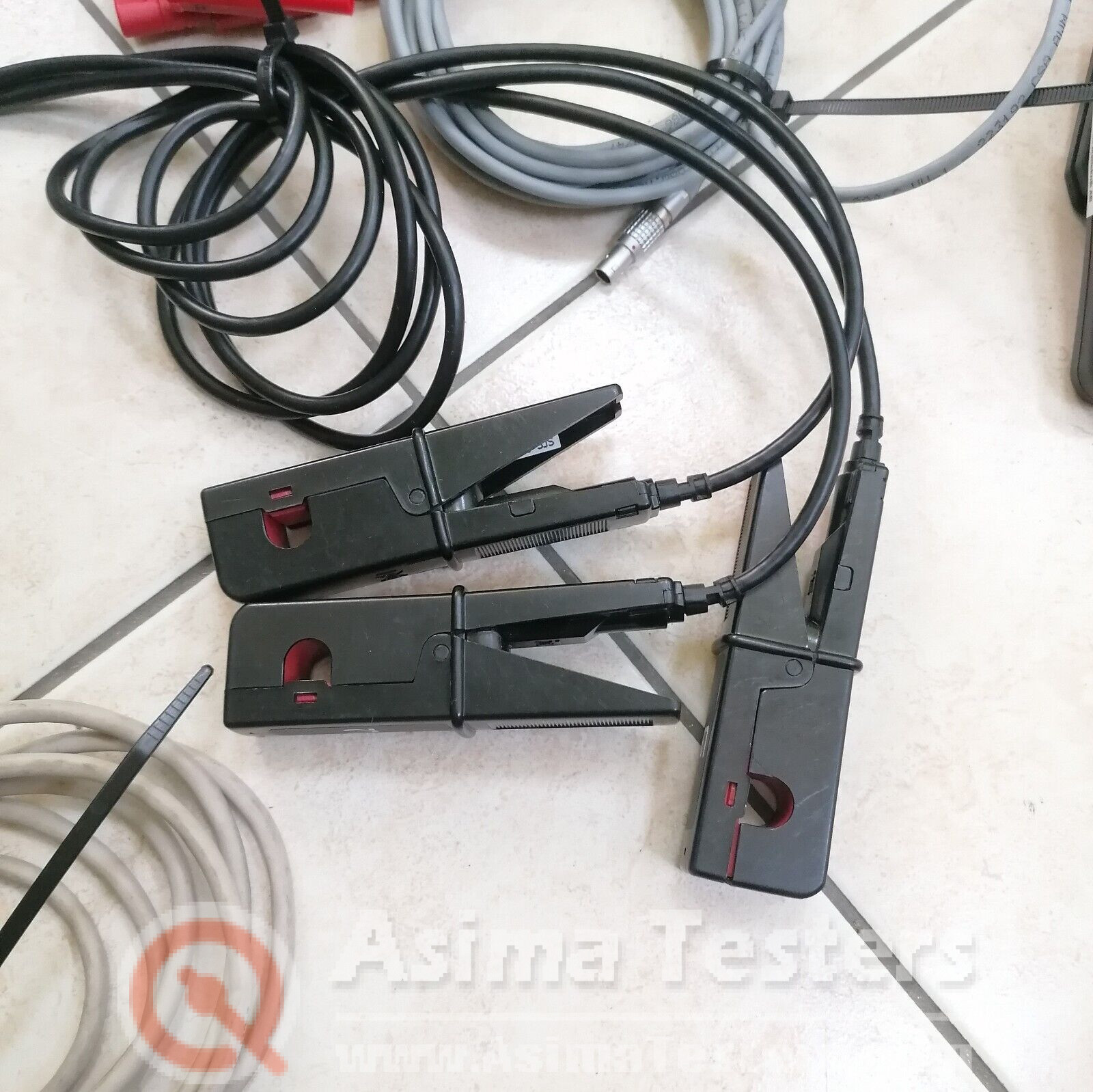

• 1 set of 3 clamp on CT’s 120A UCT 120.3 with serial number
• Active error compensated in identification box
