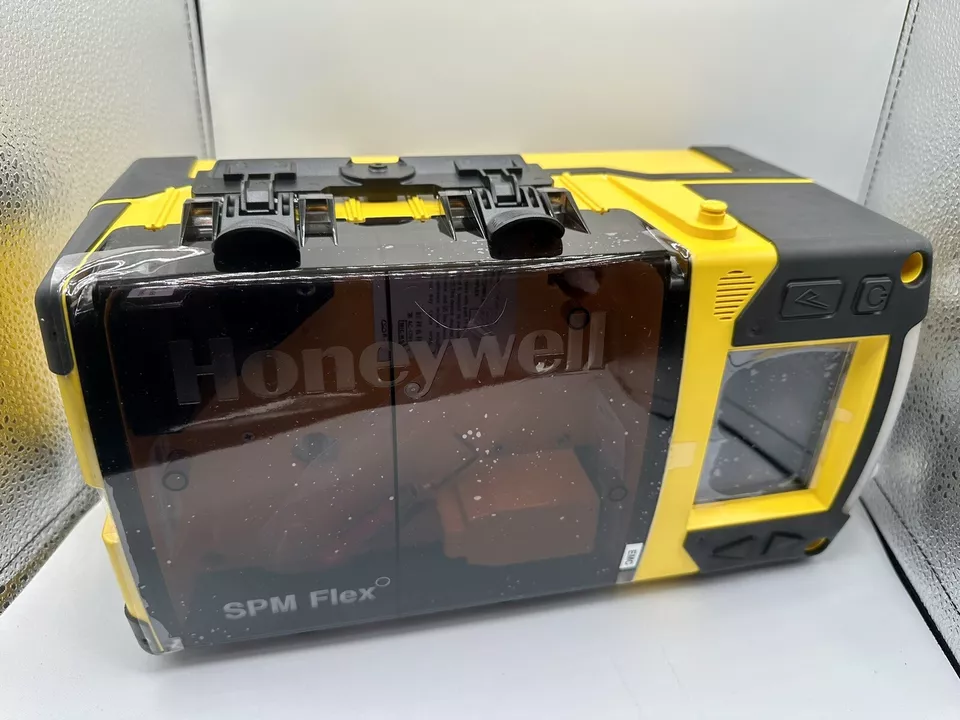

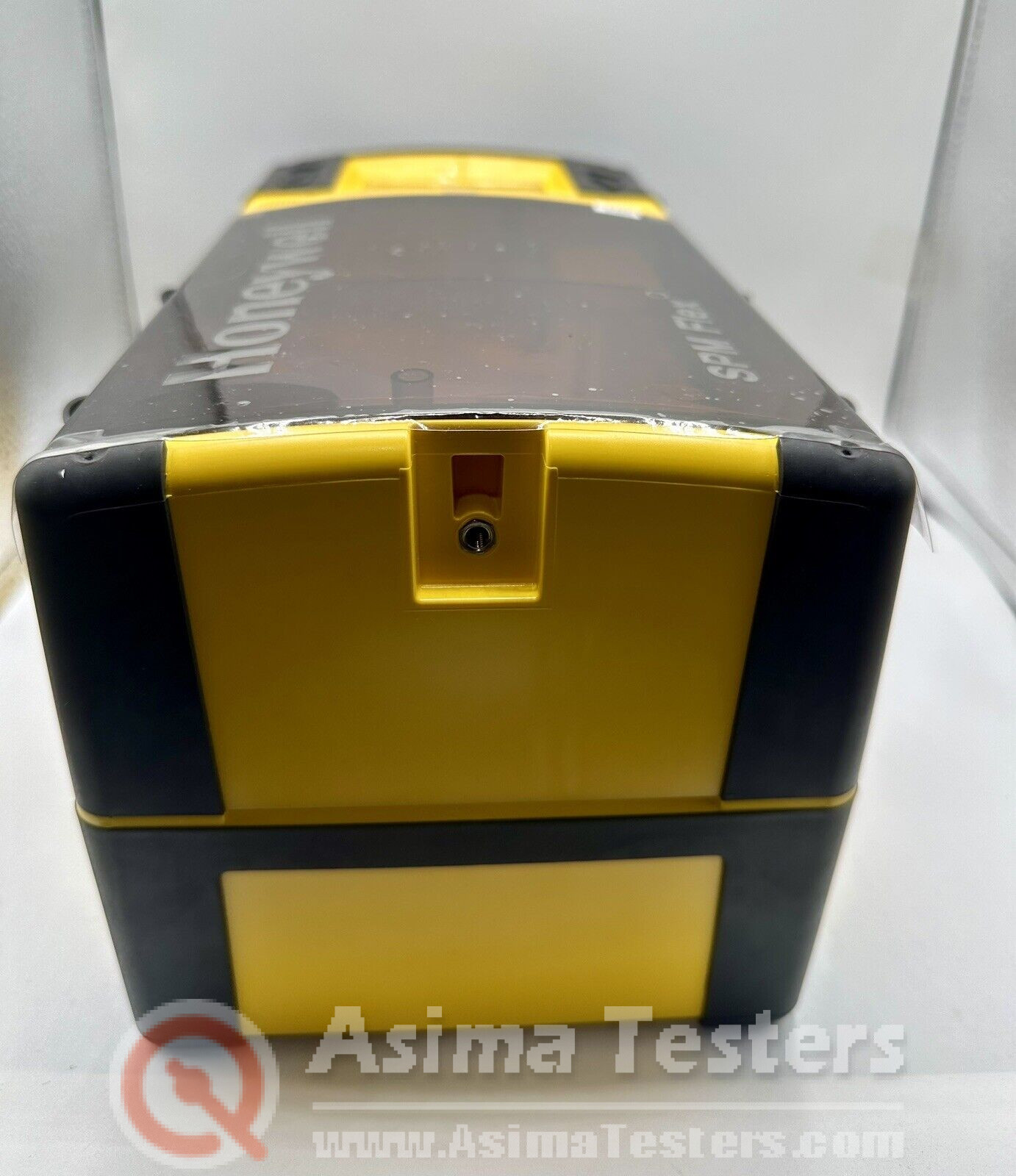

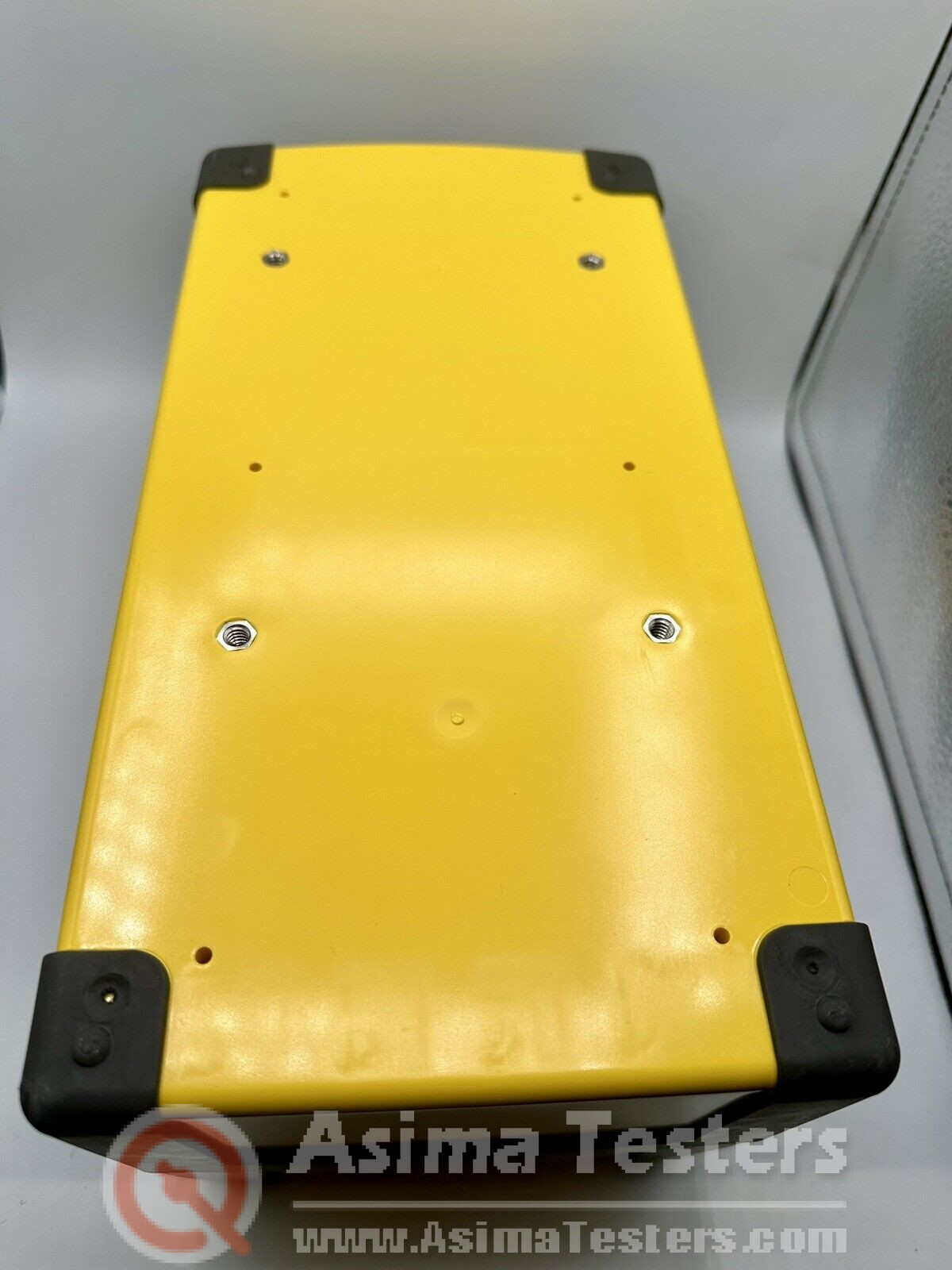

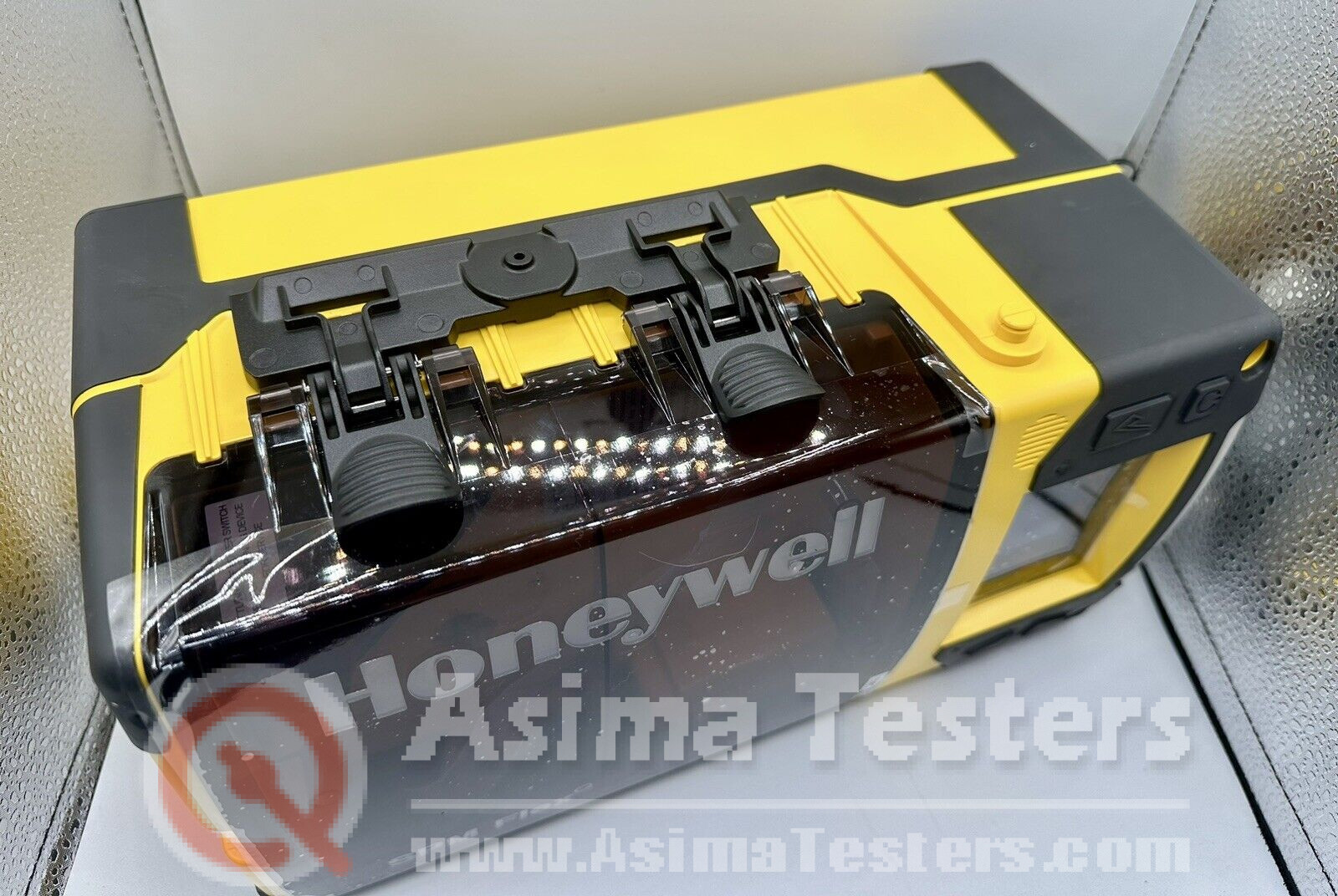

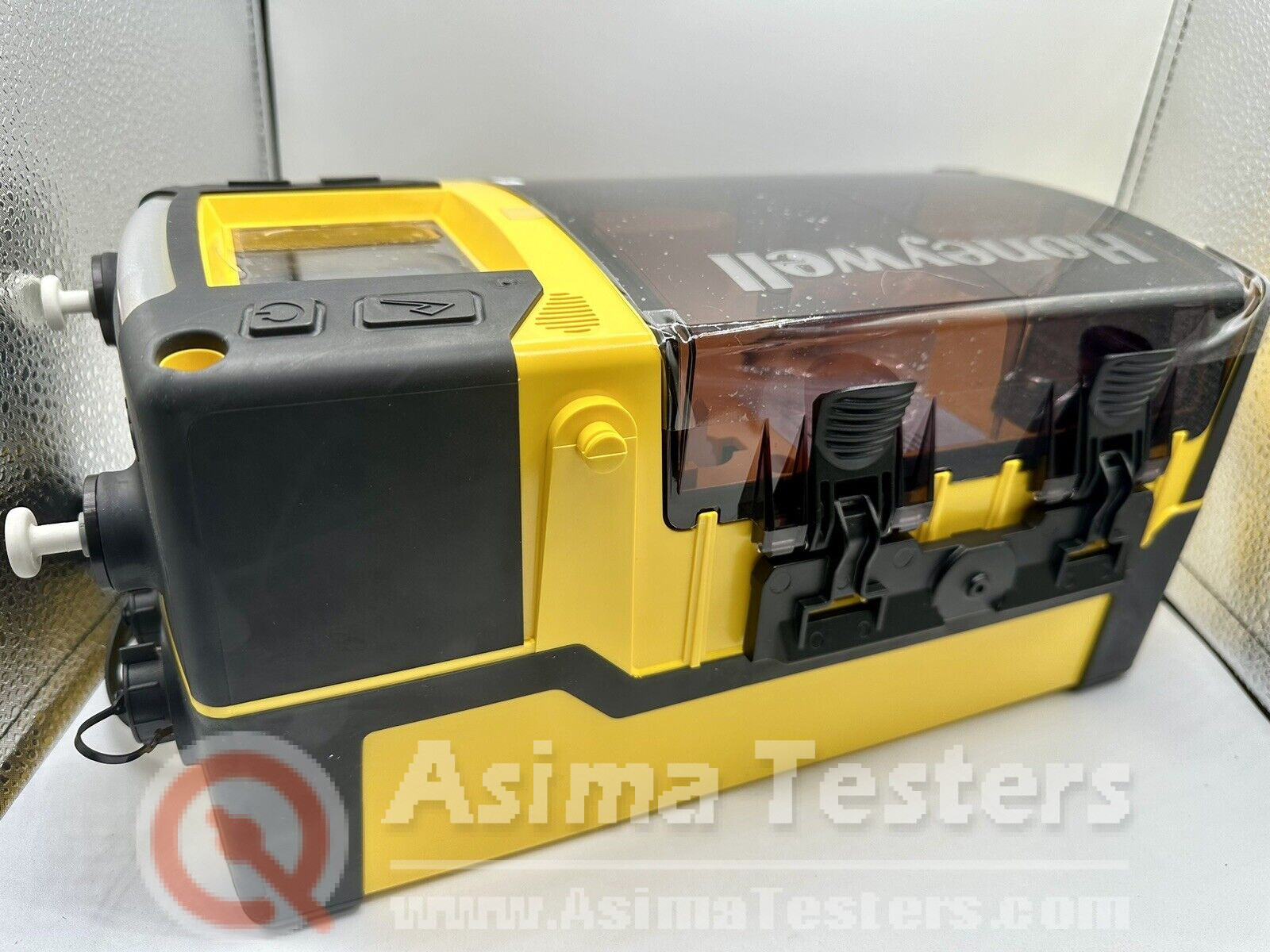

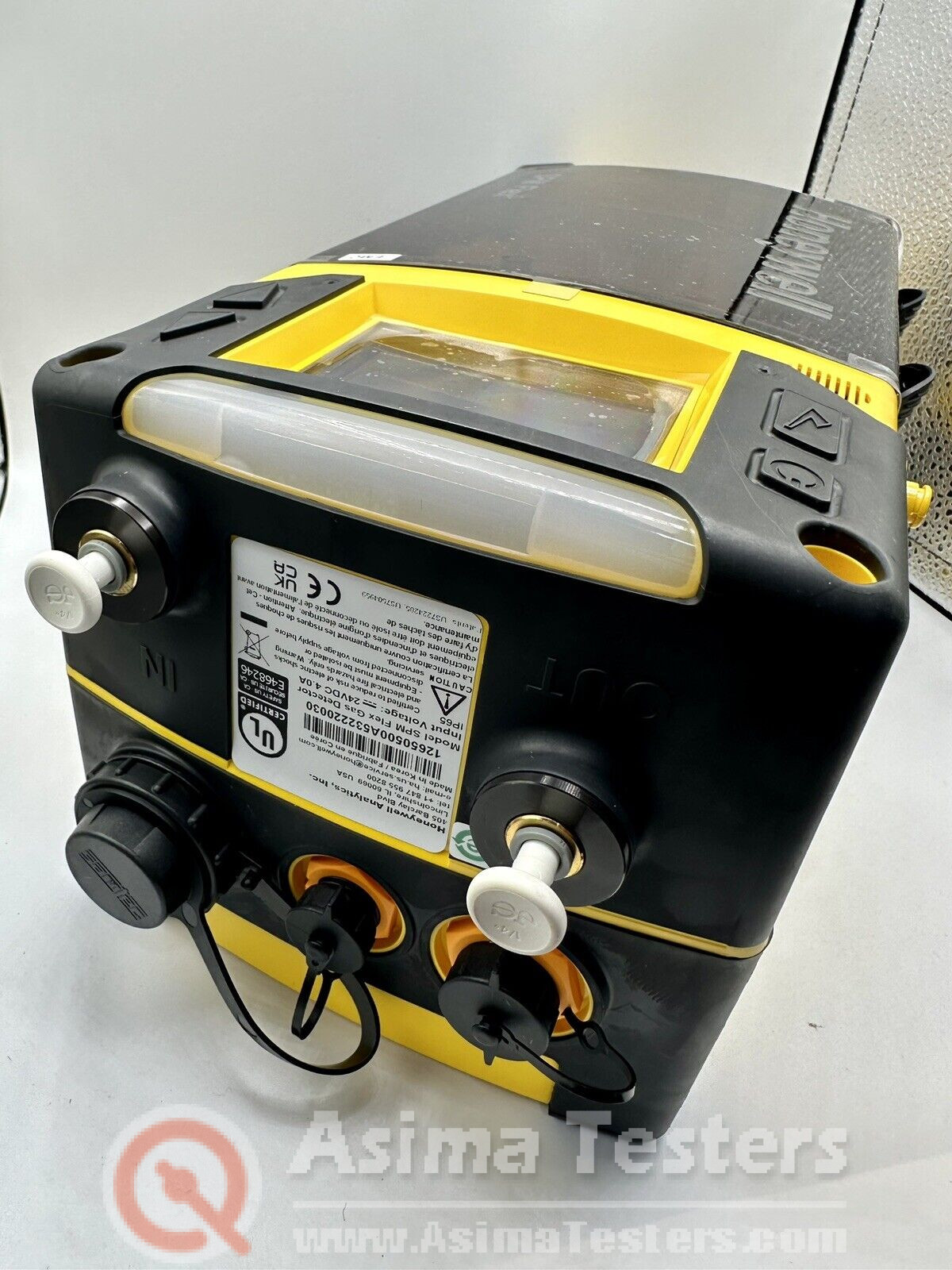

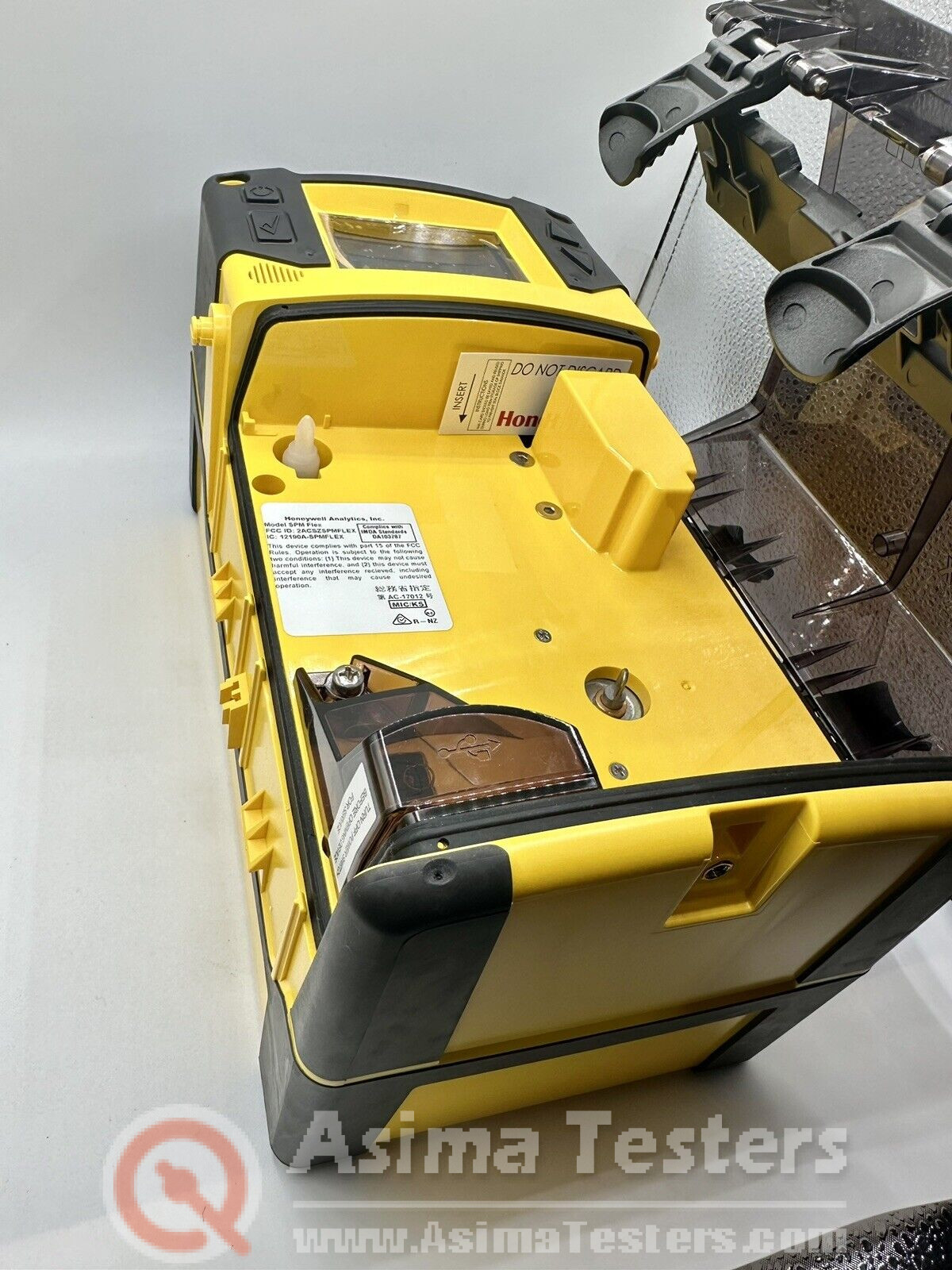

Honeywell SPM Flex Gas Monitor SPMF-P1EU

Product Description

Honeywell SPM Flex Gas Monitor SPMF-P1EU
Detection technique : Chemcassette tape-based with advanced self monitoring optics design and K-factor multiplier options. Duty cycle options to save paper

Operating temperature : 32°F to 104°F (0°C to 40°C) for most gases/applications

Operating humidity : 0-100% RH for unit (Sample RH limited per tape/calibration). Sample line requires additional hardware to remove moisture in high RH conditions where condensing may occur. The sample must be non-condensing. Dry conditions may require humidification

Flow system : Automatic flow control with bypass system, higher flow at inlet to reduce sample time (internal bypass system); sample up to 100 ft, check manual for specific gases

Interface : 4 large buttons, 3.5 in. Color LCD TFT display, web server. Flip screen

Relay : 250V AC, 6 A maximum

Integration protection rating : IP65

Ventilation requirements : Mount with no obstructions within 4 in. (10 cm) of either side or within 2 in. (5 cm) above and below the detector

Power supply : Universal Line powered (90-260 VAC 50/60 Hz) for battery charger

Power consumption : ~1.9 A at 24 VDC +/- 10% (including battery-charging current)

Battery type : Lithium ion.

Battery life : 6+ hours under typical conditions – acts as battery back-up in fixed applications. Approximately 70% of its original capacity after 300 full charge/discharge cycles.

Power adaptor
Input : 90~264 VAC, 1.2A, 47-63 Hz
Output : 24 VDC, 3.75 A max.
Wire gauge : Minimum: 24; Maximum: 14. AWG for relay and 4-20 mA outputs.
Weight : 4.1 Kg
