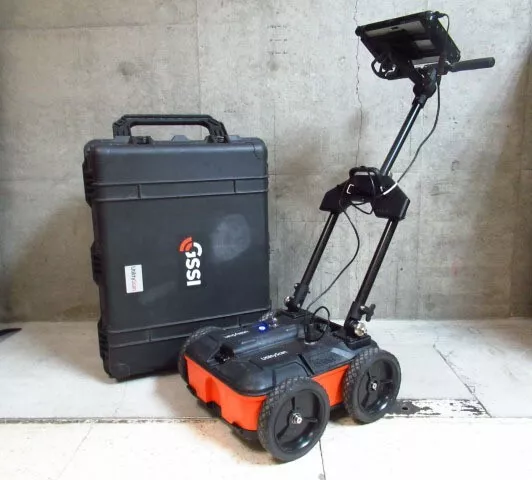

GSSI UtilityScan Smart TL Buried Pipe Prospector 50350US 2020 Inspection

Product Description

Product Name Utility Scan Smart

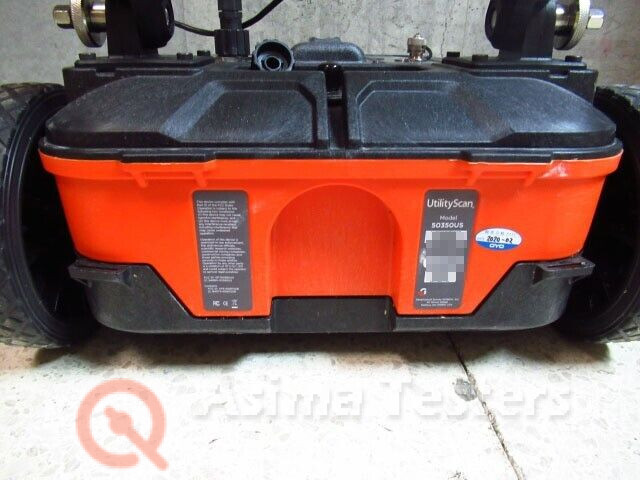

Model Smart
Measurement method Electromagnetic wave radar method
Antenna 350 Hyper Stacking? Antenna
Frequency 350MHz
Objects to be surveyed Underground pipes (metal/non-metal pipes, cavities, looseness) / tunnel lining thickness, internal cavities, etc.
Depth range ~10m
Battery life 7 hours
Operating temperature range -20°C to 40°C
Storage temperature range -40°C to 60°C
Weight Approx. 15 kg (including tablet)
Dimensions 56 x 49 x 32 cm
Protection class IP65
Durability Triaxial 30G shock test, vibration test (20-2,000 Hz)
Data Format RADAN (.dzt)
Scan Density Low: 40 scans/m
Normal: 60 scans/m
High: 100 scans/m

Controller:

• System Panasonic ToughPad FZ-A2 NVIDIA Shield? Tablet
• Display 10.1“, 1920 x 1200 WUXGA LCD 8”, 1920 x 1200 LCD
• Battery capacity and operating time 2720mAh, approx. 9 hours 19.75Wh, approx. 3 hours
• Ports USB 3.1 Type-C port, USB 3.0 Type-A port Micro USB
• Operating temperature -10°C to 50°C
• Protection class IP65
• Durability MIL-STD-810G
