GE Phasor Xs 16:64 Phased Array

Product Description

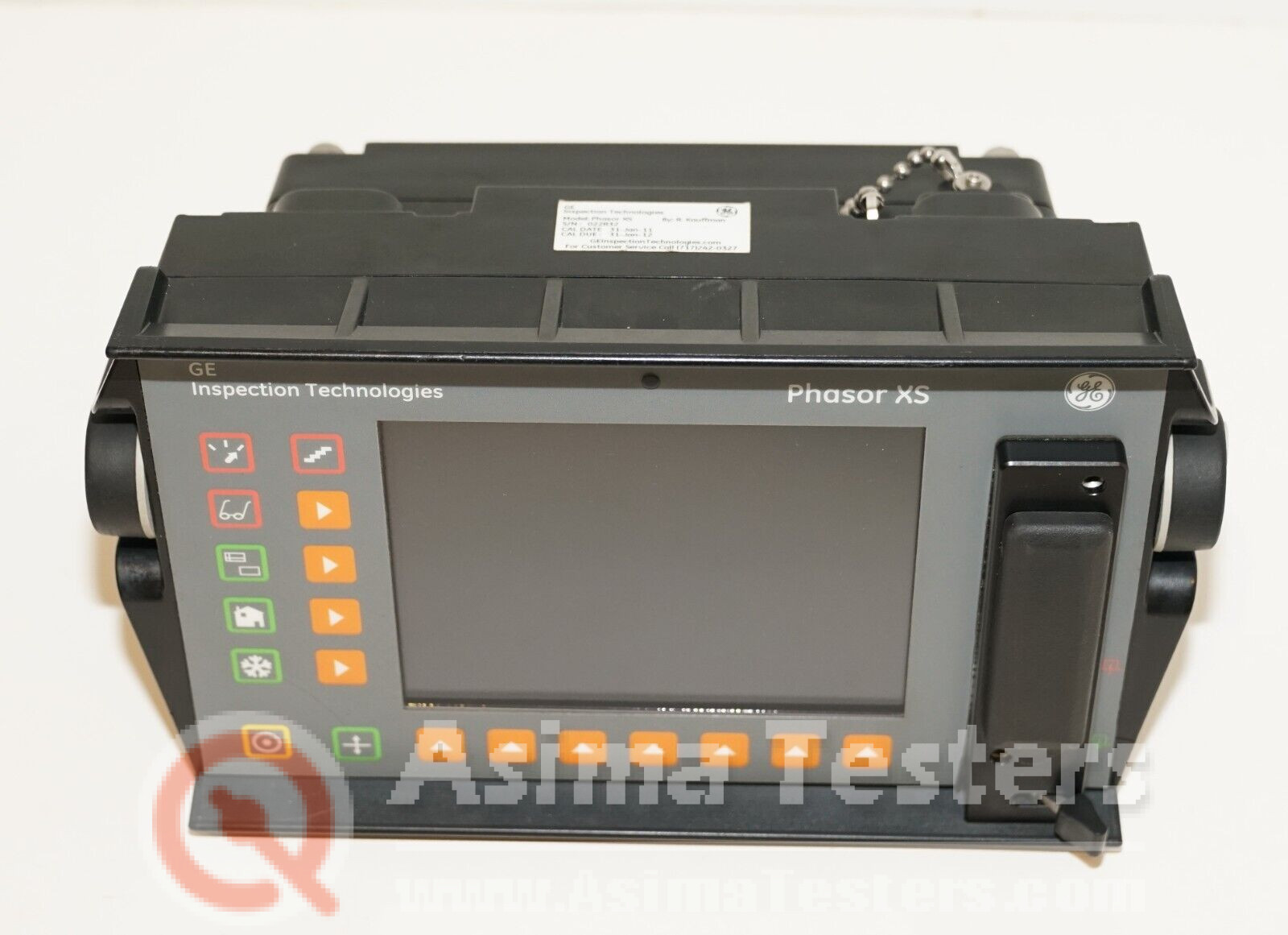

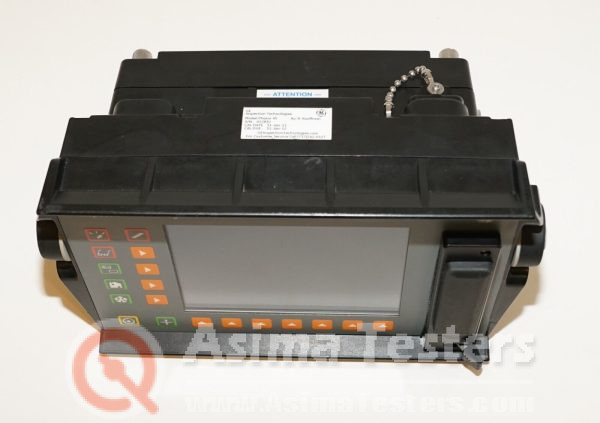

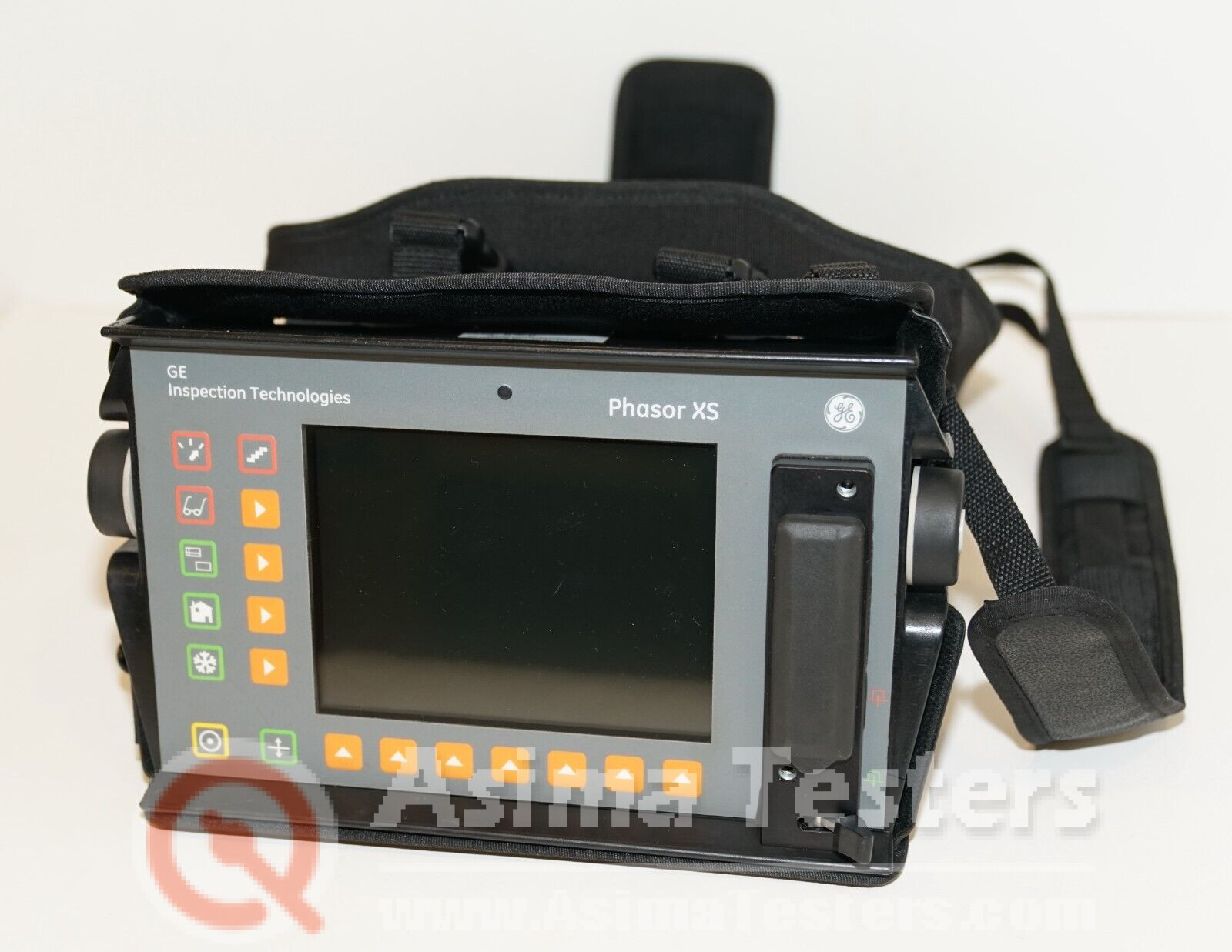

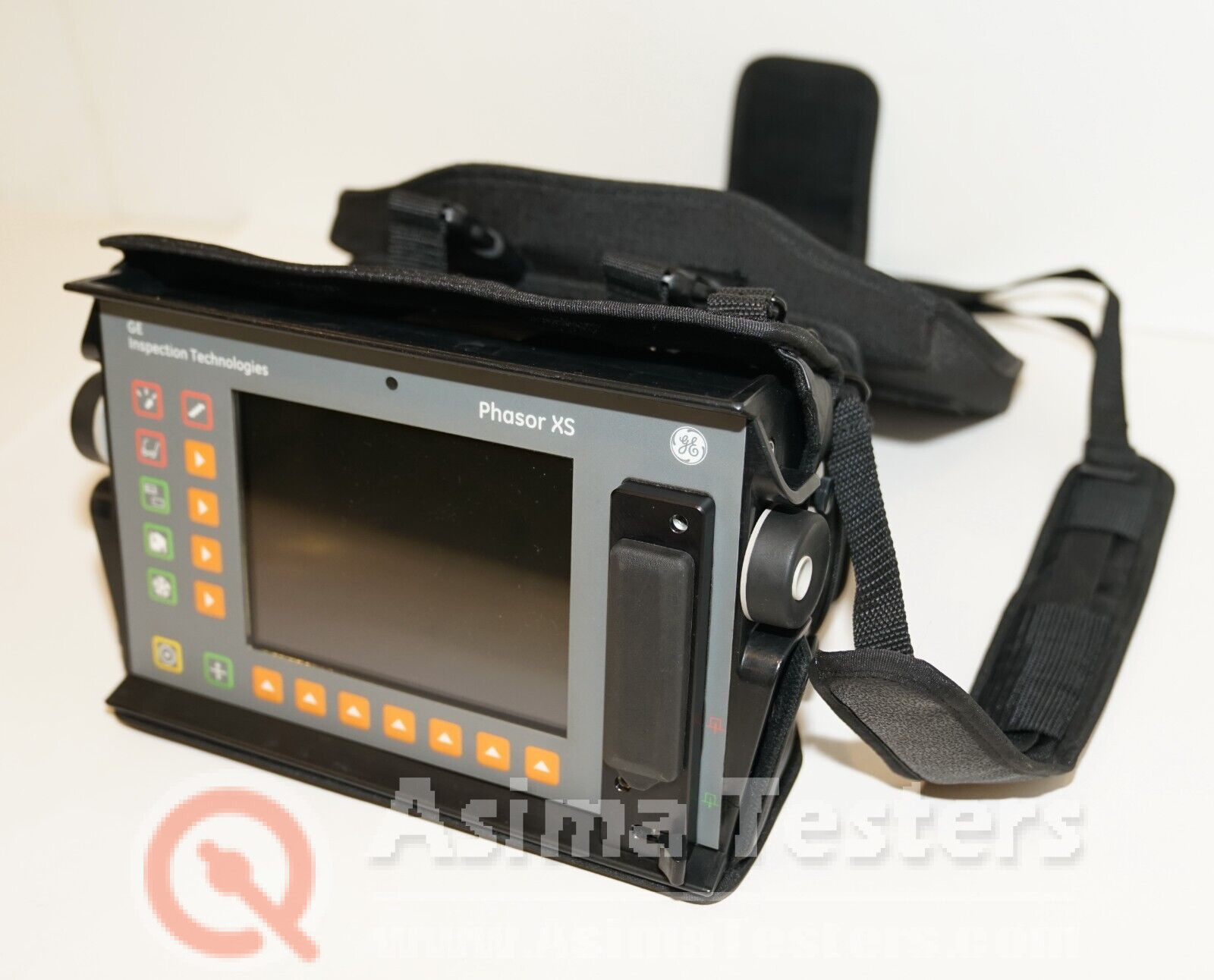

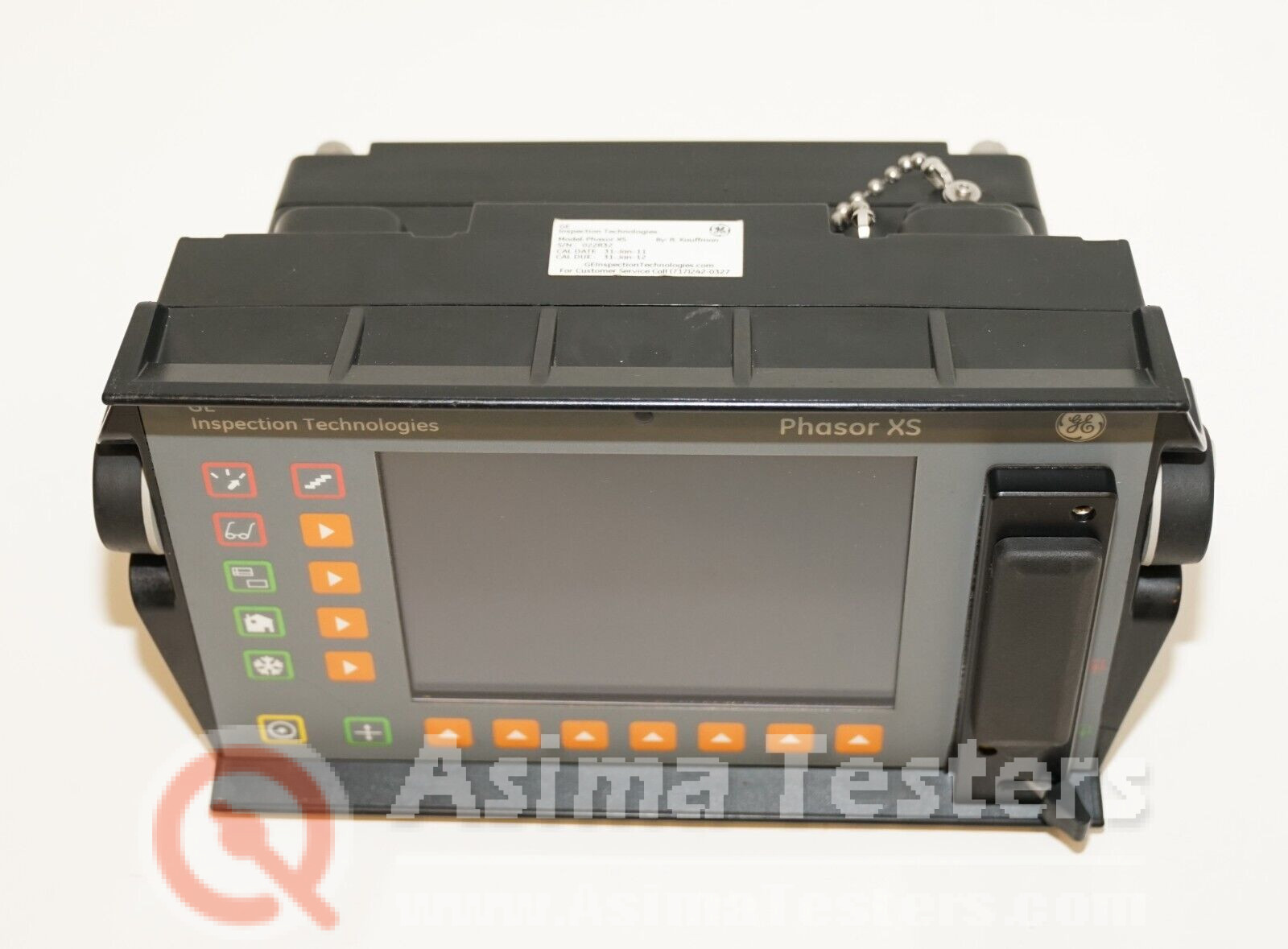

GE Phasor XS 16:64 Phased Array Ultrasonic Flaw Detector

The GE Phasor XS elevates the well-established benefits of Phased Array technology to a new, approachable level. This compact and durable gadget combines the benefits of a Phased Array with a traditional UT fault detector that complies with code. It is specifically developed with useful, pertinent features and is easy to use and master.

Overall, the Phasor XS provides:

• Improved area coverage, faster results
• More information from one scan of the part
• Better recorded result from the generation of an image
• One probe replicates the capabilities of many conventional UT probes and wedges
• Time and cost savings from reduced hours evaluating indications with multiple angles

GE Phasor XS 16:64 Specifications:

• Display Size Resolution: 6.5” VGA (640*480 pixel) color TFT, 60Hz refresh rate
• Battery Life: 4 hours minimum
• External Power Supply: Universal input (85 – 265V / 50 – 60 Hz)
• Units of Measure: inch and mm
• SD Card Memory: Sealed compartment

Environmental tests

• Cold Storage: -20C for 72 hrs, 502.4 Procedure I
• Cold Operation: 0C for 16 hrs, 502.4 Procedure II
• Heat Storage: +70C for 48 hrs, 501.4 Procedure I
• Heat Operation: +55C for 16 hrs, 501.4 Procedure II
• Loose Cargo: 514.5 Procedure II
• Transit Drop: 516.5 Procedure IV, 26 drops

Included:

• GE Phasor XS 16:64 Flaw detector
• AC Adapter/Charger
• Power cord for charger
• GE Mini Encorder Kit
• Screen Protector
• USB Interface Cable
• User Documents
• Hard carrying case
