Concrete Ultrasonic Detector Internal Defects Crack Depth Damage Layer Thickness

Product Description

Concrete Ultrasonic Detector Internal Defects Crack Depth Damage Layer Thickness

Features:

• Concrete structure internal defects and crack depth detection, homogeneity, damage layer thickness detection
• Concrete strength testing
• Concrete foundation pile integrity testing (manual)
• Concrete thickness testing

Based on the standard:

• Ultrasonic rebound synthesis method for detecting the compressive strength of concrete Technical Specification” T/CECS 02-2020
• Technical Specification for Detecting Concrete Defects by Ultrasonic Method CECS 21:2000
• Technical Specification for Dynamic Measurement of Base Piles in Highway Engineering JTG/T F81-01-2020
• Technical Specification for Base Pile Testing in Construction JGJ106-2014
• Technical Specification for Base Pile Testing in Railway Engineering TB 10218-2019
• Test Procedures for Physical and Mechanical Properties of Rocks DZ/T0276-2015
• Engineering Rock Classification Standard GB 50218-94
• Standard for Testing Methods of Engineering Rock Body GB/T 50266-2013

Main technical indicators:

• Host: Specialized microcomputer system
• Sound time reading range: 0～640Kμs
• Sound time reading accuracy: ±0.05μs
• Amplitude reading range: 0~177dB
• Gain accuracy: 3%
• Amplifier bandwidth: 5Hz～1MHz
• Transmit voltage: 250, 500, 1000V adjustable in multiple steps
• Sampling period: 0.05, 0.1, 0.2, 0.4, 0.8, 1.6, 3.2, 6.4μs adjustable
• Operation mode: key + photoelectric knob
• Trigger mode: signal trigger, external trigger
• Receiving sensitivity: ≤10 μv
• Signal acquisition mode: continuous signal, transient signal
• Extended function: can be extended to impact echo concrete thickness tester, rock parameters determination, steel pipe concrete test.
• Number of channels: dual-channel
• Channel isolation: not less than 42 dB
• Maximum penetration distance: 10m
• Display: 640 × 480
• Universal interface: parallel port, USB port
• Operating software: Chinese

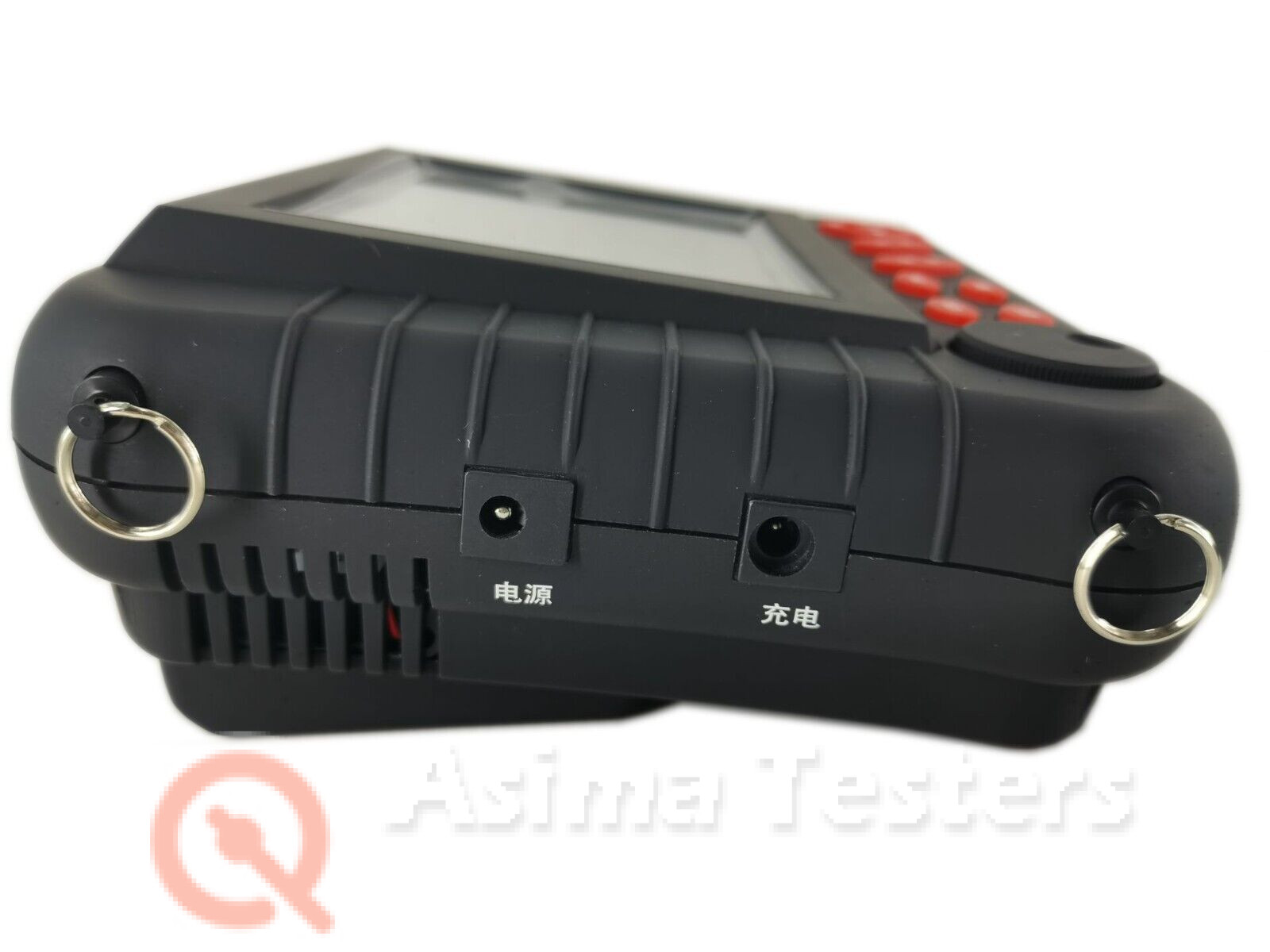

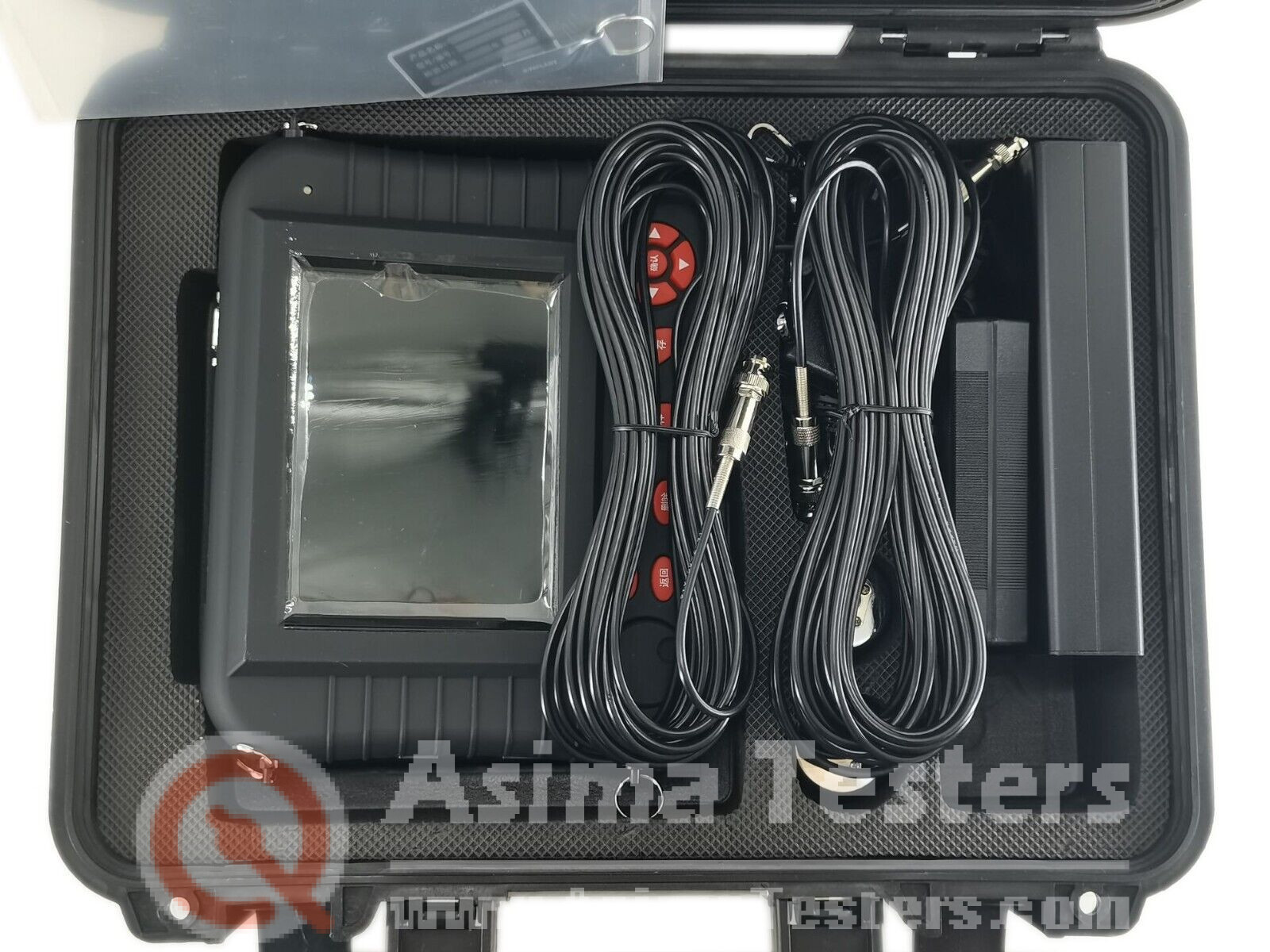

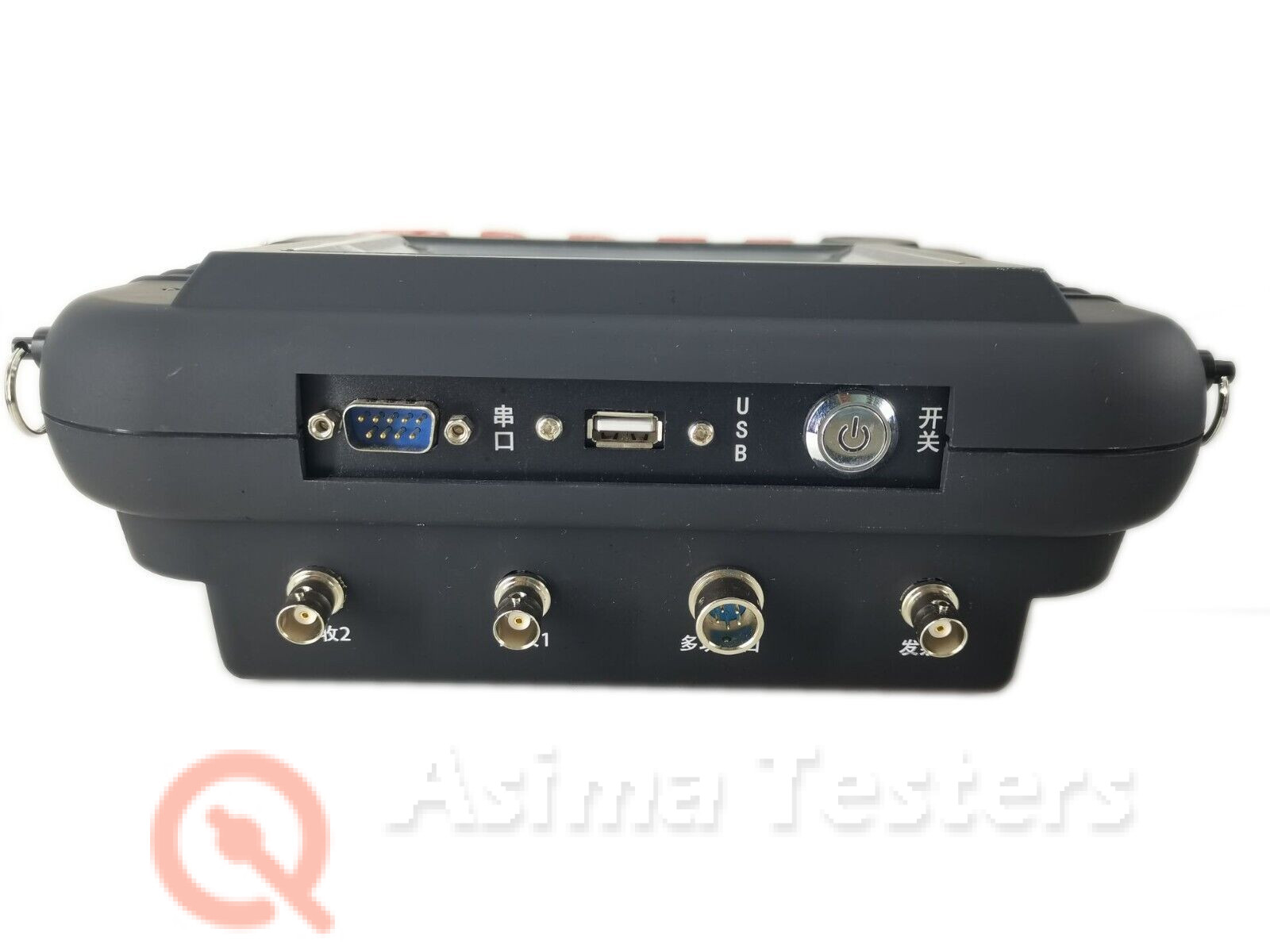

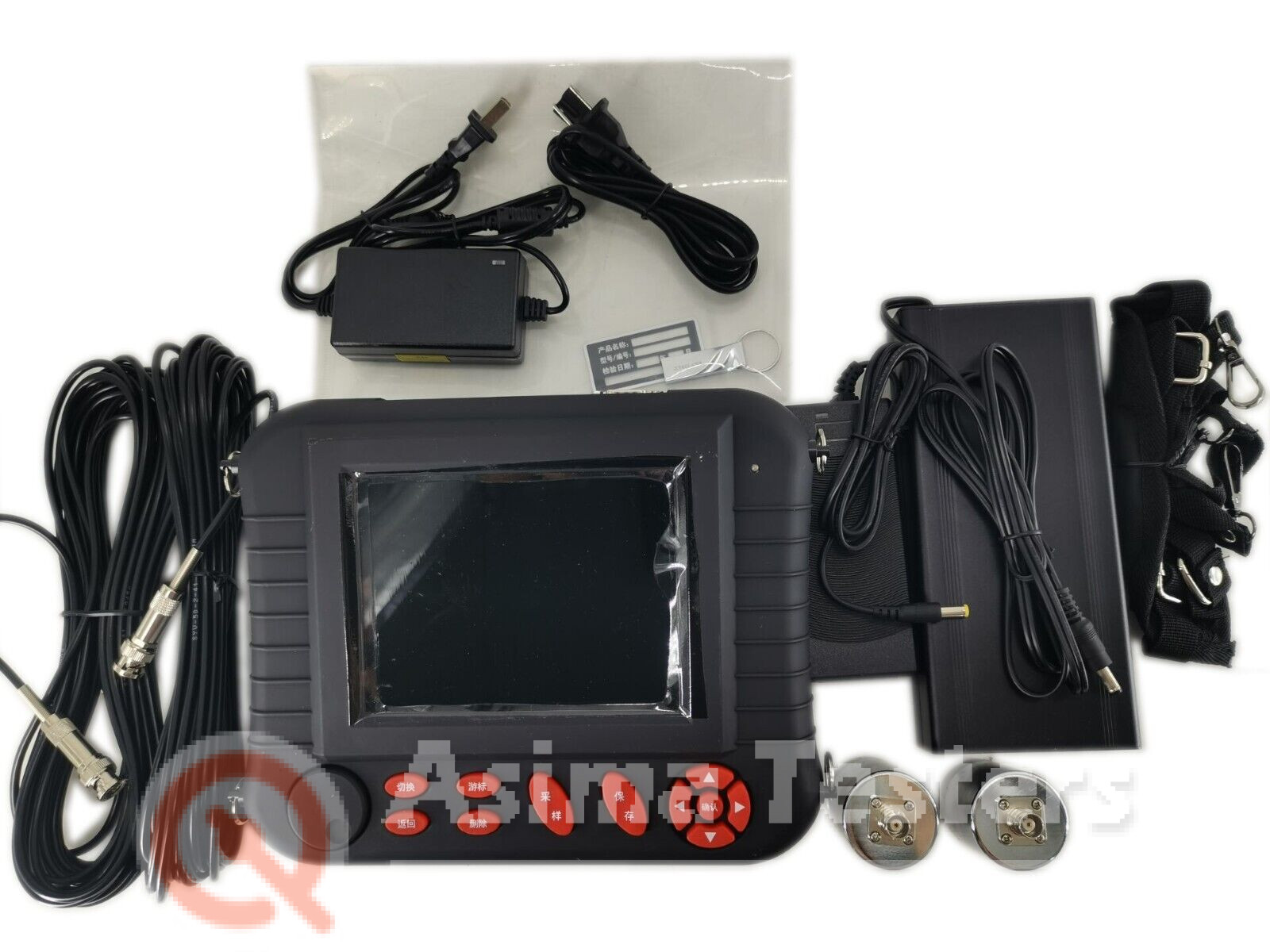

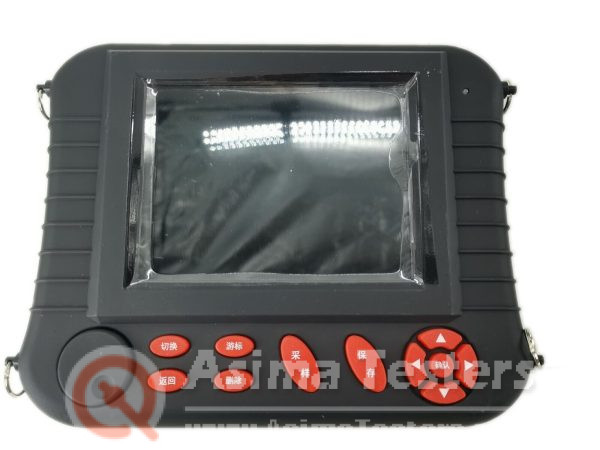

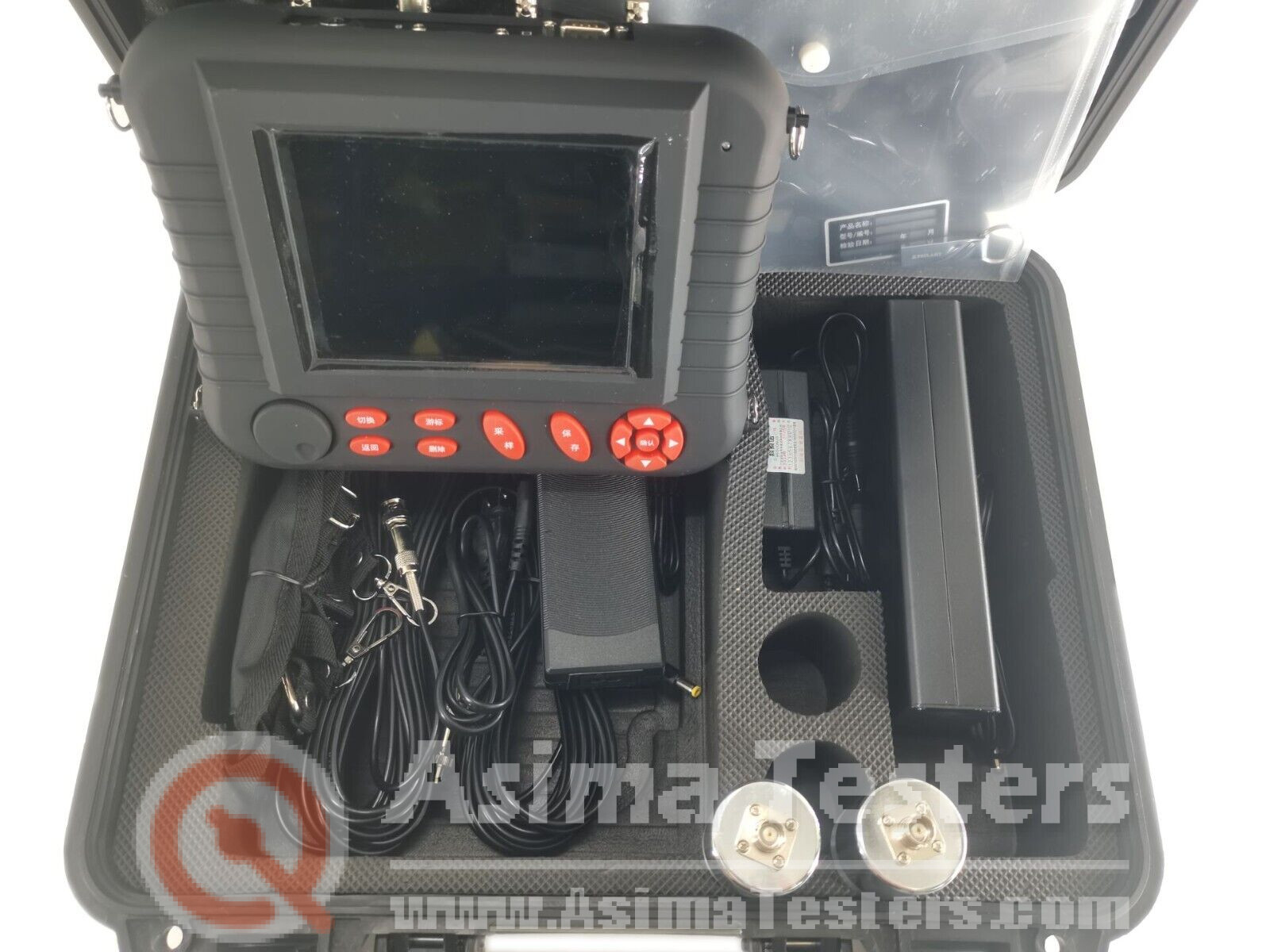

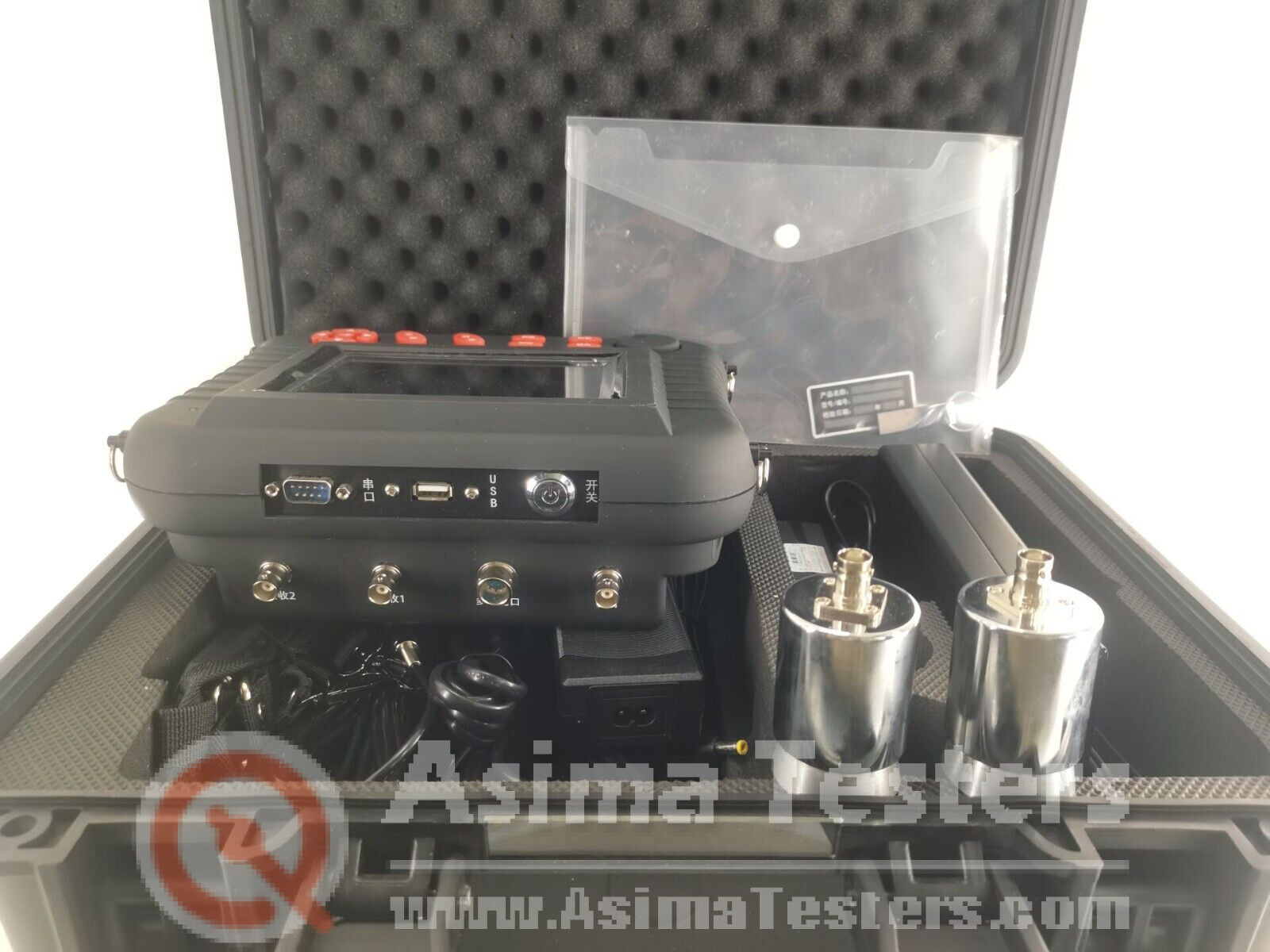

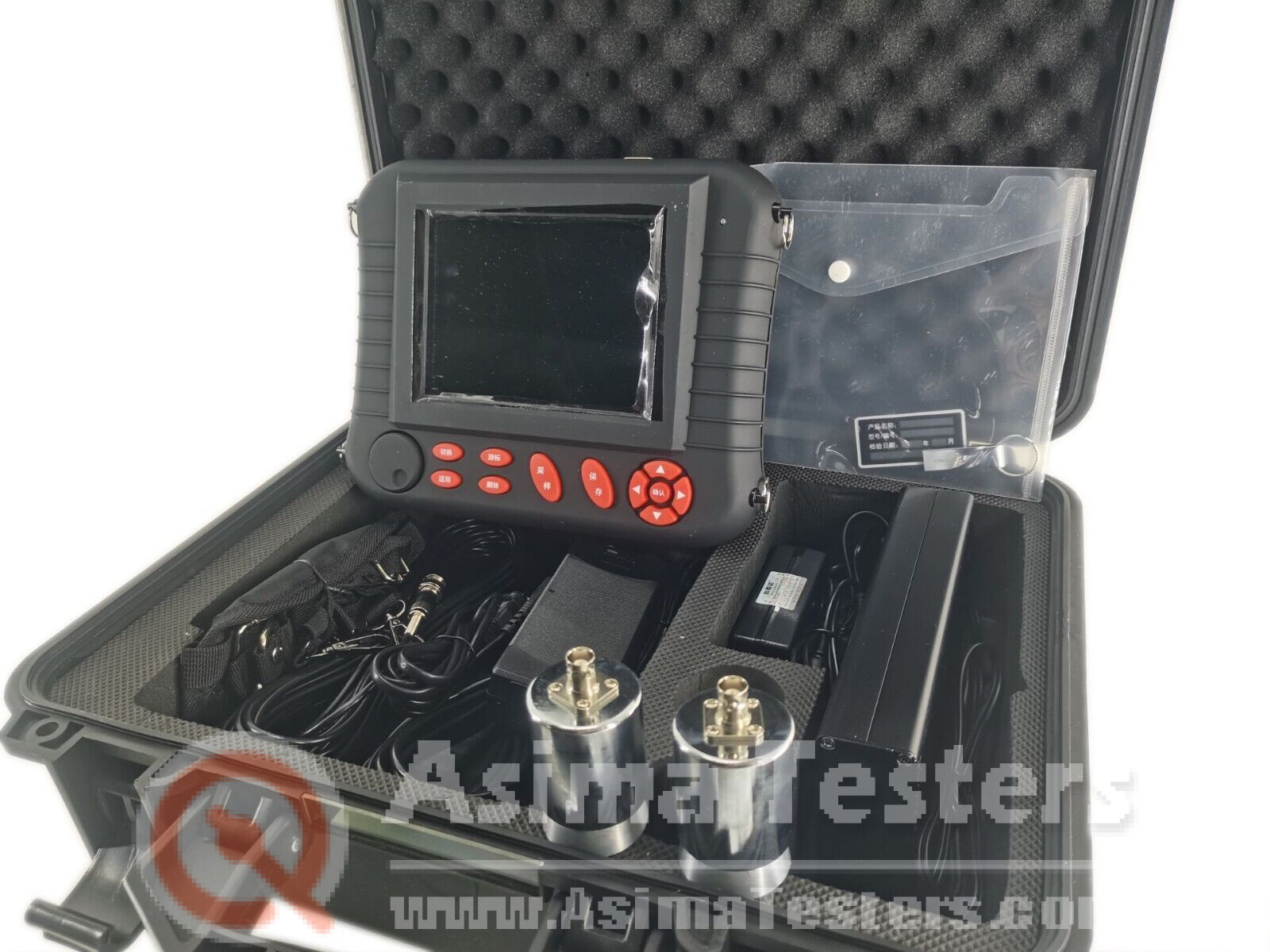

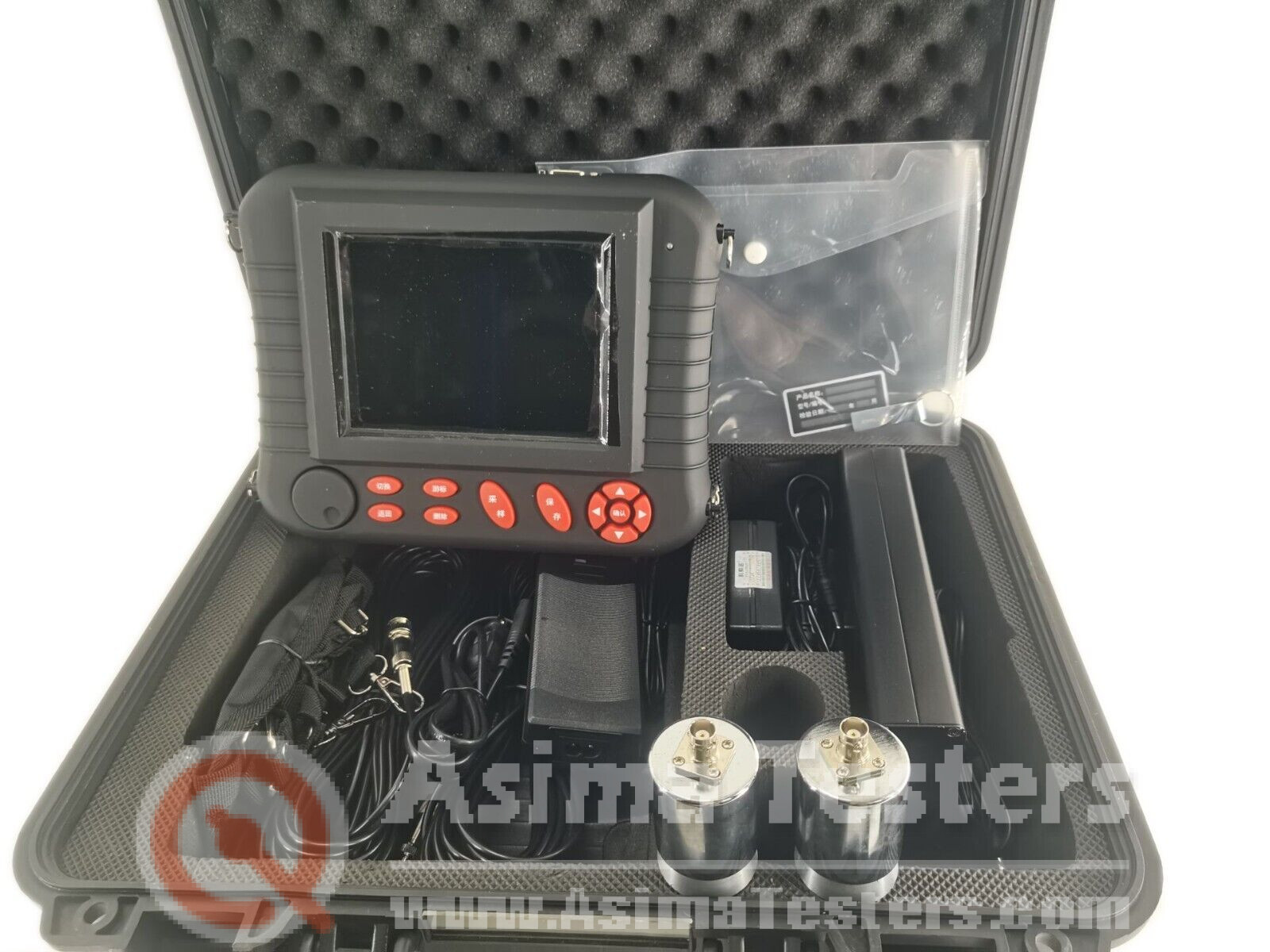

Including: mainframe, plane transducer, signal line, manual, software, instrument case, etc..
