Brand New Fluke 810 Vibration Tester for sale

Product Description

New Fluke 810 Vibration Tester w/ Sensor & Tachometer
By employing a straightforward, step-by-step procedure to report machine defects the first time measurements are performed, without the need for previous measurement history, the Fluke 810 Vibration Tester puts you ahead of the game. Diagnoses, severity, and repair suggestions are combined to assist you in making well-informed maintenance choices and prioritizing the most important issues.

Analysis for: Motors, fans, blowers, belts and chain drives, gearboxes, couplings, centrifugal pumps, piston pumps, sliding vane pumps, propeller pumps, screw pumps, rotary thread/gear/lobe pumps, piston compressors, centrifugal compressors, screw compressors, closed coupled machines, spindles.

Use the Fluke 810 Vibration Tester to:

• Troubleshoot problem equipment and understand the root cause of failure
• Survey equipment before and after planned maintenance and confirm the repair
• Commission new equipment and ensure proper installation
• Provide quantifiable proof of equipment condition and drive investment in repair or replacement
• Prioritize and plan repair activities and operate more efficiently
• Anticipate equipment failures before they happen and take control of spare parts inventories
• Train new or less-experienced technicians and build confidence and skill across the team

Features and benefits

• On-board identification and location of the most common mechanical faults (bearings, misalignment, unbalance, looseness) focus maintenance efforts on root cause, reducing unplanned downtime
• Fault severity scale with four severity levels help you prioritize maintenance work
• Repair recommendations advise technicians on corrective action
• On-board context sensitive help provide real-time tips and guidance to new users
• 2 GB expandable on-board memory provides enough space for your machinery’s data
• Self-test function ensures optimal performance and more time on the job
• Laser tachometer for accurate machine running speed promotes confident diagnoses
• Tri-axial accelerometer reduces measurement time by 2/3 over single axis accelerometers
• Viewer PC Software expands data storage and tracking capacity

Specifications

Diagnostic specifications:

• Standard faults: Unbalance, looseness, misalignment and bearing failures
• Machine rotational speed range: 200 rpm to 12000 rpm

Electrical specifications:

• Ranging: Automatic
• A/D converter: 4 channel, 24 bit
• Usable bandwidth: 2 Hz to 20 kHz
• Sampling: 51.2 Hz
• Sampling rate: 2.5 kHz to 50 kHz
• Dynamic range: 128 dB
• Signal to noise ratio: 100 dB
• FFT resolution: 800 lines
• Spectral windows: Hanning
• Frequency units: Hz, orders, cpm
• Amplitude units: in/sec, mm/sec, VdB (US), VdB
• Non-volatile memory: SD micro memory card, 2 GB internal + user accessible slot for additional storage

General specifications:

• Dimensions (HxDxW): 18.56 cm x 7.00 cm x 26.72 cm (7.30 in x 2.76 in x 10.52 in)
• Weight (with battery): 1.9 kg (4.2 lb)

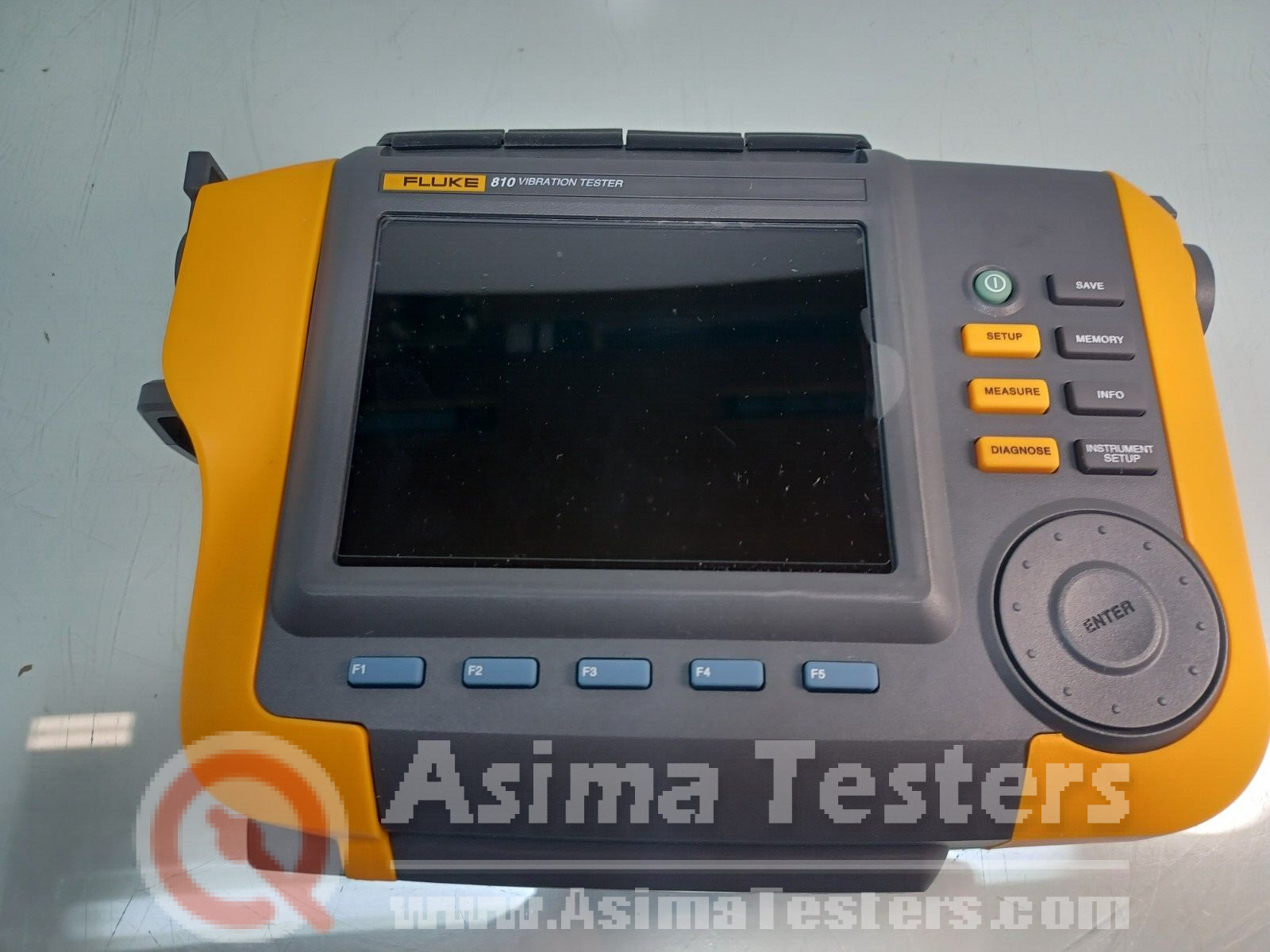

• Display: ¼ VGA, 320 × 240 Color (5.7 inch diagonal) TFT LCD with LED backlight

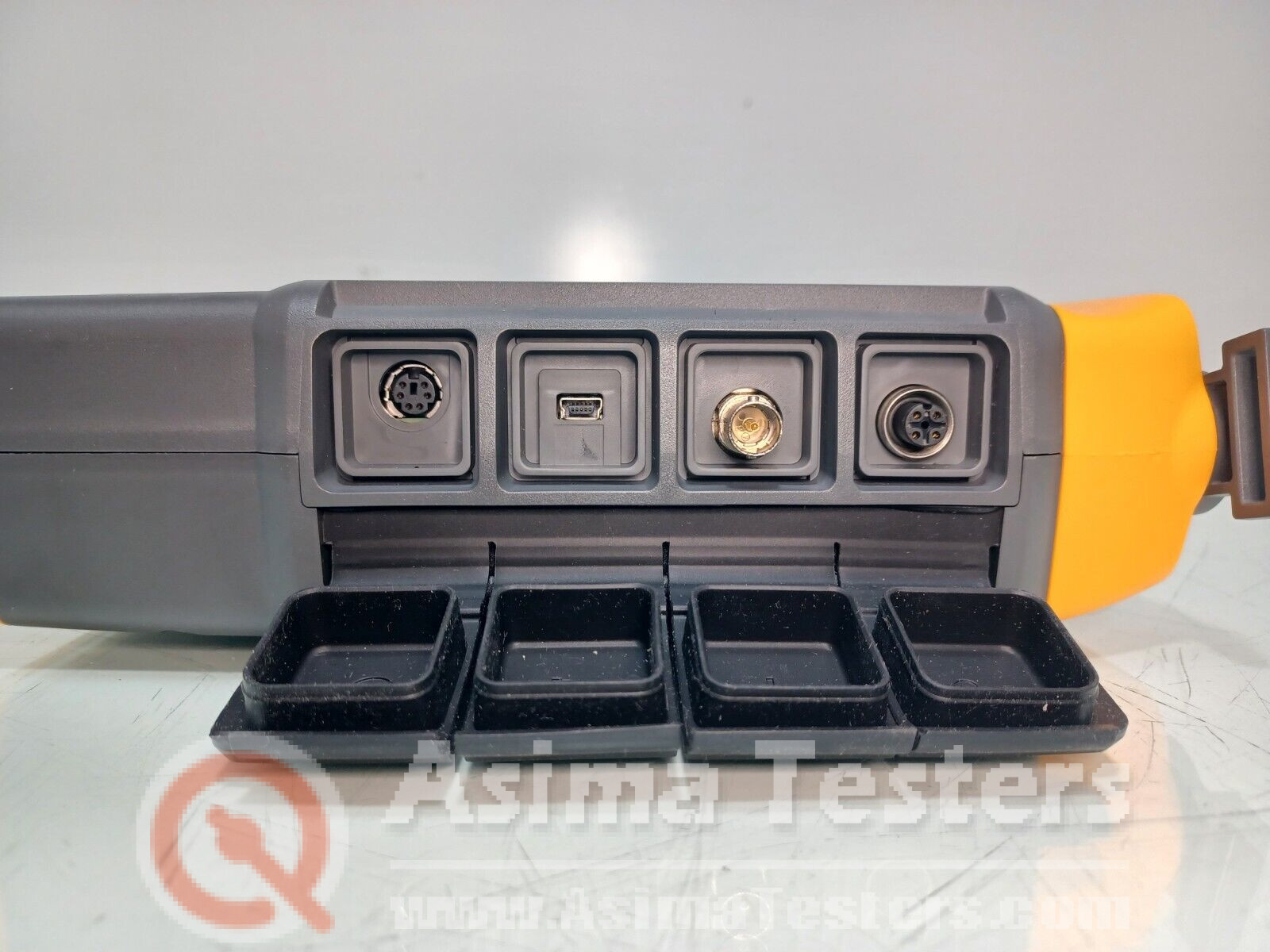

• Triaxial sensor connection: 4 pin M12 connector
• Single axis sensor connection: BNC connector
• Battery type: Lithium-ion, 14.8 V, 2.55 Ah
• Input voltage: 100 Vac to 240 Vac
• Input frequency: 50/60 Hz

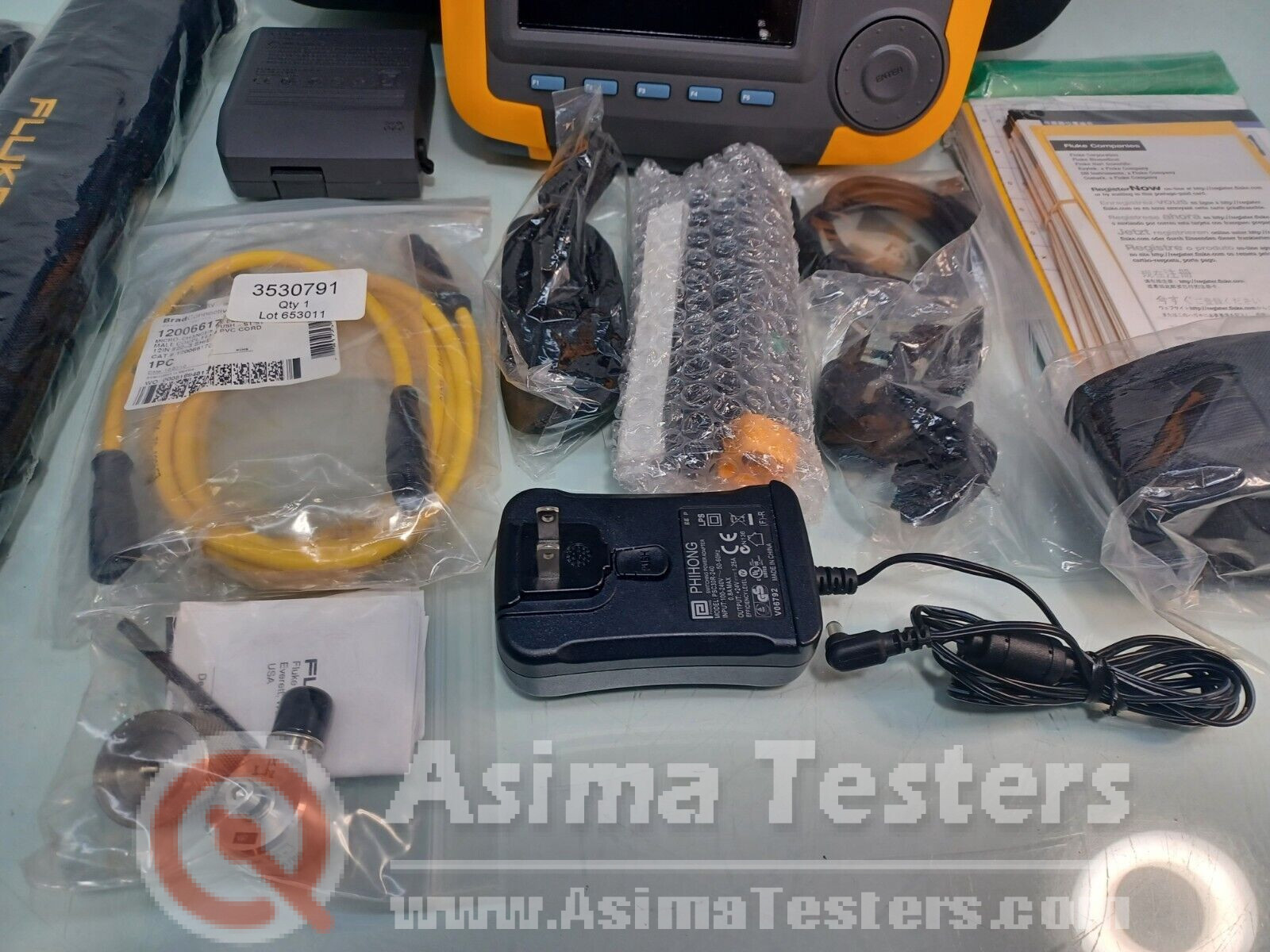

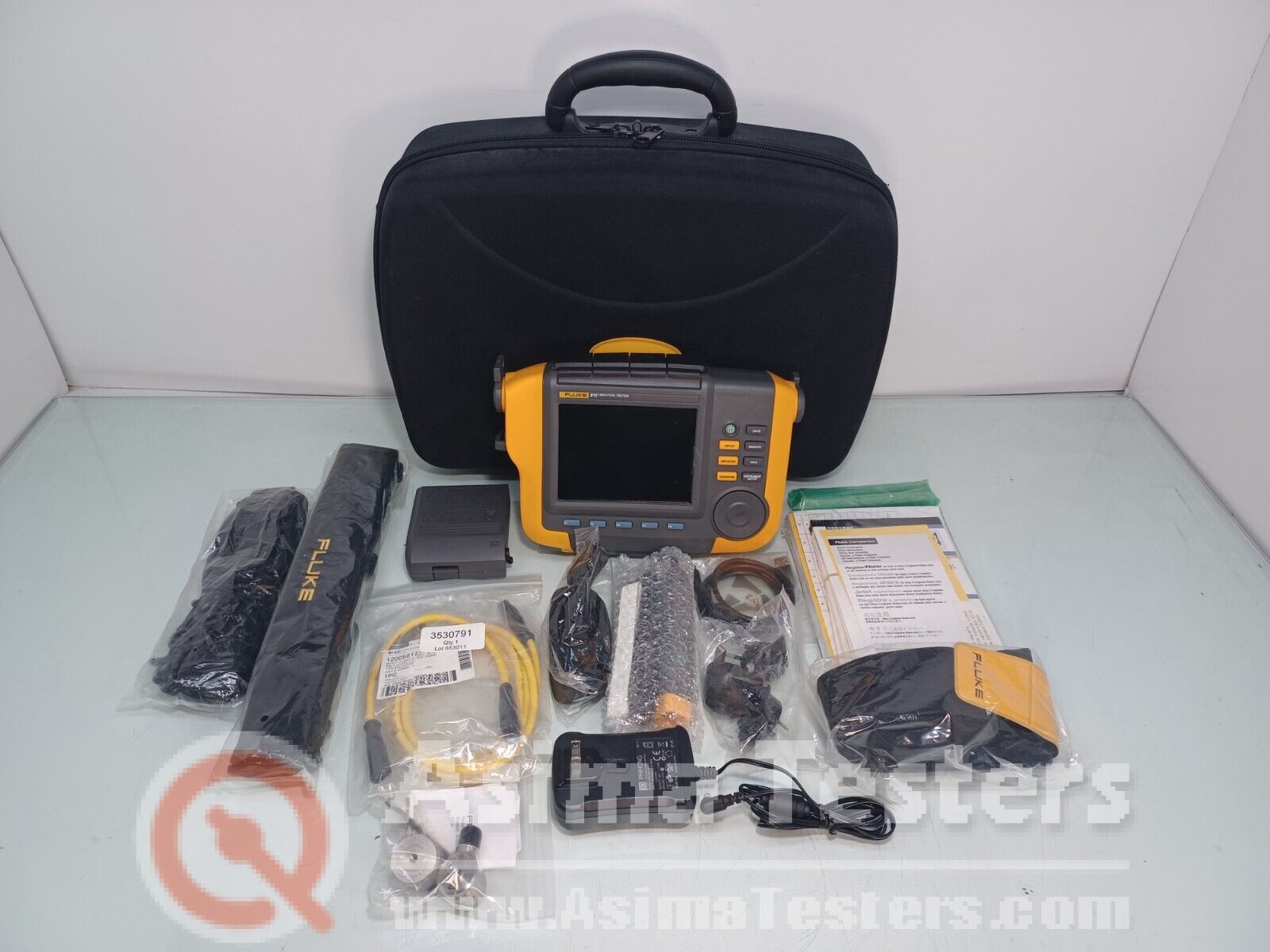

NEW Fluke 810 Vibration Tester w/ Sensor & Tachometer Accessories:

• Hard Carry Case
• Hang Strap
• Power Adapter
• Smart battery pack
• Sensor magnet mount
• Sensor quick disconnect cable
• Sensor mounting pads
• Manuals and documentation
• 810 Sensor
• Laser Tachometer
• Mini USB to USB Cord
• Tachometer Pouch
• 90-Days warranty.
