BEAMEX MC5 MULTIFUNCTION DOCUMENTING CALIBRATOR

Product Description

BEAMEX MC5 MULTIFUNCTION DOCUMENTING CALIBRATOR EXT600 PGXH PV210 PUMP PELI 1550

BEAMEX MC5 MULTIFUNCTION DOCUMENTING CALIBRATOR CAPABILITIES FOR PRESSURE, TEMPERATURE, ELECTRICAL AND FREQUENCY SIGNALS.

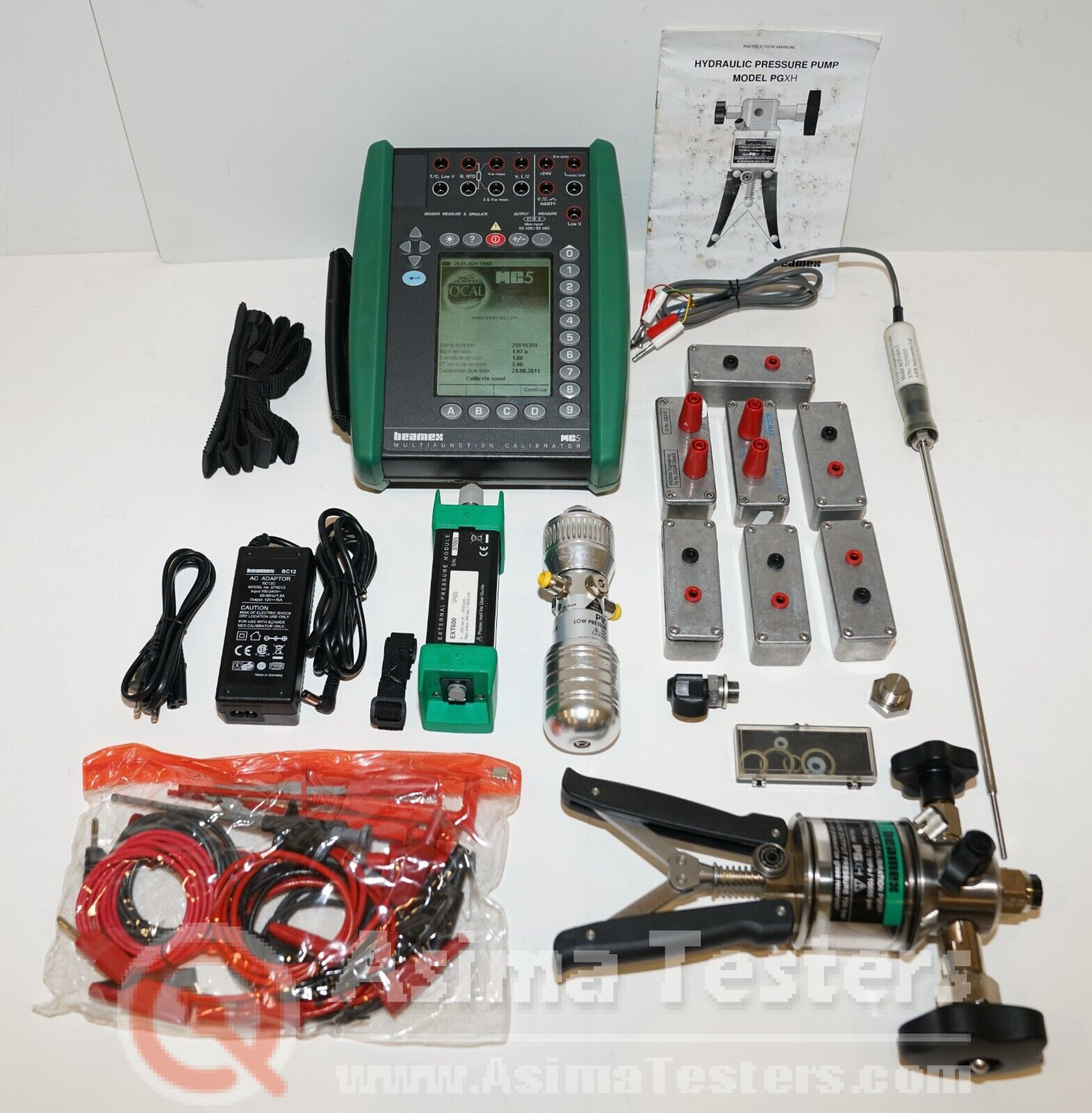

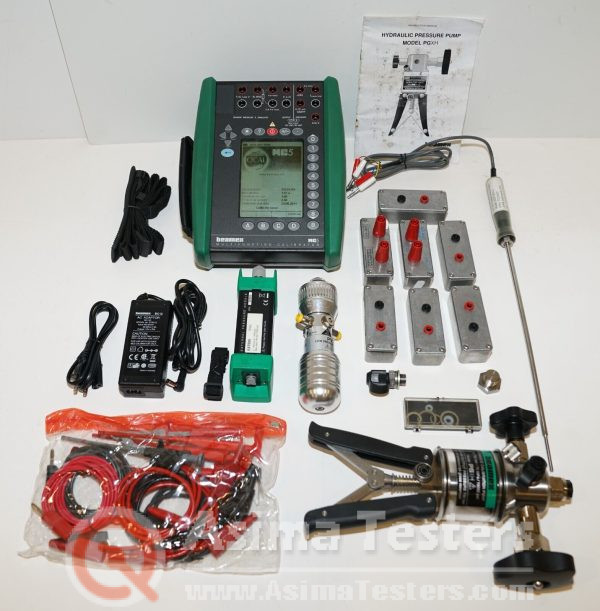

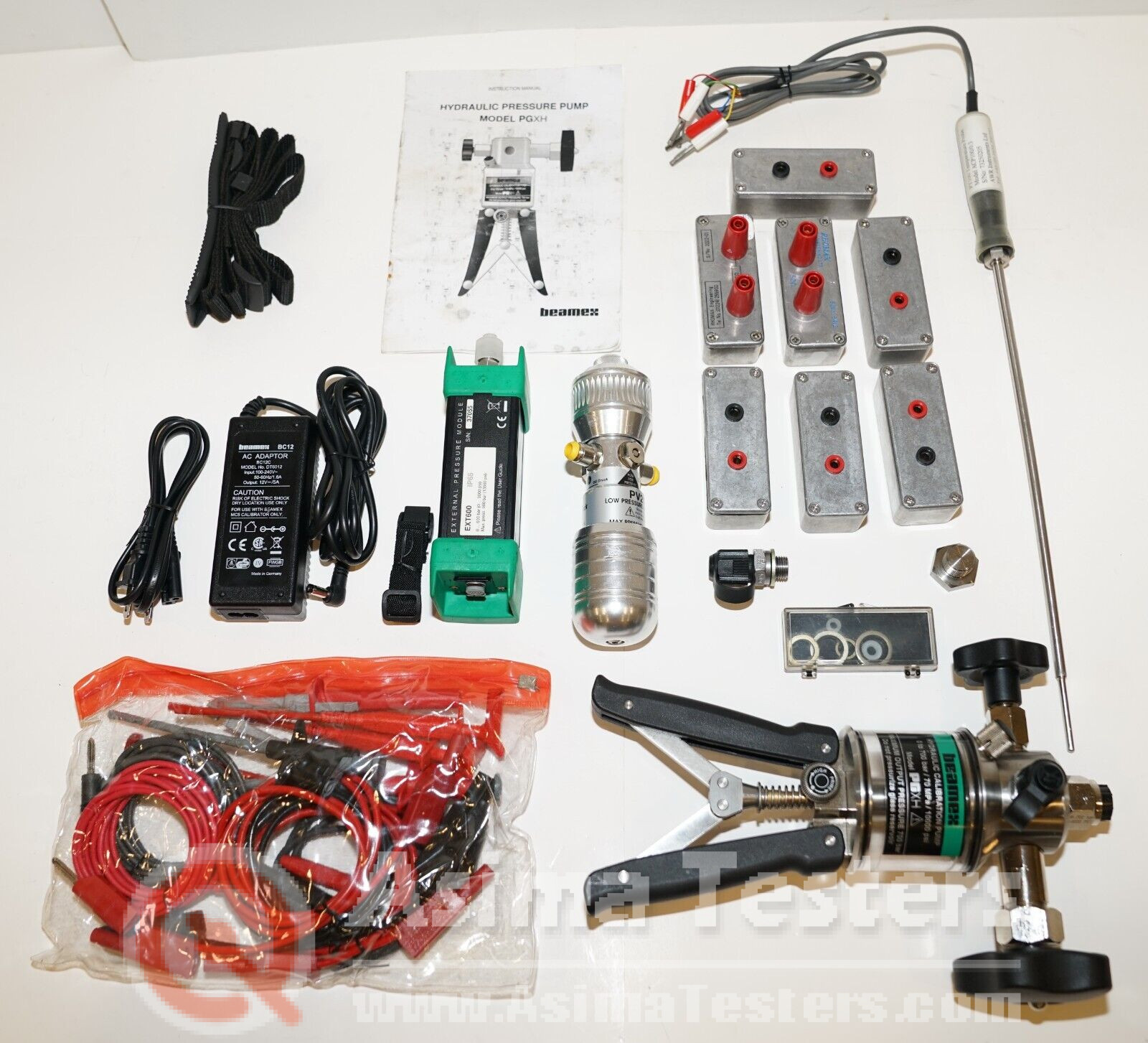

THIS UNIT COMES WITH THE FOLLOWING ITEMS:

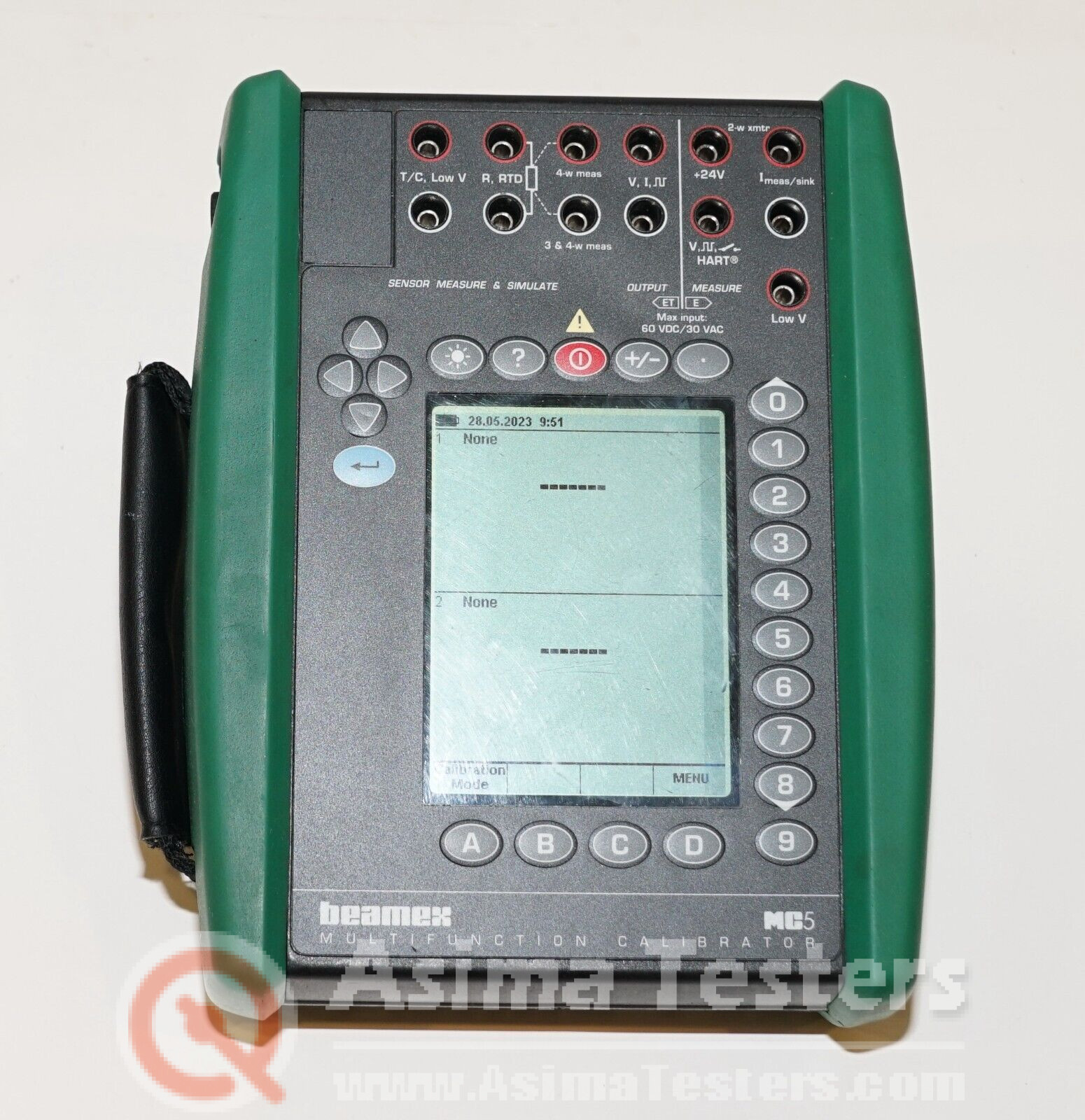

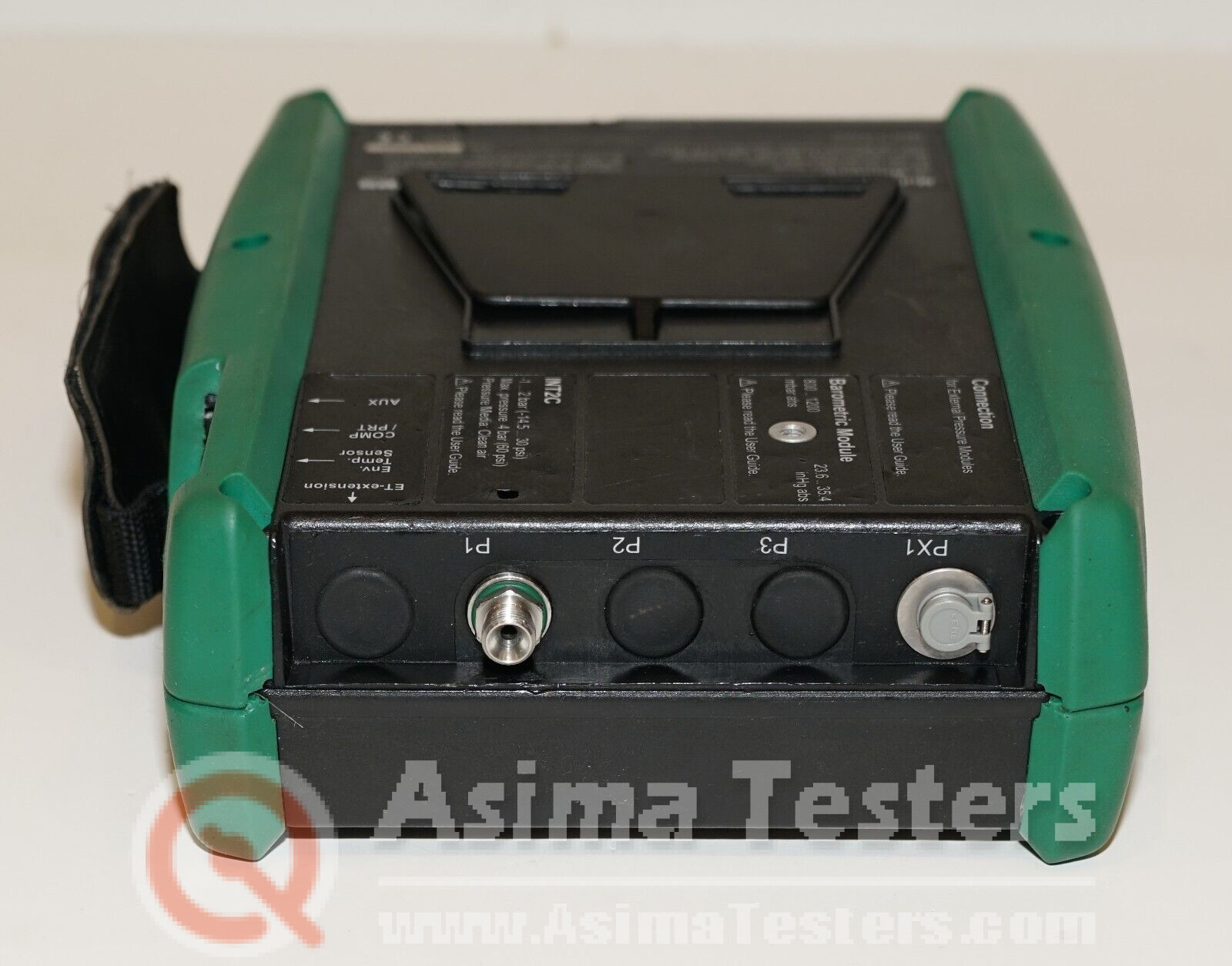

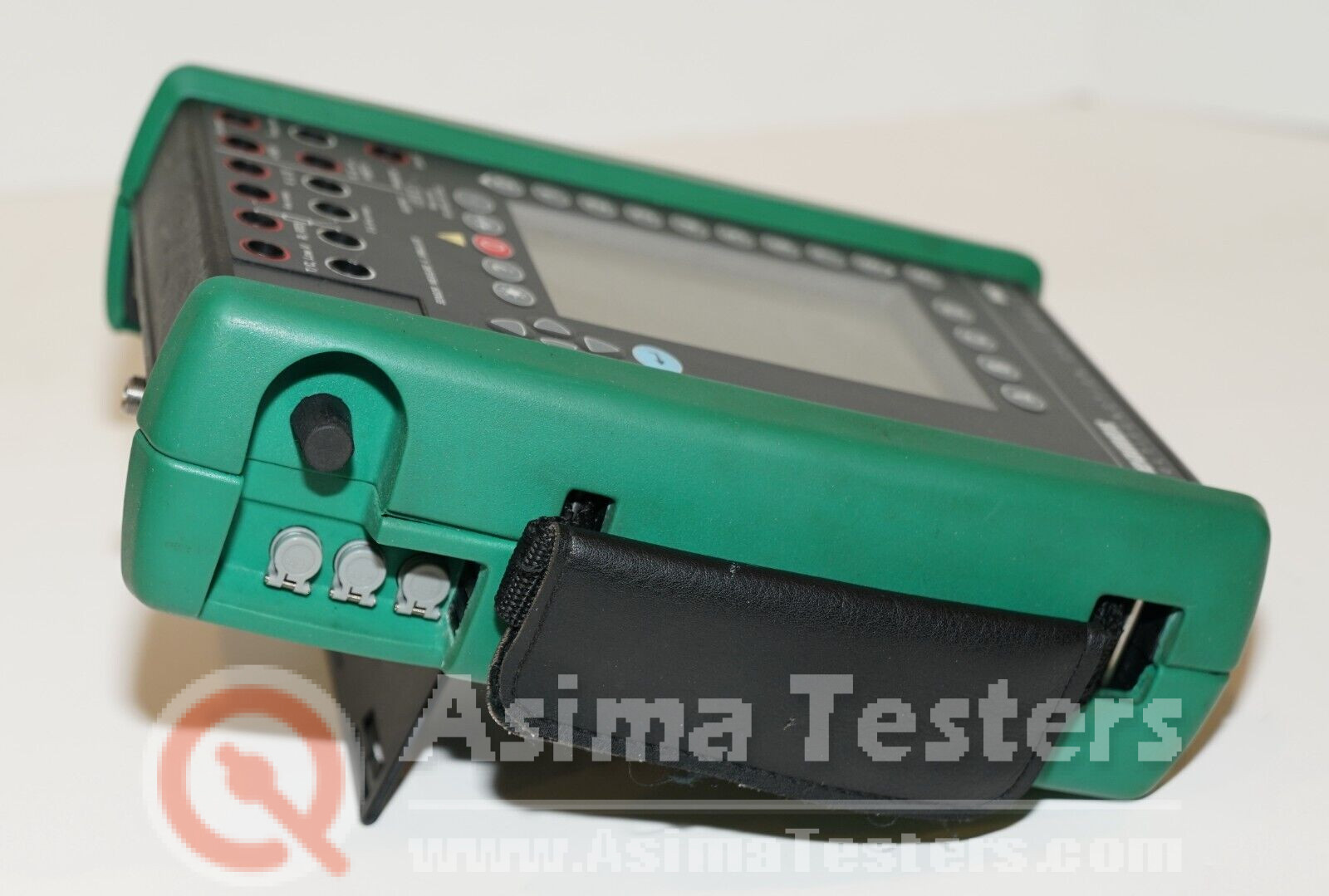

• BEAMEX MC5 MULTIFUNCTION CALIBRATOR WITH BAROMETRIC MODULE 800-1200 MBAR ABS, 23.6 TO 35.4 INHG ABS & INT2C INTERNAL MODULE -1 TO 2 BAR (-14.5 TO 30 PSI) MAX PRESSURE 4 BAR (60 PSI) FOR CLEAN AIR
• BEAMEX EXT600 EXTERNAL PRESSURE MODULE, 0 TO 600 BAR, 0 TO 9000 PSI, MAX PRESS 900BAR, 13500PSI

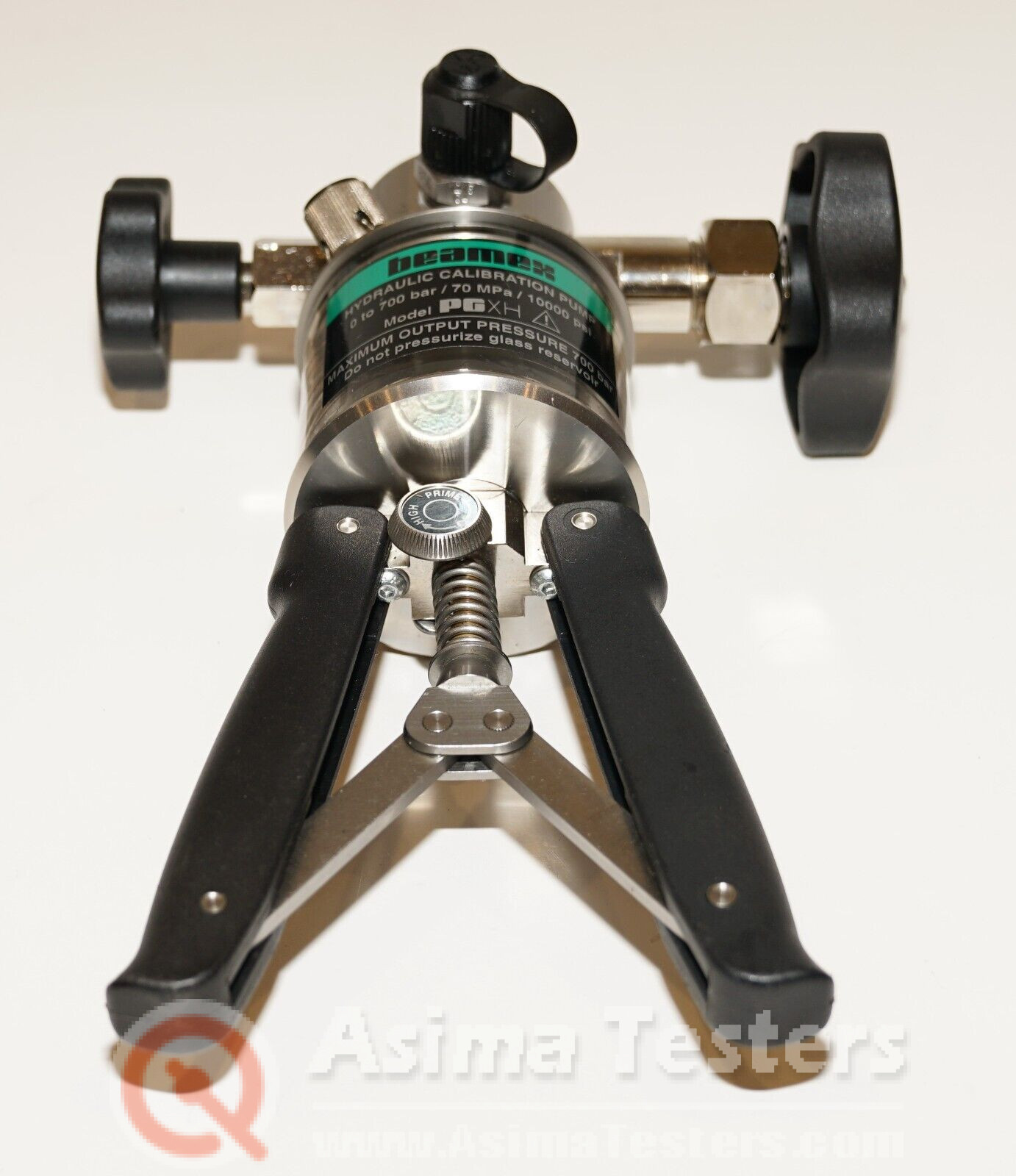

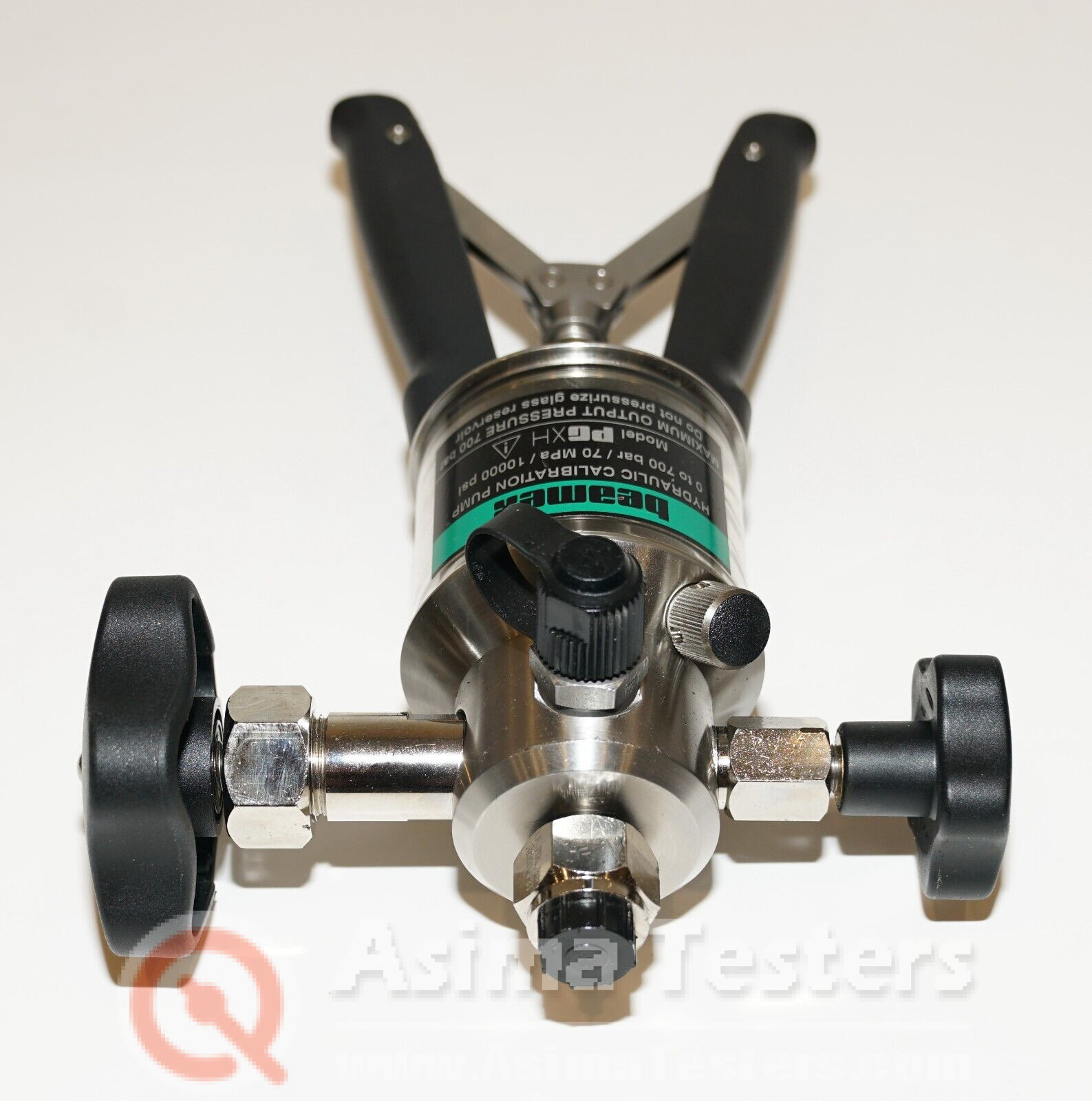

• BEAMEX PGXH HYDRAULIC CALIBRATION PUMP, 0 TO 700 BAR / 70MPA / 10000 PSI

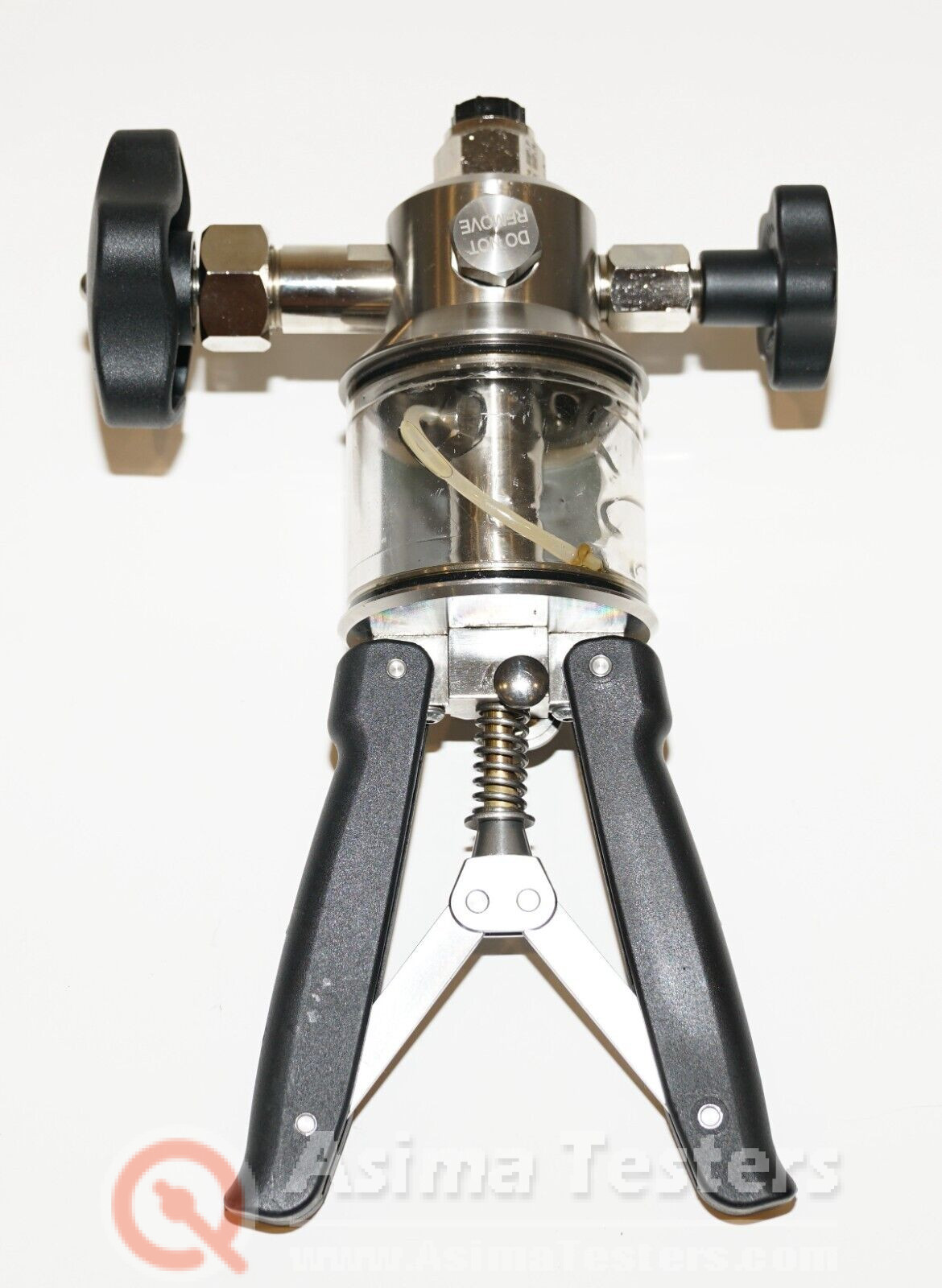

• GE DRUCK PV210 LOW PRESSURE HAND PUMP, MAX PRESSURE 3 BAR / 45 PSI

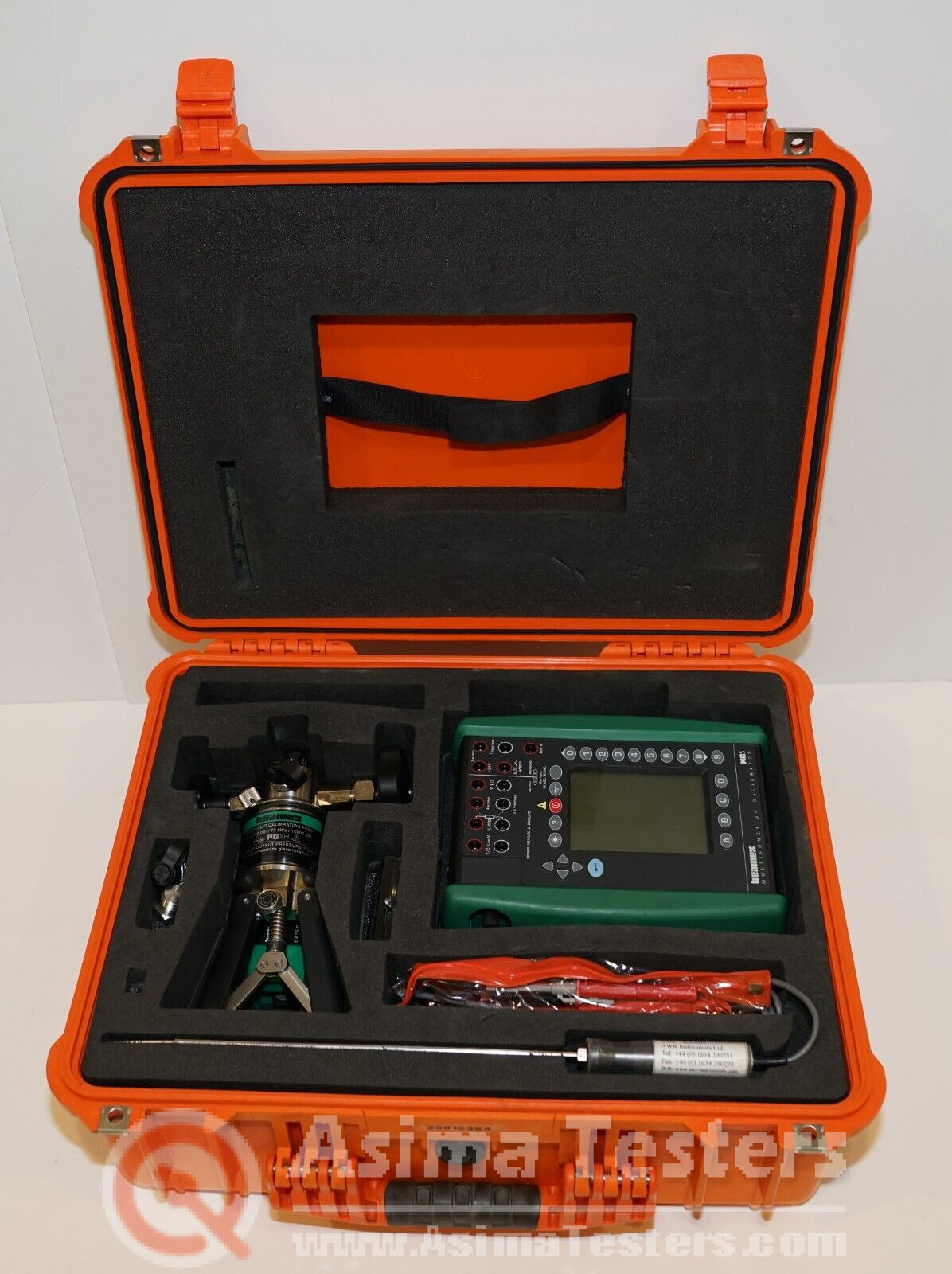

• PELICAN PELI 1550 HARD CARRYING CASE BUILT FOR BEAMEX
• RHOMAX ENGINEERING 50 OHM RESISTORS/DUMMY LOADS X 7
• AWR INSTRUMENTS LTD PT100 ACP100/0.3 TEMPERATURE PROBE

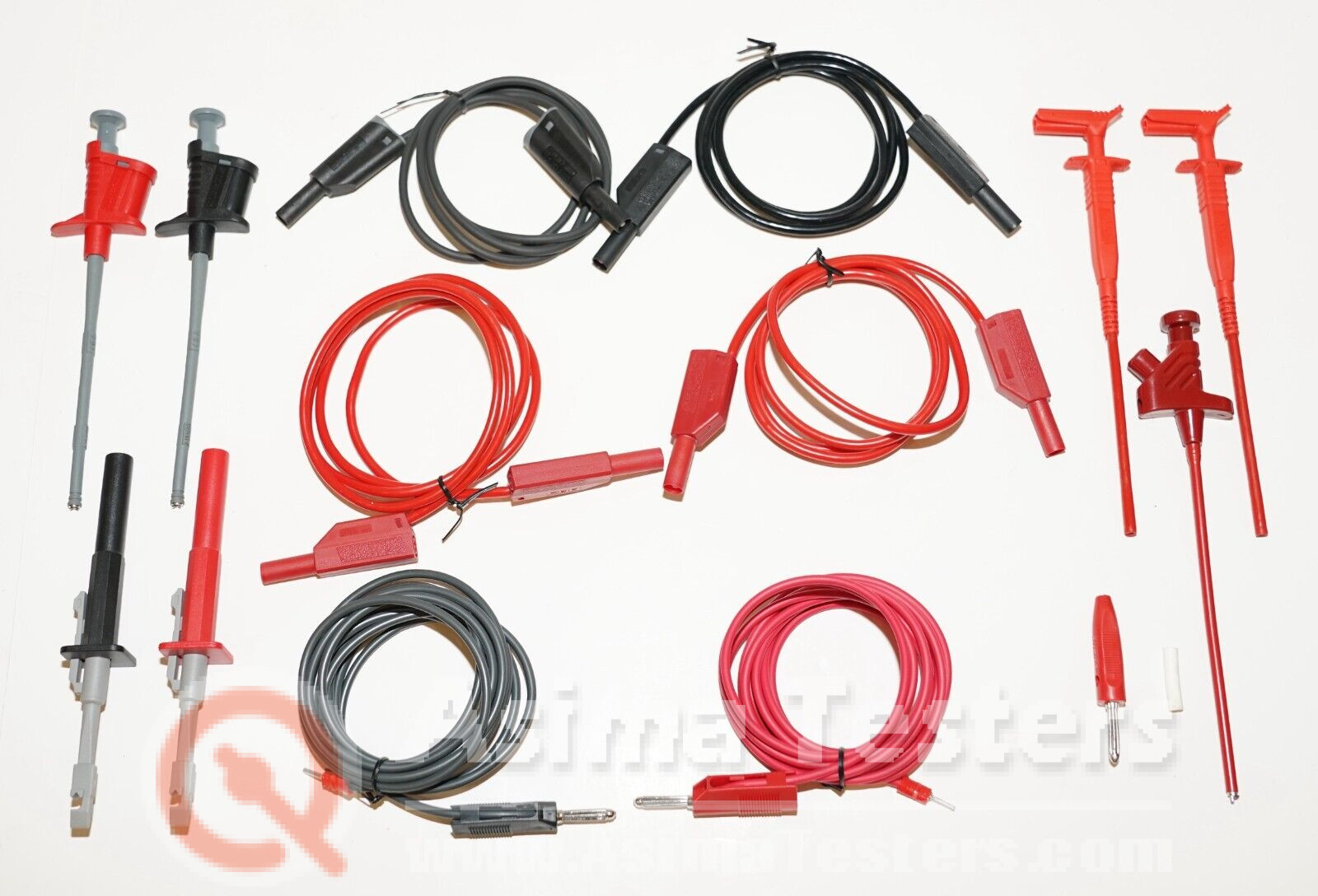

• WITH 14 ASSORTED PROBES & LEADS
• BEAMEX BC12 AC ADAPTER

Accuracy guaranteed

• The MC5 is a high accuracy calibrator. Each MC5 calibrator was delivered with a traceable, accredited calibration certificate.

Made for tough use

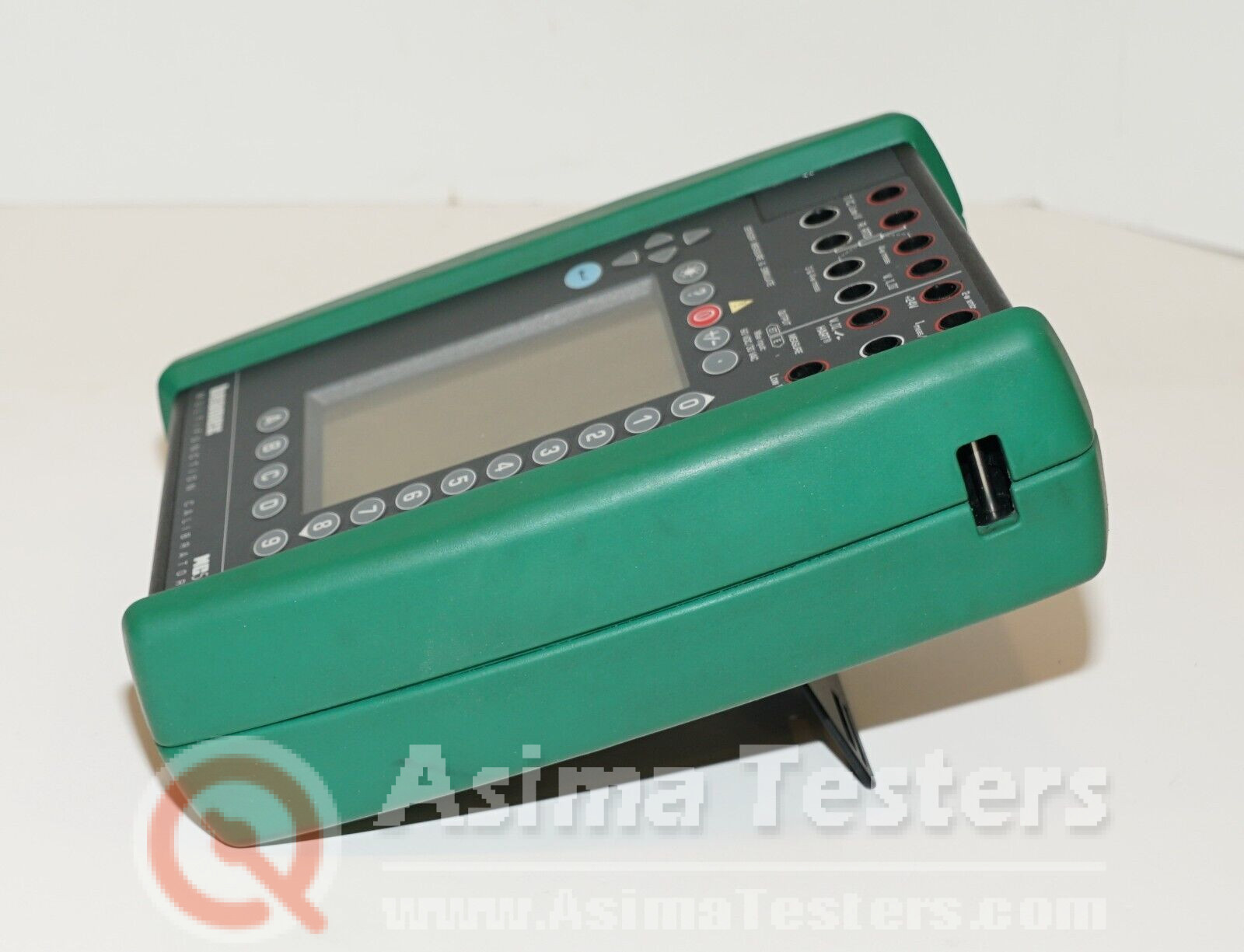

• The MC5 has IP65-rated robust casing with integrated impact protectors.

Modularity means versatility

• The modular construction of MC5 provides flexibility.
• For instance, when the MC5 was still in production, a customer could buy it as a pressure or temperature stand-alone calibrator, and then later expand it into a data-logging, documenting multifunction calibrator.

Communication with calibration software

• Using the MC5 together with calibration software provides you with a complete documenting calibration system that produces calibration certificates automatically.
• Internal pressure modules
• External pressure modules
• RTD measurement / simulation
• Resistance measurement / simulation
• TC measurement / simulation
• Current measurement / generation
• Voltage measurement / generation
• Low voltage measurement / generation
• Frequency measurement / generation
• Pulse counting / generation
• Switch testing
• PRT sensor customization functionality
• Optional Communication with software
• Optional HART® communication
• Optional Multichannel datalogging
• Foundation Fieldbus H1 or Profibus PA communication

Usability

• Large graphical display
• Multilingual
• Menu-based interface
