Agilent/Keysight N5193A UXG X-Series Agile Signal Generator 20GHz

Product Description

Agilent/Keysight N5193A UXG X-Series Agile Signal Generator 20GHz

• Brand: Agilent/Keysight
• Options: 520/AT1/CC1/EP1/FR1/PM1/SS2/UNT
• Type: Signal Generator
• MPN: N5193Amodel: N5193A
• Configuration: onfig-02
• 520 – Frequency range, 10 MHz to 20 GHz
• AT1 – Add mechanical + solid state attenuator assembly
• CC1 – 100-pin I/O interface (for binary input)
• EP1 – Enhanced phase noise
• FR1 – 1 Hz frequency resolution
• PM1 – Pulse modulation
• SS2 – 180 ns PDW update rate or 370 ns latency
• UNT – AM, FM, phase modulation, LF output, and narrowband chirp

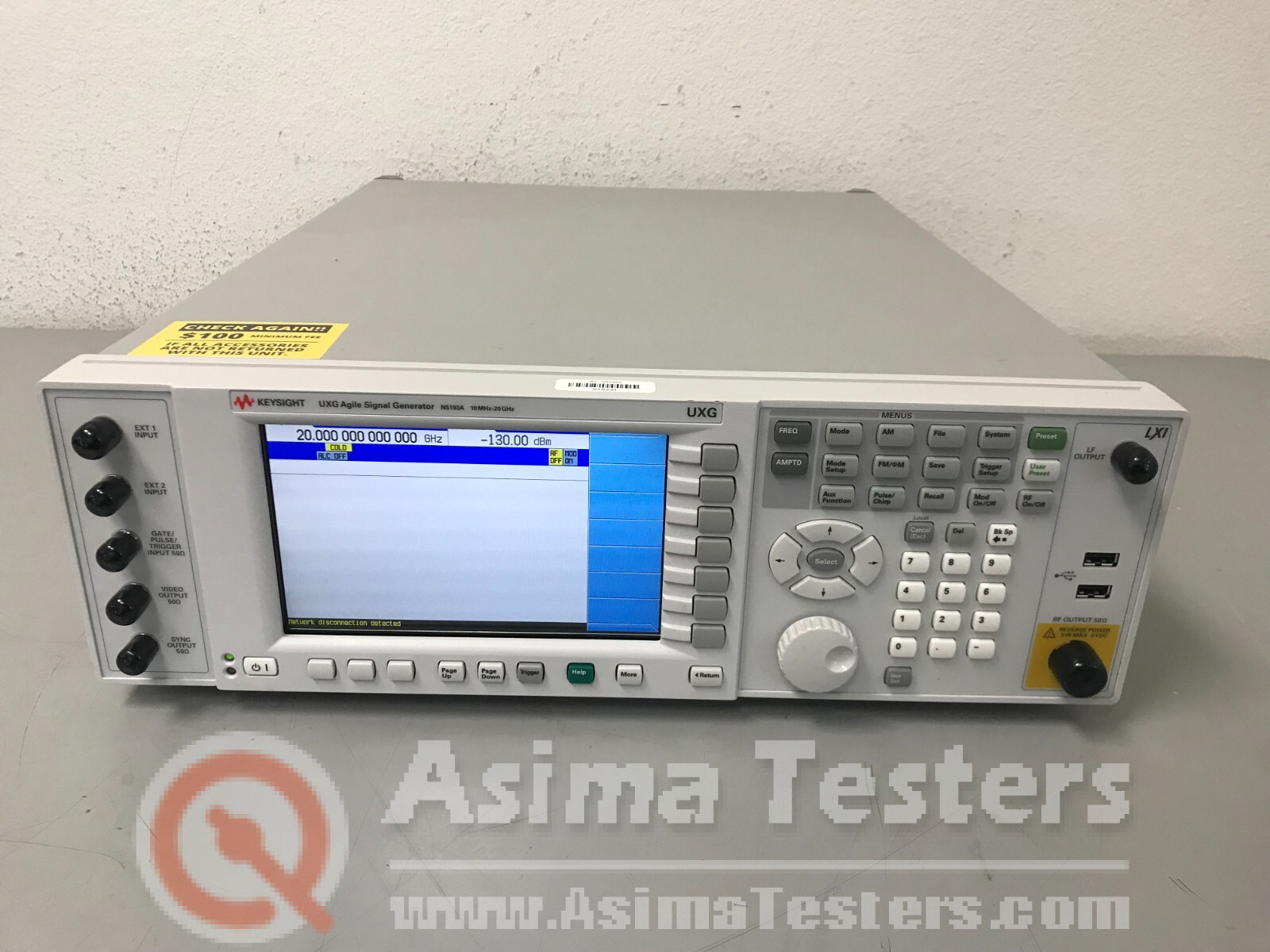

KEYSIGHT N5193A

Better testing done sooner equals deeper confidence in EW system performance. The Keysight N5193A UXG Agile Signal Generator lets you create complex scenarios when you need them. Take it off the shelf, and the UXG is a powerful building block, whether you want a dependable LO or a scalable threat simulator. By blurring the lines between analog and vector technologies, the UXG lowers the barriers between new intelligence and up-to-date signal scenarios. Generate increasingly complex simulations with the Keysight N5193A UXG and get closer to reality.

Cover a wide range of radar, EW, and antenna-test requirements up to 40 GHz.
Accurately simulate complex signal scenarios with fast switching, phase coherency, and extensive pulse-modulation capabilities.

Update frequency, amplitude, and phase in as little as 180 ns.

– Generate wide chirps that are 10 to 25 percent of carrier frequency

– Create pulses as narrow as 10 ns with 3 ns rise/fall times and 90 dB on/off ratio

– Use pulse descriptor words (PDWs) to generate long pulse trains and individually control pulse characteristics

Use the 3U-high UXG as a slide-in replacement for legacy fast-switching sources.

Features and Specifications

Signal characteristics:
10 MHz to 20 or 40 GHz +10 dBm output power standard; optional attenuator with 80 dB agile range and -130 dBm minimum settable power 100 µs switching speed standard ≤-126 dBc/Hz typical phase noise at 10 kHz offset at 10 GHz carrier Modulation and list capabilities AM, FM, ΦM, pulse modulation, and wideband chirps 3 ns pulse rise/fall time and 10 ns pulse widths List mode and agile controller mode standard Automation and communcation interface 1000BaseT LAN, USB 2.0, and GPIB LXI compliant SCPI and IVI-COM drivers Code-compatibility with Aeroflex fast switching signal generators.
